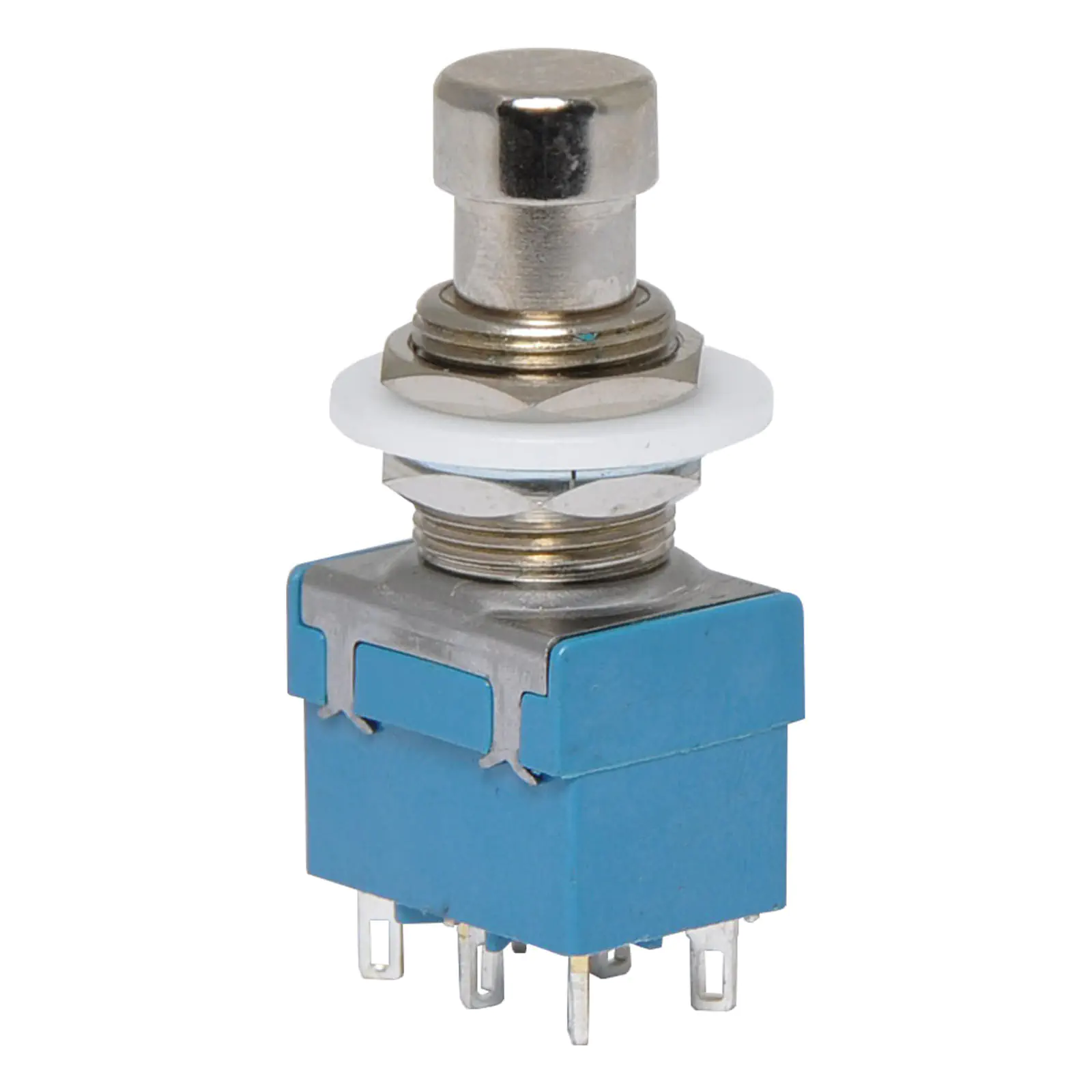

DPDT Alternate Footpad Switch

SKU: S1150A
Switch Type: DPDT Alternate Contact Rating: 4A @ 250V AC Contact Resistance: <80mΩ Mounting Hole Diam.: 12mm
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
10+ $7.59
40+ $7.00
i h

Overview

DPDT footpad switch. Alternate action.

Applications Include:

Gaming: flight simulation

Home appliances

Floor care appliances

Industrial controls

Medical and dental

Foot switch for guitar and audio equipment



Specifications:



Contact Form: DPDT

Double Pole Double Throw

Switch Function: ON-ON

Ratings: 4A @ 125VAC, 2A @ 250VAC

6-pin solder lug

Metal pushbutton switch (0.40"/10mm diameter)

Electrical life: 20,000 make and break cycles

Body color: Black

Stomp switch, foot switch

Maximum Current Rating (A): 4

Type: Push Button

Voltage Rating (AC): 250

Actuator Type: Round Button

Color - Actuator/Cap: Chrome

Number of Positions: 2

Mounting Style: Panel

Termination Style: Solderable Lug

Number of Pins: 6

Length (inch): 0.89

Width (inch): 0.71

Depth (inch): 0.75

Height (inch): 0.46

Actuator Length (inch): 0.4

Lead Spacing A (inch): 0.35

Lead Spacing B (inch): 0.35

Features: Stomp Switch

Maximum Contact Resistance: 50 mΩ

Minimum Insulation Resistance: 100 MΩ

Dielectric Strength: 1000 VAC

Electrical Life: 20,000 operations

Maximum Current Rating: 4

Details

Products specifications

Warranty 12 Months
Switches
Connection Solder Tail
Contacts DPDT
Action Alternate
