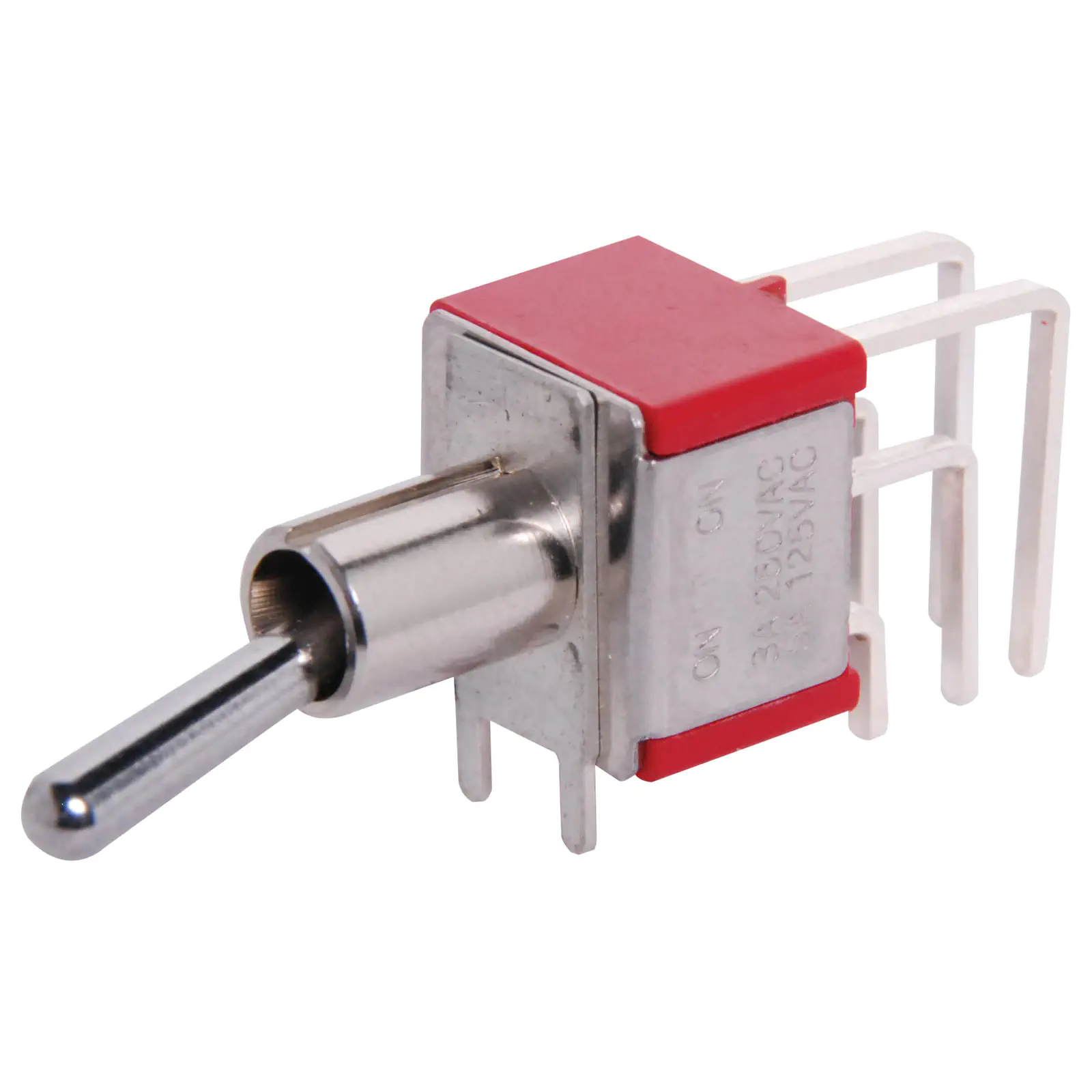

DPDT Centre Off 90 Deg. PCB Mount Mini Toggle Switch

by: Salecom
SKU: S1370
A mini centre off toggle switch in right angle orientation. DPDT contact configuration. PCB mountable.
$4.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.68
10+ $4.18
40+ $3.73
i h

Overview

The Salecom range of miniature and sub-miniature switches are pin for pin compatible with several other leading brands but at a fraction of the cost. Already many major manufacturers across Australia use the Salecom brand in preference to the more expensive makes. Salecom offers excellent value for money. Typically Salecom switches are reliable for up to 50,000 switching operations at full ratings.



Specifications:



Contact Rating: 2A @ 250V AC or 28V DC resistive load

Electrical Life: 50,000 cycles at full load

Contact Resistance: 10m Ohm max. initial at 24V DC @ 100mA

Insulation Resistance: 1,000 M Ohm min.

Dielectric Strength: 1000V RMS at Sea Level

Operating Temperature: -30°C to 85°C

Bushing: Nickel Plated Brass

Case: Melamine or Diallyl Phthalate (DAP)

Housing: Stainless Steel

Contact Material: Gold Plated Brass

End Contact: Coin Silver, Silver Plated

End Terminal: Silver Plated Brass

Centre Contact & Terminal: Silver Plated Brass

Includes 1 x star washer, 1 x flat locking washer and 2 x nuts.

Details

Products specifications

Warranty 12 Months
Switches
Size Miniature
Action Alternate
Connection PCB Mount
Contacts DPDT
