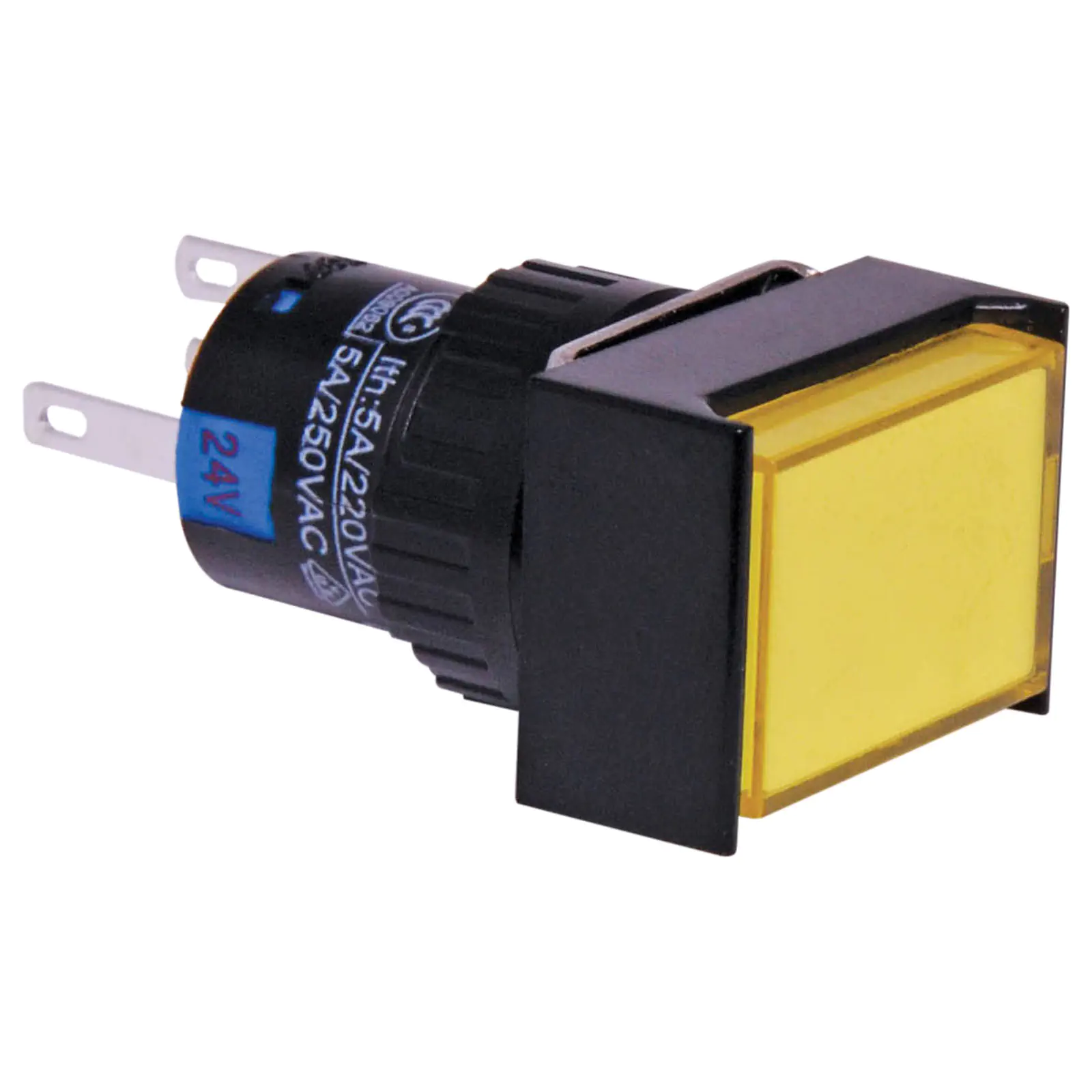

SPDT Mom. LED Yellow Solder Tail Pushbutton Switch

SKU: S1675
SPDT Momentary Action - Yellow Switch type: Momentary Body material: High grade thermoplastic Operating travel: 3.0mm Actuating force: 200-500gm Mech. lifetime: 1M operations min Electrical life: ≥50,000 operations min. Electrical rating: 250V AC
$16.32

All Prices Shown are (ex GST)

Bulk Pricing
ea $16.32
4+ $14.77
10+ $13.18
i h

Overview

SPDT yellow solder tail push button switch.





Specifications:



SPDT Momentary Action - Yellow

Switch type: Momentary

Body material: High grade thermoplastic

Operating travel: 3.0mm

Actuating force: 200-500gm

Mech. lifetime: 1M operations min

Electrical life: =50,000 operations min.

Electrical rating: 250V AC 5A

LED: 24V (inbuilt resistor)

Dielectric strength: 2kVAC, 50Hz, 1 min

Insulation resistance: =100MΩ

Panel thickness: 8mm maximum

Mounting hole diameter: 16mm

Details

Products specifications

Warranty 12 Months
Switches
Connection Solder Tail
Indicator Illuminated
Contacts SPDT
Type Panel Mount Switches
Action Momentary
