Momentary type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cove.

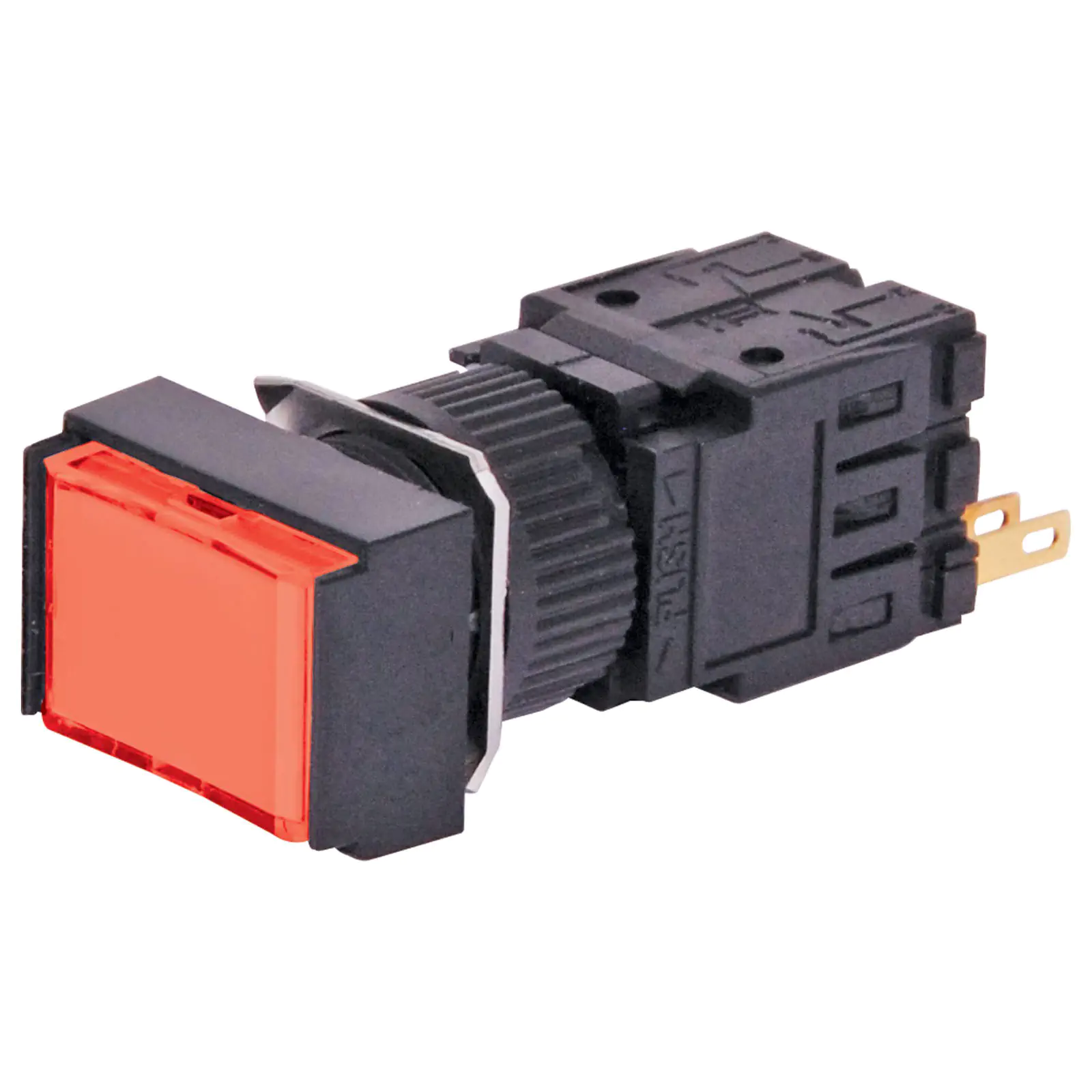

DPST Mom. Red Illuminated Solder Tail Pushbutton Switch

Name: DPST Mom. Red Illuminated Solder Tail Pushbutton Switch
SKU: S1700A
Price: 22.68 AUD
Availability: InStock

SKU: S1700A

Momentary type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cove.

$22.68

All Prices Shown are (ex GST)

Bulk Pricing

ea	$22.68
4+	$20.41
10+	$18.14

i h

Overview
Details
Warranty

Overview

Momentary type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

Accessories:

S 1795: Protective flip up switch cover.

S 1797: Globe removal & nut spanner.

S 1798: Slide on terminal insulation cover.

Globes to suit:

S 1780A 12V Globe

S 1785A 24V Globe

Specifications:

Switch Type: Momentary

Body Material: High grade thermoplastic

Operating Travel: 3.0mm

Actuating Force: 150gm

Mech. Lifetime: 1M operations min

Electrical Life: 100,000 operations min

Electrical Rating: 250V AC 4A

Dielectric Strength: 1kV AC, 50Hz, 1 min

Insulation Resistance: 100MΩ min @ 500V DC

Panel Thickness: 7mm maximum

Mounting Hole Diameter: 16mmØ

Details

Products specifications

Warranty	12 Months
Switches
Connection	Solder Tail
Indicator	Illuminated
Contacts	DPST
Type	Panel Mount Switches
Action	Momentary

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
