Alternate type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cove.

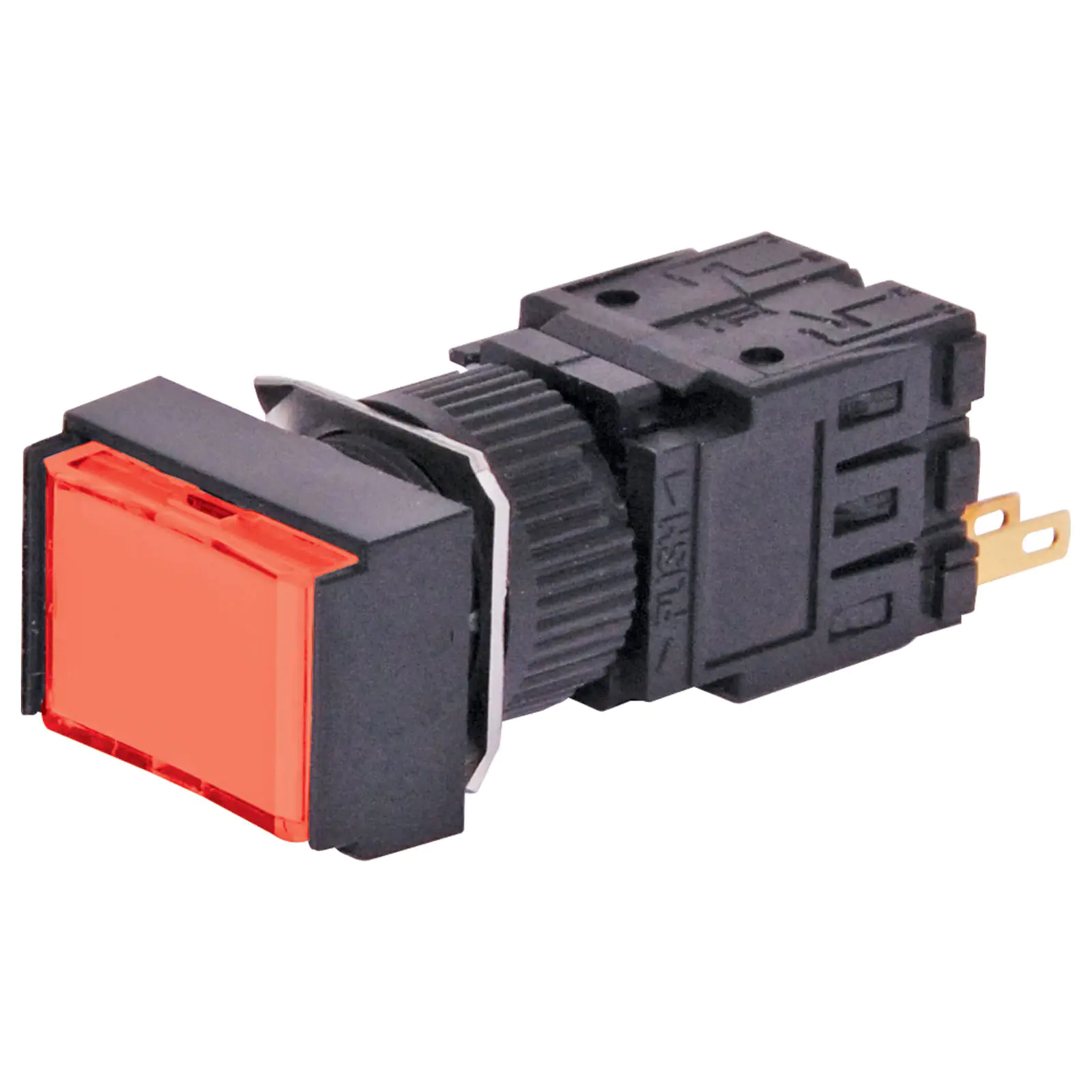

DPST Alternate Red Illuminated Solder Tail Pushbutton Switch

Name: DPST Alternate Red Illuminated Solder Tail Pushbutton Switch
SKU: S1720A
Price: 22.68 AUD
Availability: InStock

SKU: S1720A

Alternate type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved.

$22.68

All Prices Shown are (ex GST)

Bulk Pricing

ea	$22.68
4+	$20.41
10+	$18.14

i h

Overview
Details
Warranty

Overview

Alternate type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

Accessories:

S1795: Protective flip up switch cover

S1797: Globe removal & nut spanner

S1798: Slide on terminal insulation cover

Globes to Suit:

S1780A: 12V Globe

S1785A: 24V Globe

Specifications:

Switch Type: Alternate

Body Material: High grade thermoplastic

Operating Travel: 3.0mm

Actuating Force: 150gm

Mech. Lifetime: 1M operations min

Electrical life: 100,000 operations min

Electrical Rating: 250V AC 4A

Dielectric Strength: 1kV AC, 50Hz, 1 min

Insulation Resistance: 100MΩ min @ 500V DC

Panel Thickness: 7mm maximum

Mounting Hole Diameter: 16mmØ

Details

Products specifications

Warranty	12 Months
Switches
Connection	Solder Tail
Indicator	Illuminated
Contacts	DPST
Type	Panel Mount Switches
Action	Alternate
