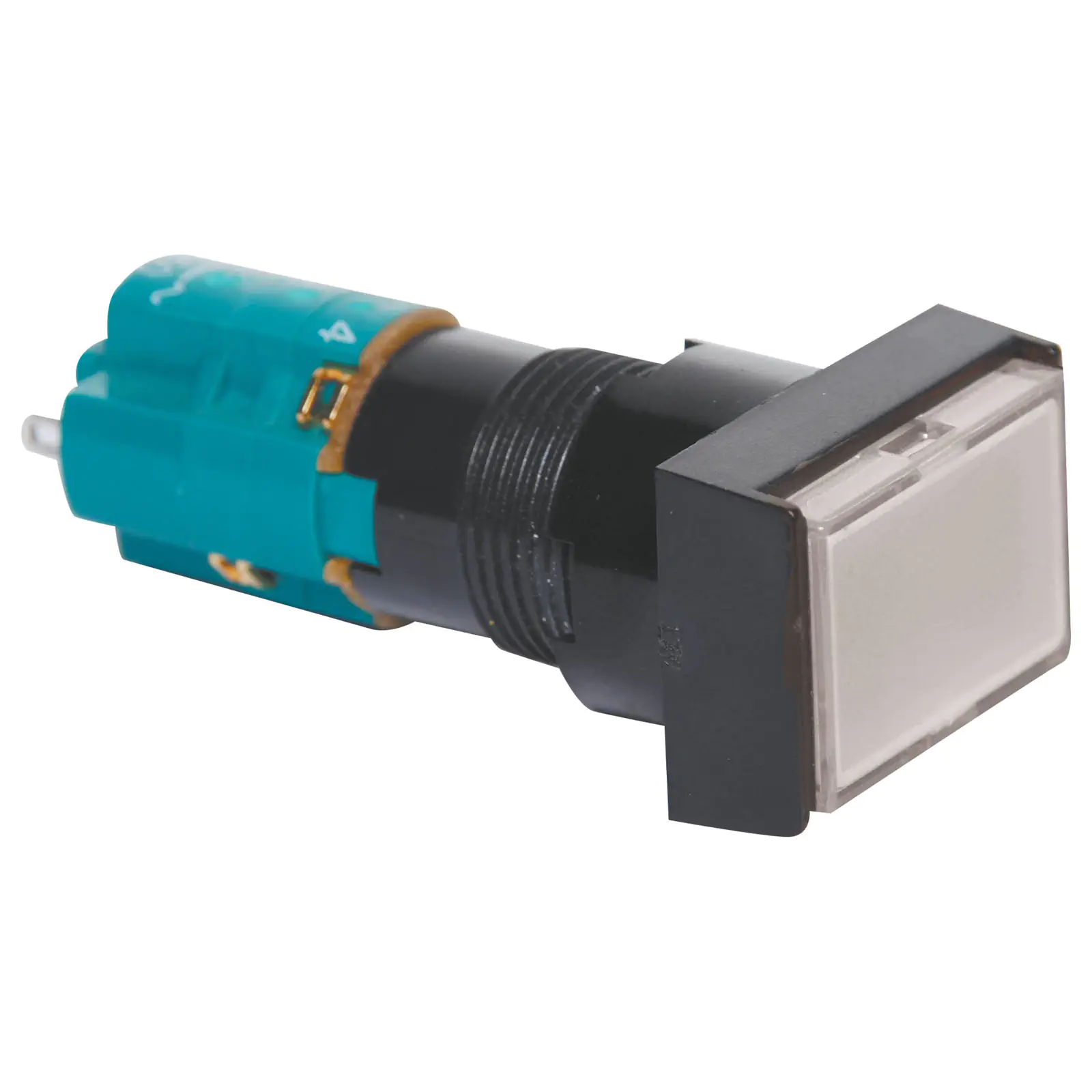

DPST Alt. White Illuminated Solder Tail Pushbutton Switch

SKU: S1726
Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved.
$15.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $15.00
4+ $13.64
10+ $12.64
i h

Overview

Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Single hole mounting.


Specifications:



Colour: White

Type: DPST

Action: Alternate

Switch System: 1 NO & 1 NC contact blocks

Body Material: High grade thermoplastic

Operating Travel: 3.0mm

Actuating Force: 150gm

Mech. Lifetime: 1 Million operations min

Electrical Lifetime: 100,000 operations min.

Electrical Rating: 250V AC 4A

Dielectric Strength: 1500V AC, 50Hz, 1 minute

Insulation Resistance: 1000MΩ min @ 500V DC

Panel Thickness: 8mm maximum

Mounting Hole Diameter: 16mm

Details

Products specifications

Warranty 12 Months
Switches
Type Panel Mount Switches
Indicator Illuminated
Action Alternate
Contacts DPST
Connection Solder Tail
