Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch.
Rated 2A @ 250V AC.

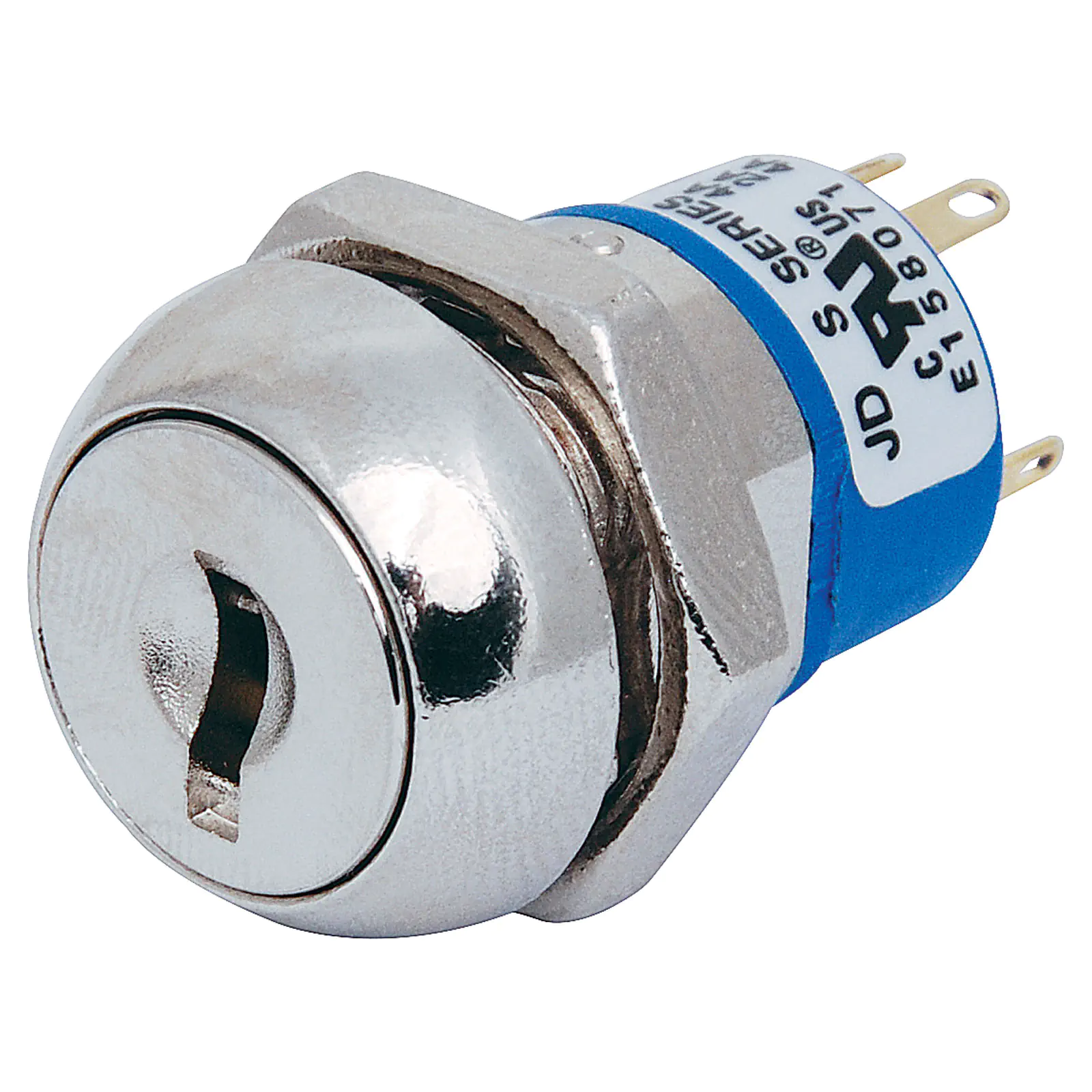

2 Position DPDT 606 Key Keyswitch

Name: 2 Position DPDT 606 Key Keyswitch
SKU: S2604
Price: 15.91 AUD
Availability: InStock

SKU: S2604

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.

$15.91

All Prices Shown are (ex GST)

Bulk Pricing

ea	$15.91
4+	$14.32
10+	$12.73

i h

Overview
Details
Warranty

Overview

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

Note: Key removable in one position only. Supplied with two keys

Specifications:

Electrical

Contact Rating: 4A 125VAC/28VDC, 2A 250VAC

Contact Resistance: Below 10 millionΩ

Insulation Resistance: 1 Billion Ω Min.

Dielectric Strength: 1000V RMS Min. sea level

Electrical Life: 6000 make-and-break cycles at full load

Materials

Lock Housing: Zinc Alloy die-casted nickel Plated.

Cylinder: 4 Disc Tumblers Constructed, Zinc Alloy die-casted nickel Plated.

Keys: Brass, Original Colour or Nickel Plated.

Contacts: Super Hard Copper Alloy, Silver Plated.

Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.
