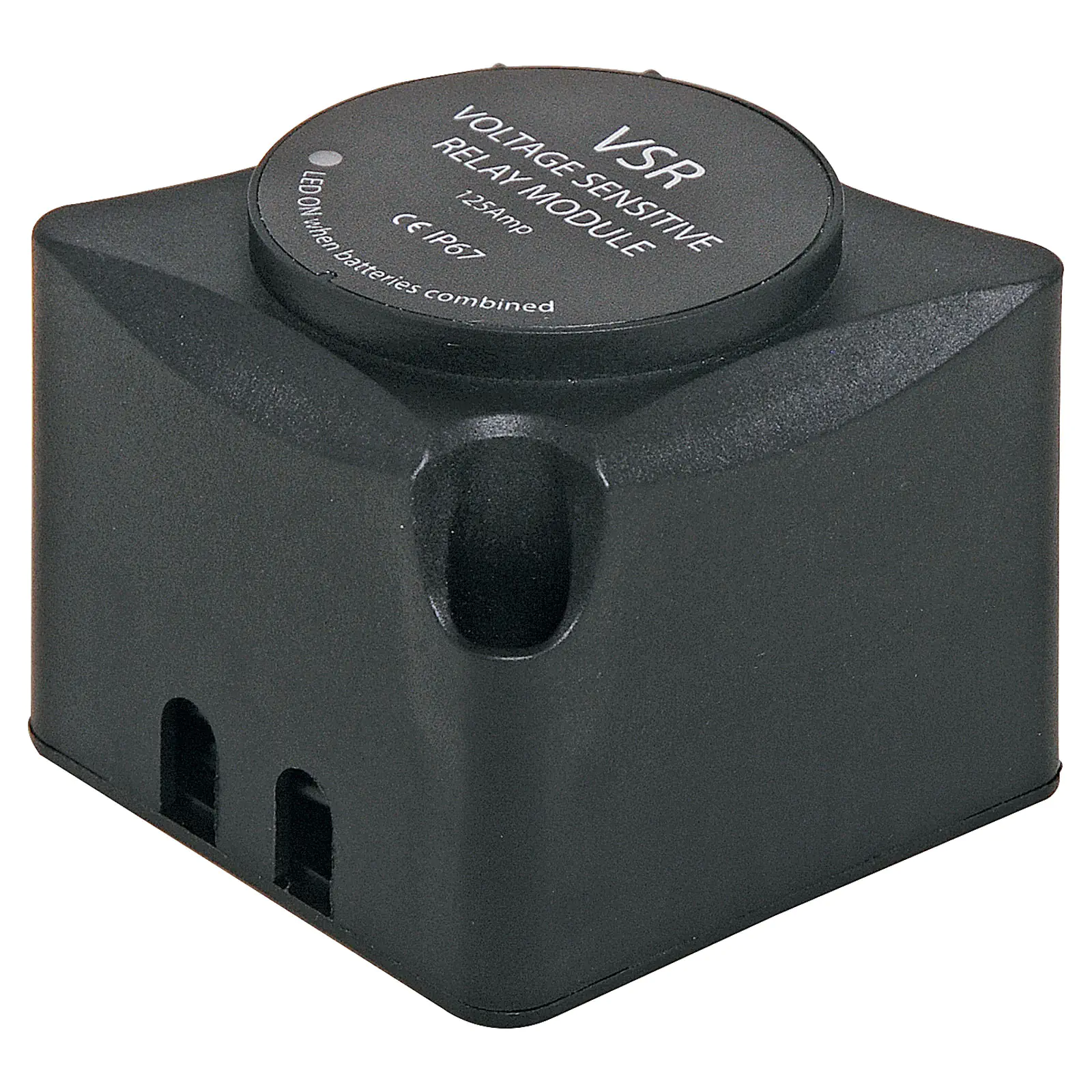

12V Dual Battery VSR Isolator

SKU: S2680
This voltage sensitive relay (VSR) module is designed to combine two batteries when charging and isolates each when not charging. It essentially isolates your auxiliary battery from your starter battery to prevent you inadvertently fully discharging it. A voltage sensing relay can be a vital piece of equipment in your vehicle battery system.
$54.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $54.50
2+ $49.05
4+ $43.59
i h

Overview

This voltage sensitive relay module is designed to combine two batteries when charging and isolates each when not charging. It essentially isolates your auxiliary battery from your starter battery to prevent you inadvertently fully discharging it (and thus leaving your car stranded!). Once the voltage of your starter battery rises above 13.3V the isolator engages to charge both batteries in parallel. When the voltage of the starter battery drops below 12.8V the isolator disengages sending charge solely to the starter battery. Fully encapsulated design seals out water and dust.





Specifications:



Max output current: 140A

Continuous output current: 125A

Voltage drop: None

Nominal voltage: 12V DC

Combine/open voltage: 13.7V/12.8V

Power consumption: 10mA standby, 330mA engaged, 0mA storage mode

Dimensions: 69 x 69 x 58mm



Features:

  • Batteries combined, LED indicator
  • Glass fibre reinforced nylon enclosure
  • Encapsulated for water and dust protection
  • No voltage drop
  • Surface or panel mount
