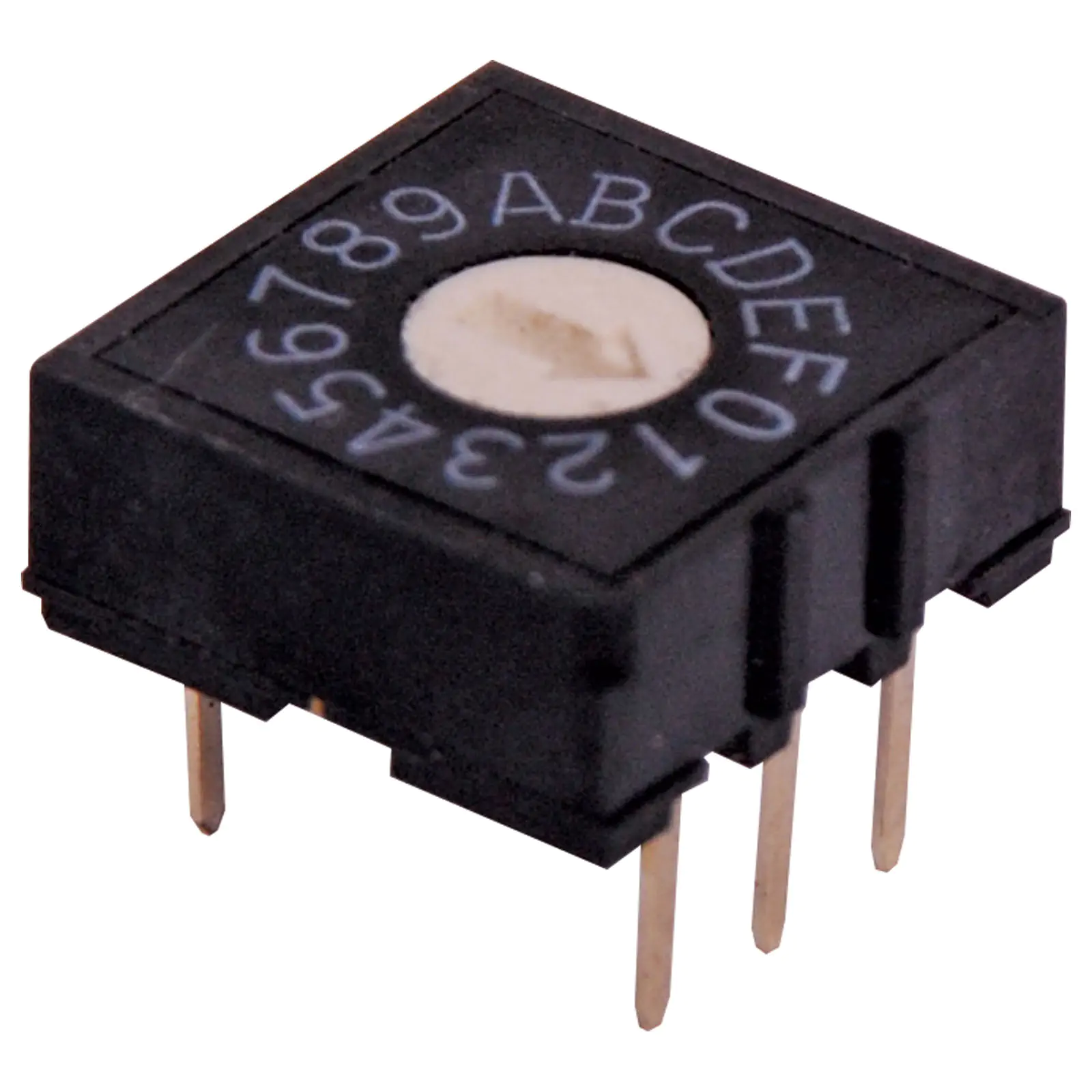

5 Pin Hexidecimal PCB Mount Rotary Switch

SKU: S3000A
Temperature Range: -10°C to +60°C Non Switching Rating: 50V DC @ 100mA Switching Rating: 5V DC @ 100mA Contact Resistance (Rc): 100mΩ max. Insulation Resistance: 100MΩ min @ 250VAC Voltage Proof: 250V AC for 1 min. Mechanical Life: (Rc < 150mΩ) 1000 cycle max Electrical Life: (Rc < 150mΩ) 100 cycles max Binary coded hex 16 pos
$6.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.05
10+ $5.45
40+ $4.82
i h

Overview

Specifications:



Temperature Range: -10°C to +60°C

Non Switching Rating: 50V DC @ 100mA

Switching Rating: 5V DC @ 100mA

Contact Resistance (Rc): 100mΩ max.

Insulation Resistance: 100MΩ min @ 250VAC

Voltage Proof: 250V AC for 1 min.

Mechanical Life: (Rc < 150mΩ) 1000 cycle max

Electrical Life: (Rc < 150mΩ) 100 cycles max

Binary coded hex 16 pos

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
