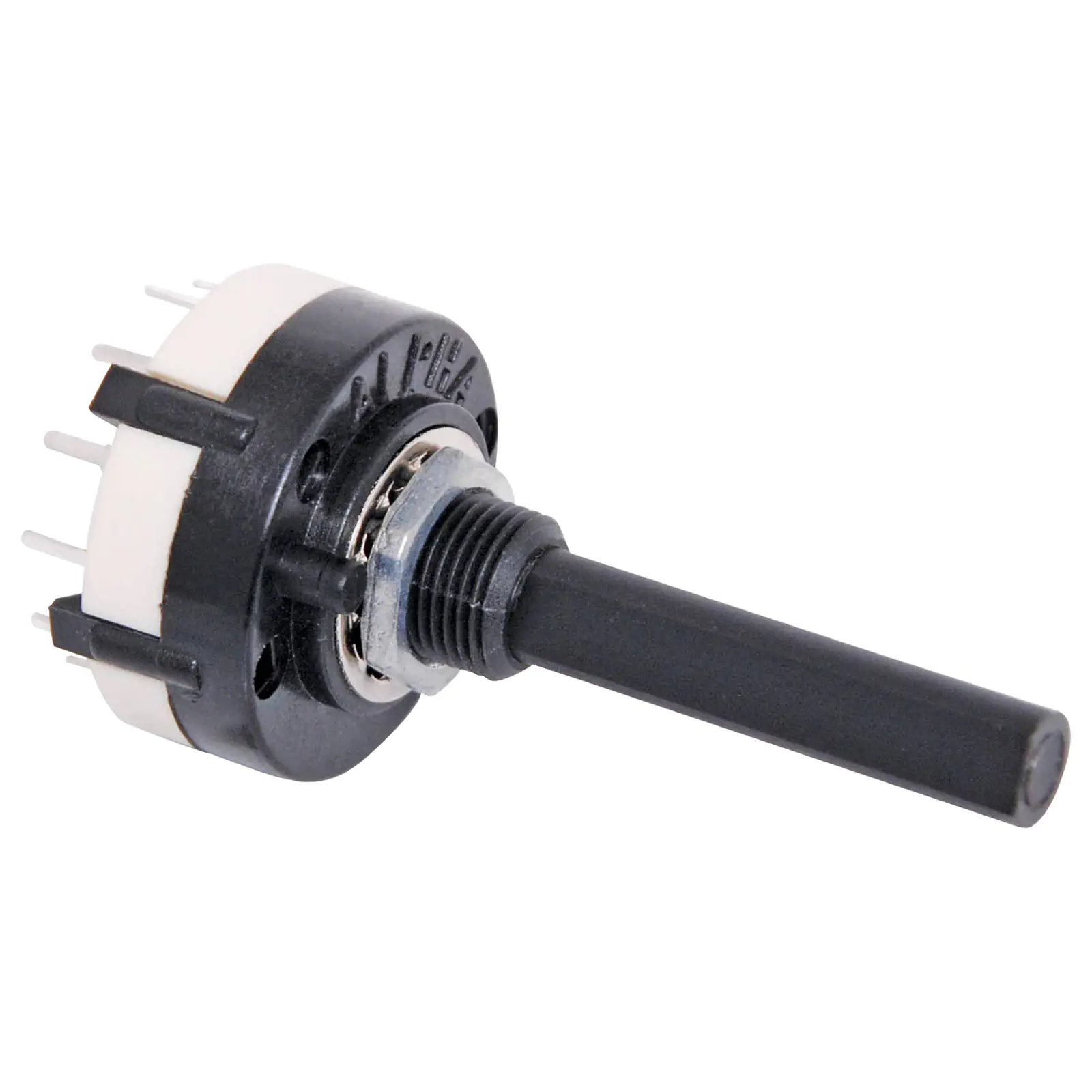

1 Pole 2-12 Position PCB Mount Rotary Switch

SKU: S3021
User Selectable Configuration. Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement. 1P12T
$4.14

All Prices Shown are (ex GST)

Bulk Pricing
ea $4.14
10+ $3.77
40+ $3.36
i h

Overview

A configurable PCB mount rotary switch with 6.35mm D shaft. Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement. This model can be configured for 1 pole, 2 position up to 1 pole 12 position.

Note: This rotary switch is not compatible with H6020, H6022, H6024, H6028 and H6030 knobs.





Specifications:



Shaft Diameter: 6.35mm

Shaft Length: 30mm

Shaft Shape: Round with knob location flat

Contact Timing: Break before make

Contact Rating: 150mA @ 250V AC

Contact Type: Silver Plated

Max. Working Voltage: 300V

Termination: 1.2 mm PCB Pins

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
