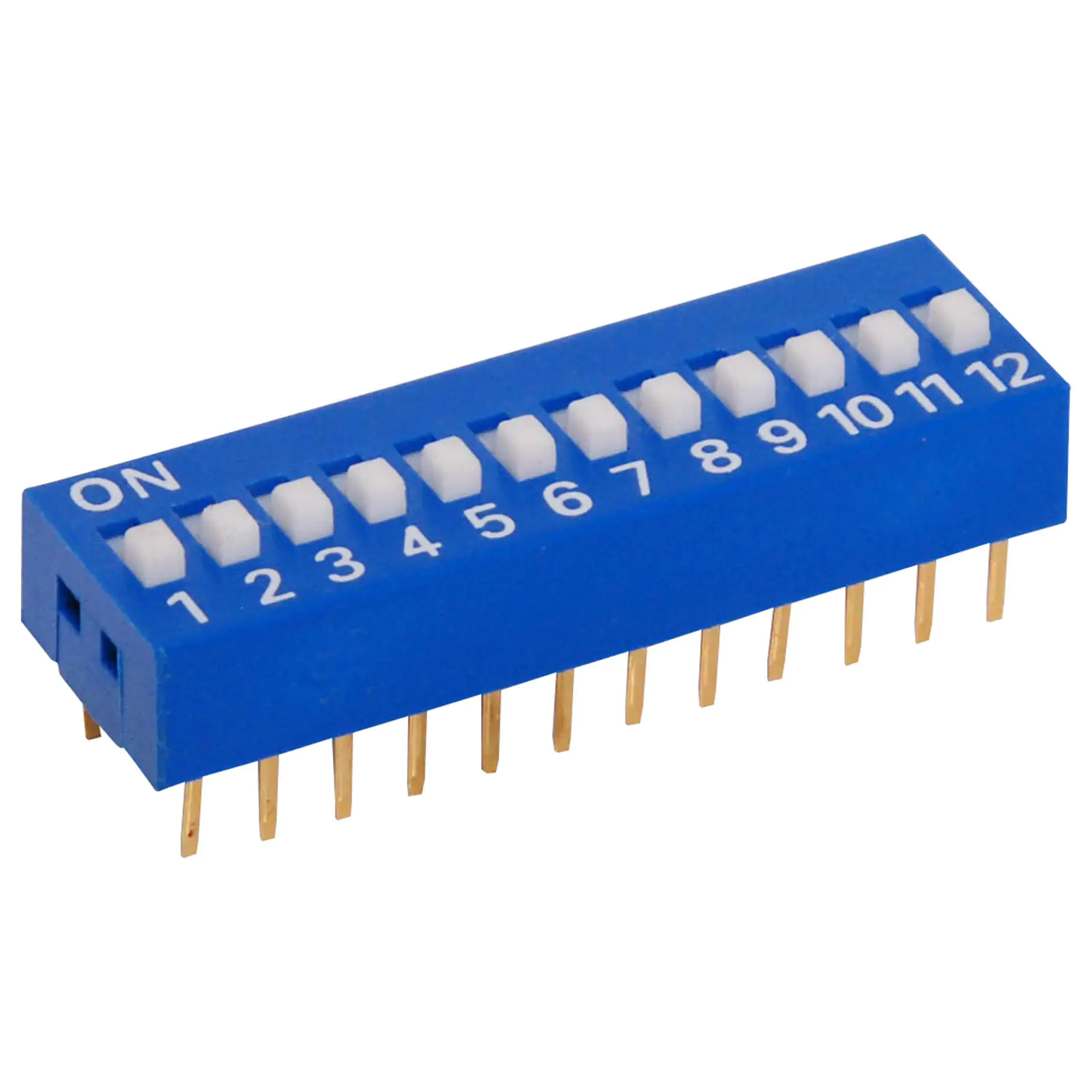

12 Way DIP Switch

SKU: S3068
Gold plated contacts and pins. Durable self wiping contacts.
$3.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.41
10+ $3.09
40+ $2.73
i h

Overview

Gold plated contacts and pins. Durable self wiping contacts. No of switches: 12 Dimension "A" : 31.84mm





Specifications:



Rating: 50V DC 100mA continuous, 24V DC 25mA switching

Contact Resistance: 30m Ω max. initially @ 100mA

100m Ohm max. after life test

Insulation Resistance: 1000M Ω min.

Operation Life: Average 10,000 min.

Capacitance: 5pF max. between adjacent terminals

Dielectric Breakdown Voltage: 500V DC min.

Operation Force: 500g max

Case, Cover & Actuators: UL94-VO, PBT plus glass fibre

Terminals: Gold plated phosphor bronze
