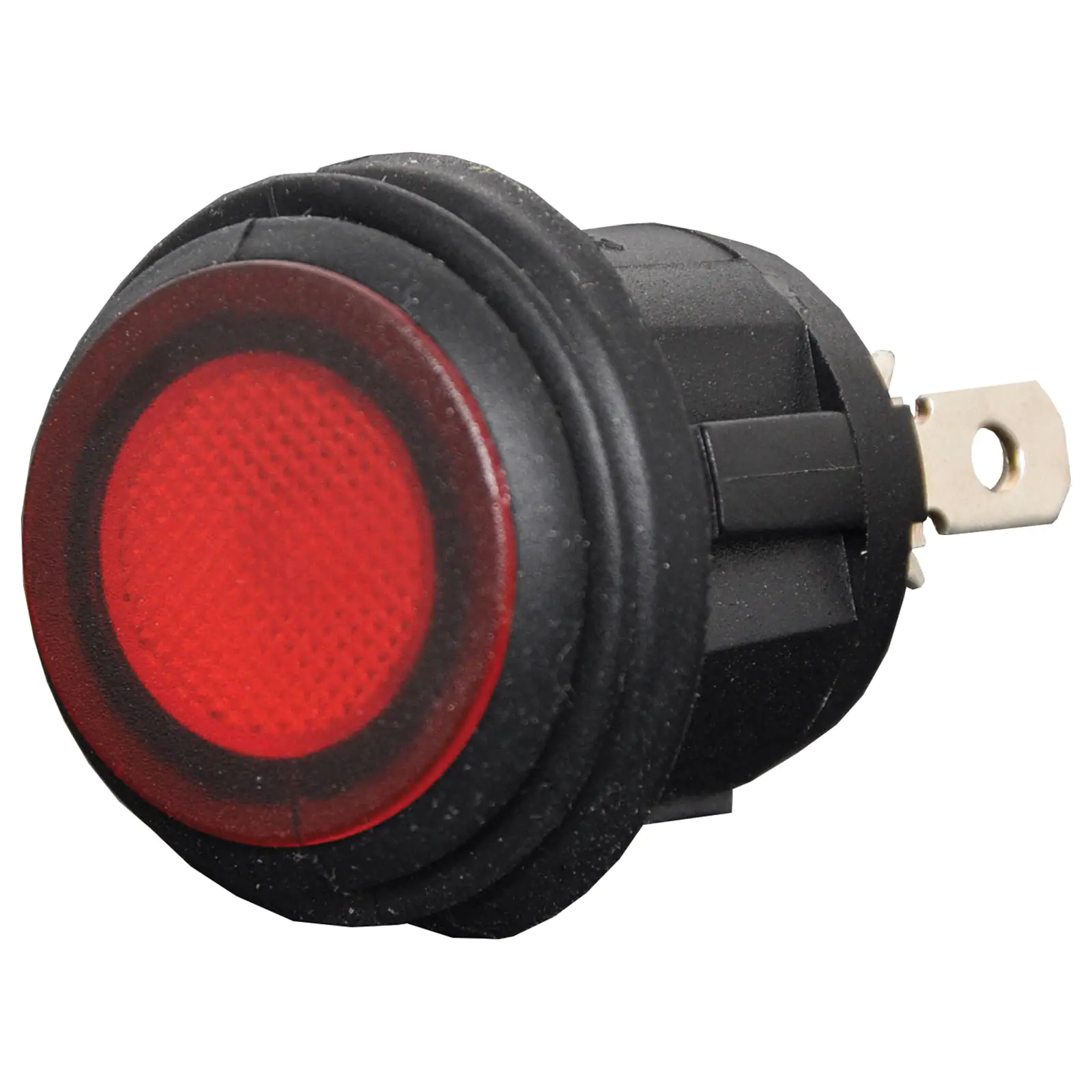

SPST LED 12V 20A IP65 Weatherproof Rocker Switch

SKU: S3185
A IP65 waterproof rated low voltage (12V DC) SPST alternate rocker switch with red LED illumination. Ideal for use in panel controls exposed to the elements or in marine and automotive applications. UL and ROHS approved.
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
10+ $6.82
40+ $6.36
i h

Overview

A IP65 waterproof rated low voltage (12V DC) SPST rocker switch with red LED illumination. Ideal for use in panel controls exposed to the elements or in marine and automotive applications. UL and ROHS approved. Illuminated red with 12V DC led. Contacts rated for 20A @ 14V DC, however, this switch is ideally used in low voltage situations.

Specifications:



Electrical:

Switch Type: SPST Alternate (LED Dependent)

Contact Rating: 20A @ 14V DC

LED: Red 12VDC

Panel Thickness: 2.5mm max.

Electrical Life: 10,000 cycles

Mechanical Life: 100,000 cycles

Contact Resistance: 50MΩ max.

Insulation Resistance: 500V DC 100MΩ/minute

Dielectric Strength: 1500V AC 1 minute



General:

Frame: Nylon 66 (UL-94V2) Black

Actuator: PC (UL-94V2)

Waterproof Boot: Silicone

Terminals: Silver plated copper alloy

Waterproof Rating: IP65

LED Colour: Red

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
Indicator Illuminated
Action Alternate
