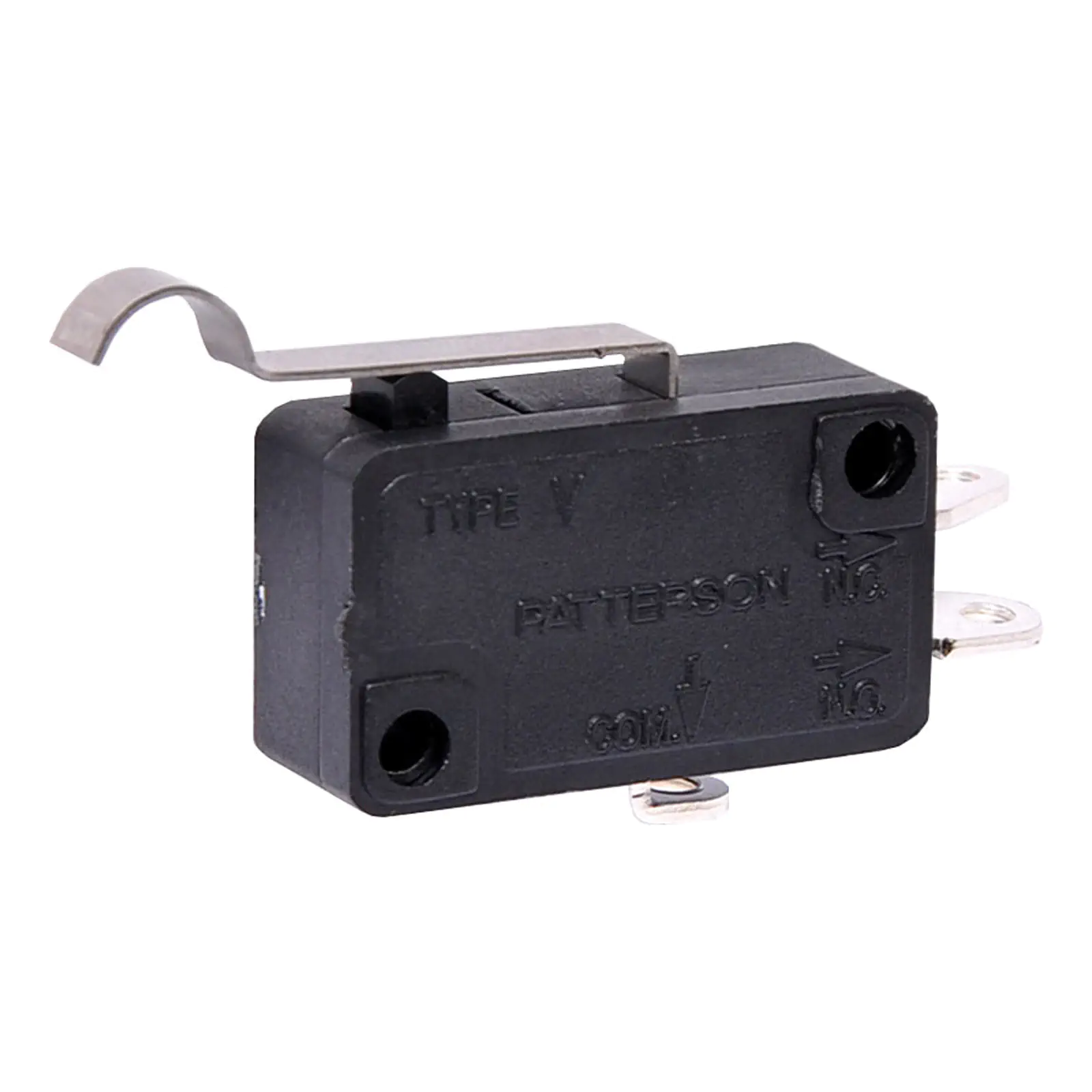

SPDT Momentary Solder Tail Microswitch (15A)

SKU: S3270
A handy miniature limit microswitch with 27mm smooth edge actuator. High current version for heavier duty circuit applications. Ideal for replacement or new mechatronic designs.
$6.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.00
10+ $5.55
40+ $4.95
i h

Overview

A handy miniature limit microswitch with 27mm rolled edge actuator. High current version for heavier duty circuit applications. Ideal for replacement or new mechatronic designs.

Specifications:



Rating: 15A 125 / 250 VAC

Terminal: A ( Solder )

Circuit Position: S.P.D.T.

Operating Force (OF): max.200 g

Releasing Force (RF): min. 28 g

Pre-Travel (PT): max. 2.5mm

Over-Travel (OT): min. 1.6mm

Movement Differential (MD): max. 1.2mm

Operating Position (OP): 18.2+1.2mm

Dielectric Strength (between contacts): 1,000 VAC ; 50 / 60 HZ for 1 minute

Dielectric Strength (between terminal and ground): 1,500 VAC ; 50 / 60 HZ for 1 minute

Mechanically Service Life: 5,000,000 operations / (min.)

Electrically Service Life: 500,000 operation /(min.)(at rated load)

Ambient Temperature: 25°C ~ 180°C

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
Action Momentary
Connection Solder Tail
Type Micro Switches
