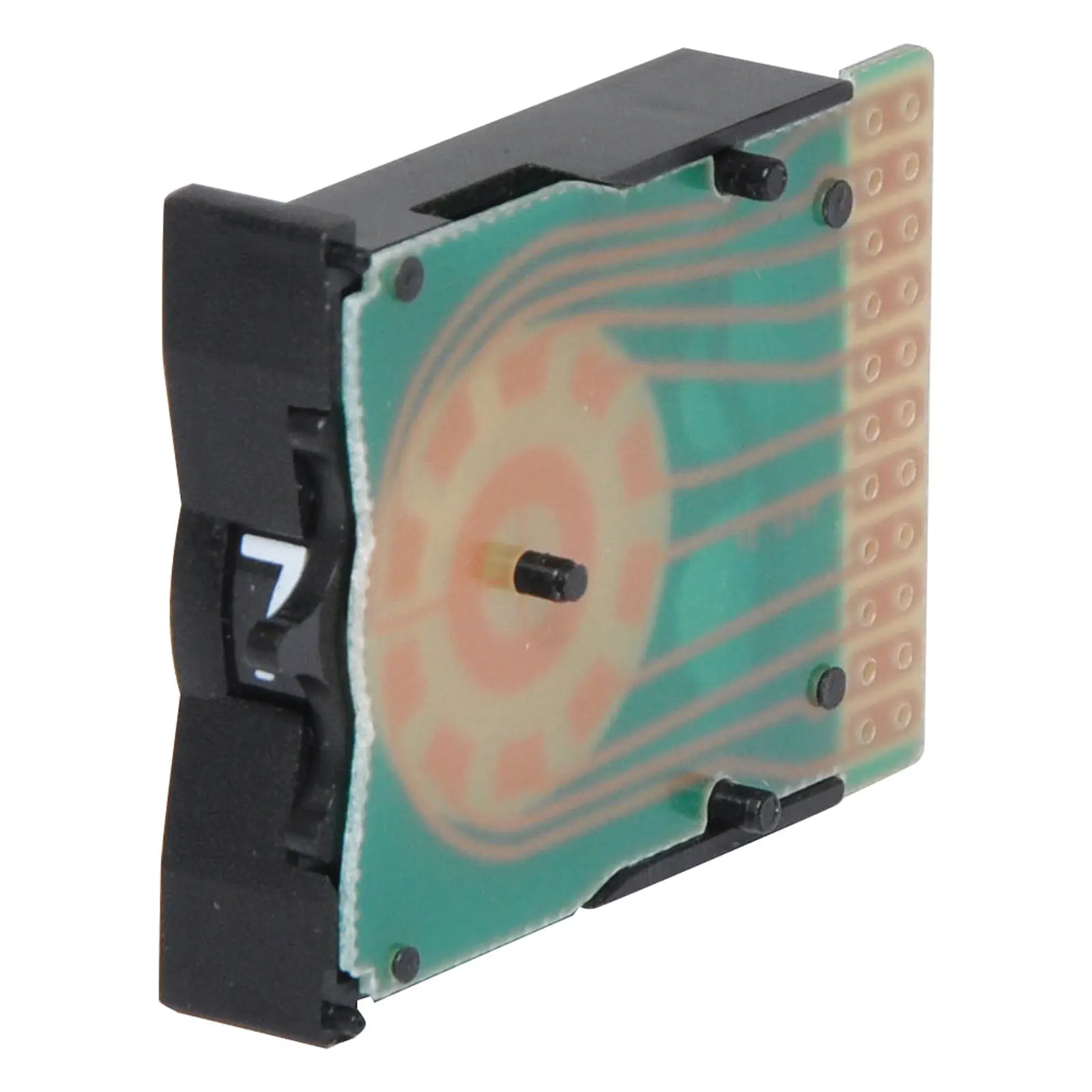

10 Position Decimal Mini Thumbwheel Switch

SKU: S3302
Panel mount Decimal coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm per unit. Can easily be ganged together to form any combination. Pair of End Caps to Suit (S 3305).
$8.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.86
10+ $8.14
40+ $7.41
i h

Overview

Panel mount Decimal coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm per unit. Can easily be ganged together to form any combination. Pair of End Caps to Suit (S 3305).





Specifications:



Temperature Range: -10°C to +65°C

Carry Current: 1 Amp max

Switch Capacity: 0.1 A @ 50V AC/28V DC

Contact Resistance: 200mΩ max.

Dielectric Strength: 600V AC for 1 min.

Mechanical Life: 100,000

Electrical Life: 50,000

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Dimension Drawing
PDF
