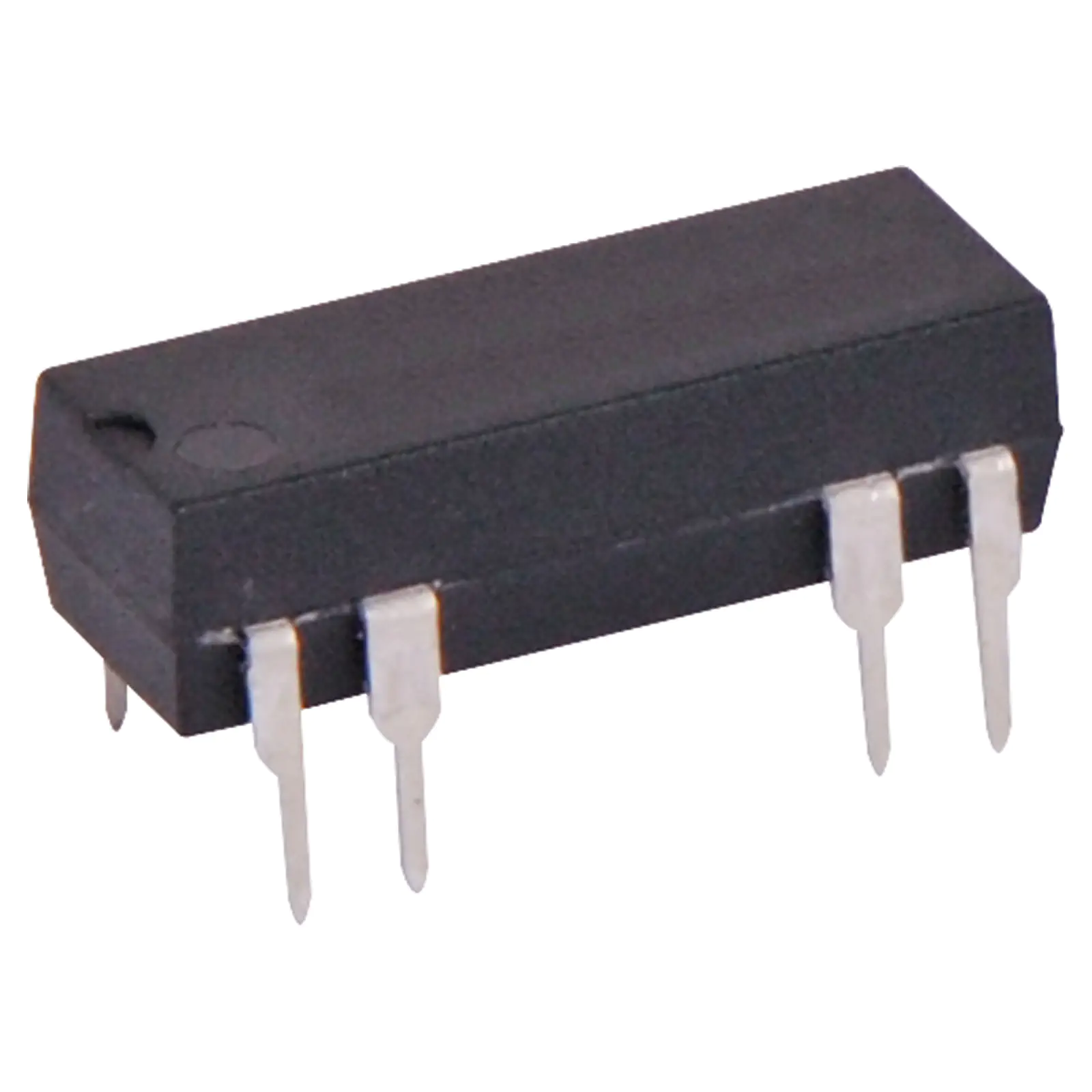

0.5A 12VDC SPST DIP PCB Mount Reed Relay

SKU: S4101A
Fully sealed construction (immersion cleanable). DIL pitch terminals.
$4.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.32
10+ $3.77
25+ $3.41
i h

Overview

Fully sealed construction (immersion cleanable). DIL pitch terminals.



Specifications:



Max switching voltage: 100V DC

Max switching current: 1A DC

Max VA (Watts): 10VA

Contact material: Rhodium Alloy

Coil resistance: 1050Ω

Max coil power: 500mw

Insulation resistance: >1000MΩ@ 500V DC

Dielectric strength (for 1 min):

150V AC between open contacts

1000V AC between coil & contact

Electrical life: 10 million operations

Mechanical life: 10 million operations

Dimensions: 20W x 8L x 6H mm



Details

Products specifications

Warranty 12 Months
Switches
Type Reed
Contacts SPST
