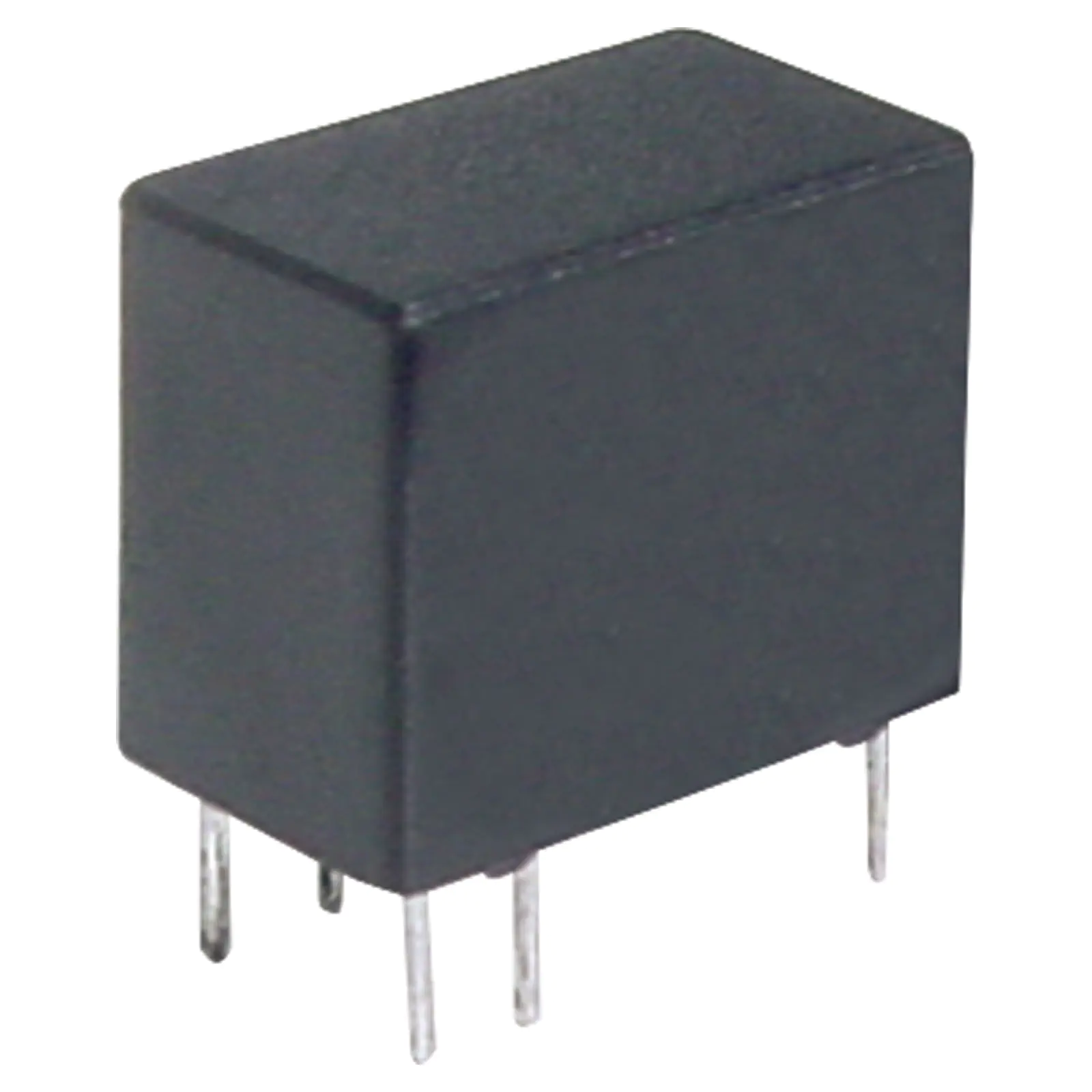

1A 5VDC SPDT PCB Mount Mini Relay

SKU: S4111
A 1A SPDT PCB mount relay with sealed construction suitable for immersion cleaning. 5V DC coil.
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.73
40+ $4.27
i h

Overview

A 1A SPDT PCB mount relay with sealed construction suitable for immersion cleaning. 5V DC coil.

Specifications:



Max Switching Voltage: 125V AC, 60V DC

Max Switching Current: 1A DC

Max VA (Watts): 62.5VA (30W)

Contact Material: Gold Plated Silver

Coil Resistance: 166Ω

Max Coil Power: 150mw

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

400V AC between open contacts

1000V AC between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 5 million operations

Dimensions: ≈ 12.5W x 7.5L x 10H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
