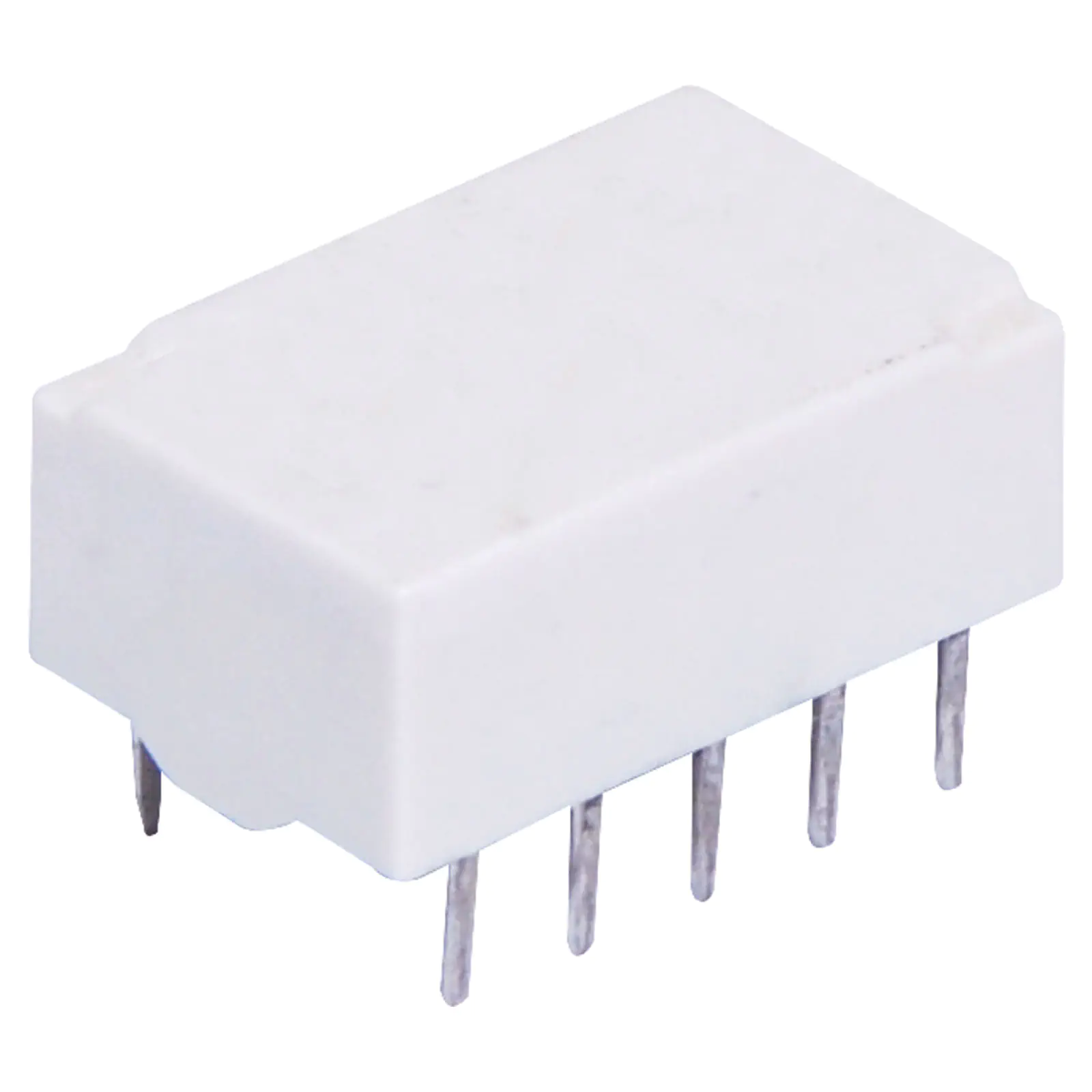

2A 5VDC DPDT PCB Mount Telecom Relay

SKU: S4128C
Compact 2A DPDT telecom relay with fully sealed construction (suitable for immersion cleaning).
$4.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.73
10+ $4.27
40+ $3.77
i h

Overview

Compact 2A DPDT telecom relay with fully sealed construction (suitable for immersion cleaning).



Specifications:



Max switching voltage: 250V AC, 220V DC

Max switching current: 0.5A AC, 2A DC

Max VA (Watts): 62VA (30W)

Contact material: Silver Palladium

Coil resistance: 178Ω

Max coil power: 200mw

Insulation resistance: >1000MΩ@ 500V DC

Dielectric strength (for 1 min):

1000V AC between open contacts

1000V AC between coil & contact

Electrical life: 200,000 operations 1A 24V

Mechanical life: 10 million operations

Dimensions: 14W x 9L x 5H mm



Details

Products specifications

Warranty 12 Months
Switches
Contacts DPDT
Type Telecom
