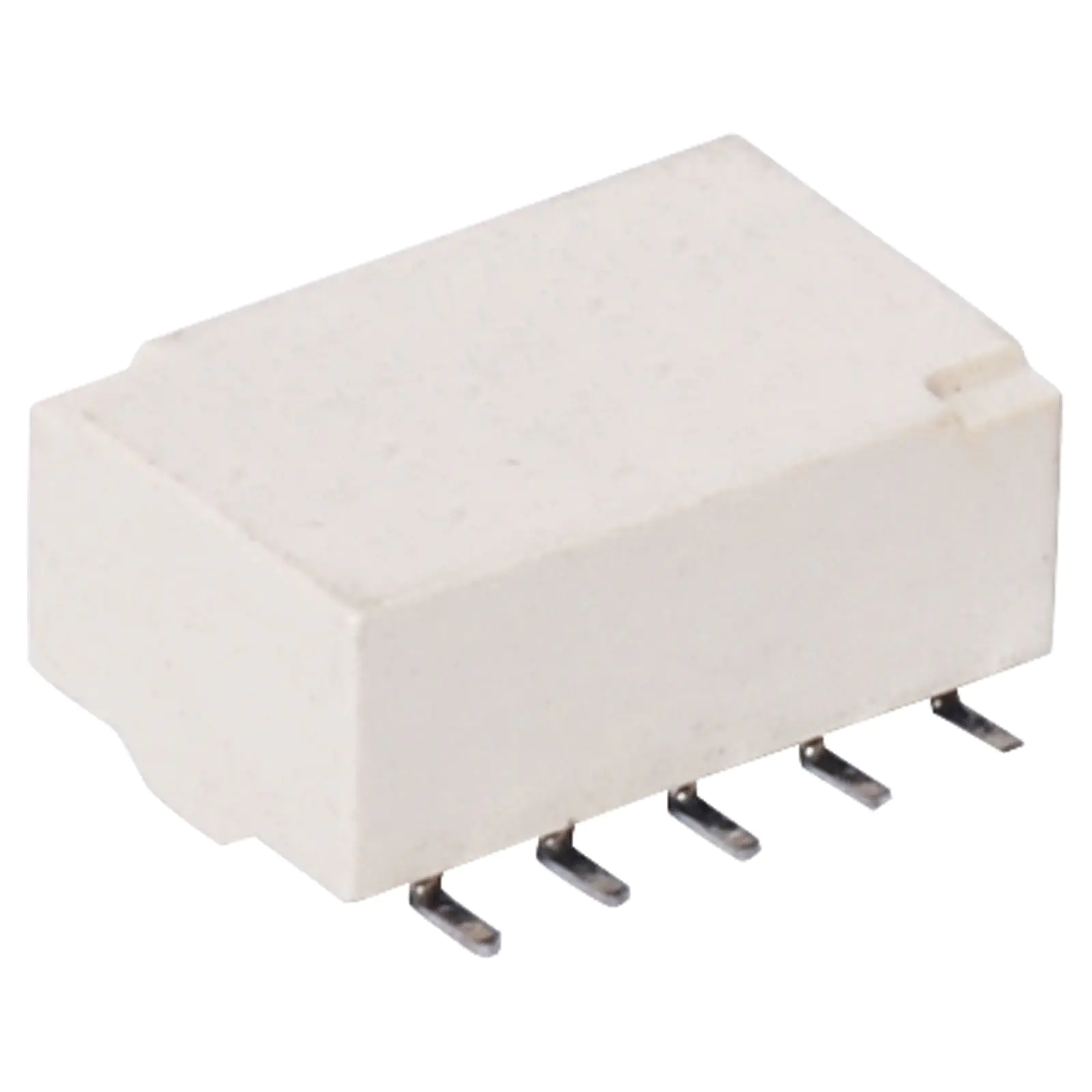

2A 5VDC DPDT SMD Telecom Relay

SKU: S4134
2A DPDT telecommunications relay. SMD style. 5V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing.
$5.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.45
10+ $4.91
40+ $4.32
i h

Overview

2A DPDT telecommunications relay. SMD style. 5V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing.

Specifications:



Max Switching Voltage: 250V AC, 220V DC

Max Switching Current: 0.5A AC, 2A DC (1A DC for UL approved applications)

Max VA (Watts): 62VA (30W)

Contact Material: Silver Palladium

Coil Resistance: 178Ω

Max Coil Power: 200mw

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

1000V AC between coil & contact

Electrical Life: 200,000 operations 1A 24V

Mechanical Life: 10 million operations

Dimensions: 14W x 9L x 5H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts DPDT
Type Telecom

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Specification Sheet
PDF
