Fully sealed construction (immersion cleanable).

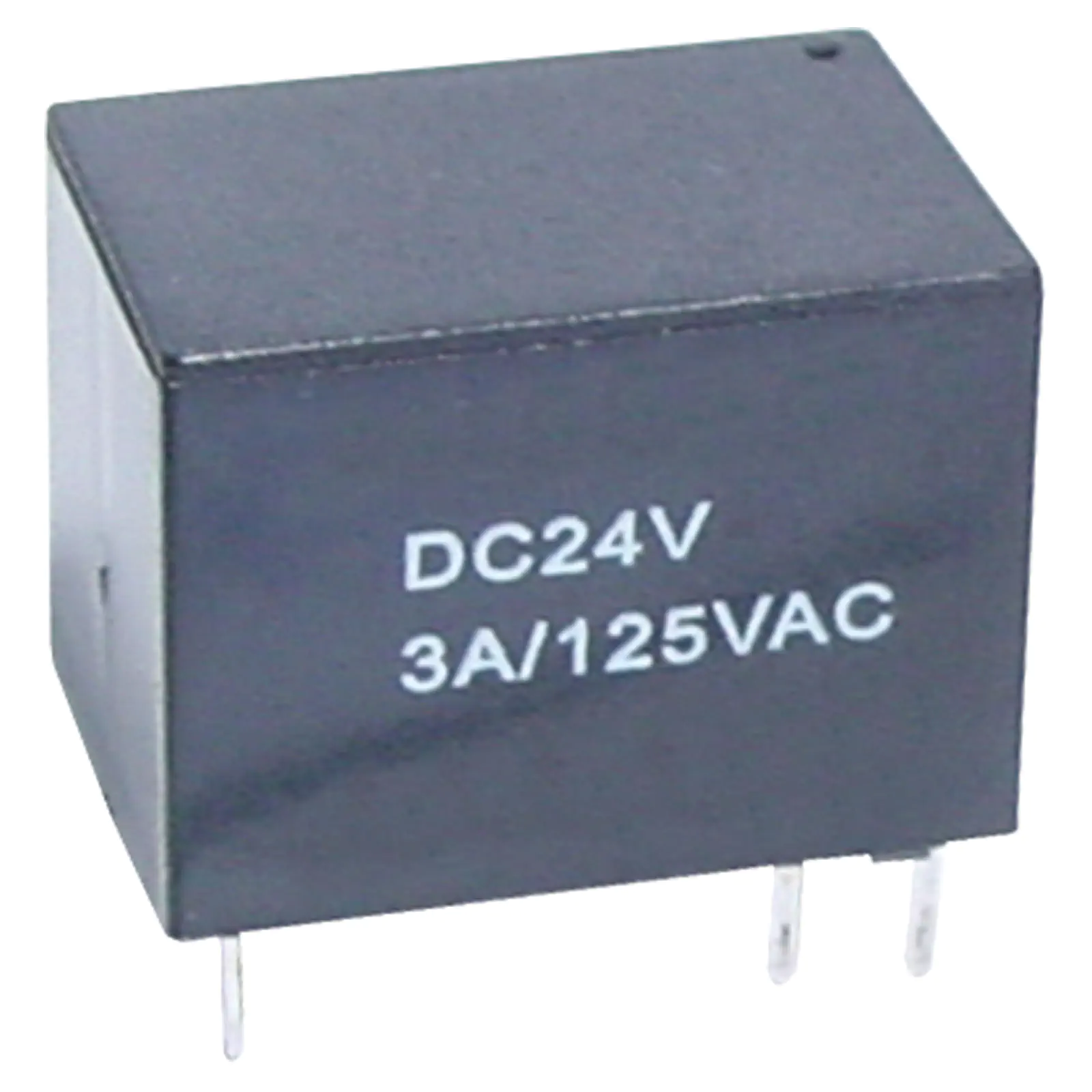

3A 24VDC SPDT PCB Mount Micro Relay

Name: 3A 24VDC SPDT PCB Mount Micro Relay
SKU: S4142B
Price: 3.64 AUD
Availability: InStock

SKU: S4142B

3A SPDT micro relay. PCB mount style. 24V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

$3.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$3.64
10+	$3.27
40+	$2.91

i h

Overview
Details
Warranty
Downloads

Overview

3A SPDT micro relay. PCB mount style. 24V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications:

Max Switching Voltage: 220V AC, 60V DC

Max Switching Current: 3A

Max VA (Watts): 625VA (90W)

Contact Material: Silver Nickel

Coil Resistance: 1600Ω

Max Coil Power: 360mW

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

500V AC between open contacts

500V AC between coil & contact

Electrical Life:100,000 operations 3A 24V

Mechanical Life: 10 million operations

Dimensions: ≈ 16W x 10L x 11H mm

Products specifications

Warranty	12 Months
Switches
Contacts	SPDT
