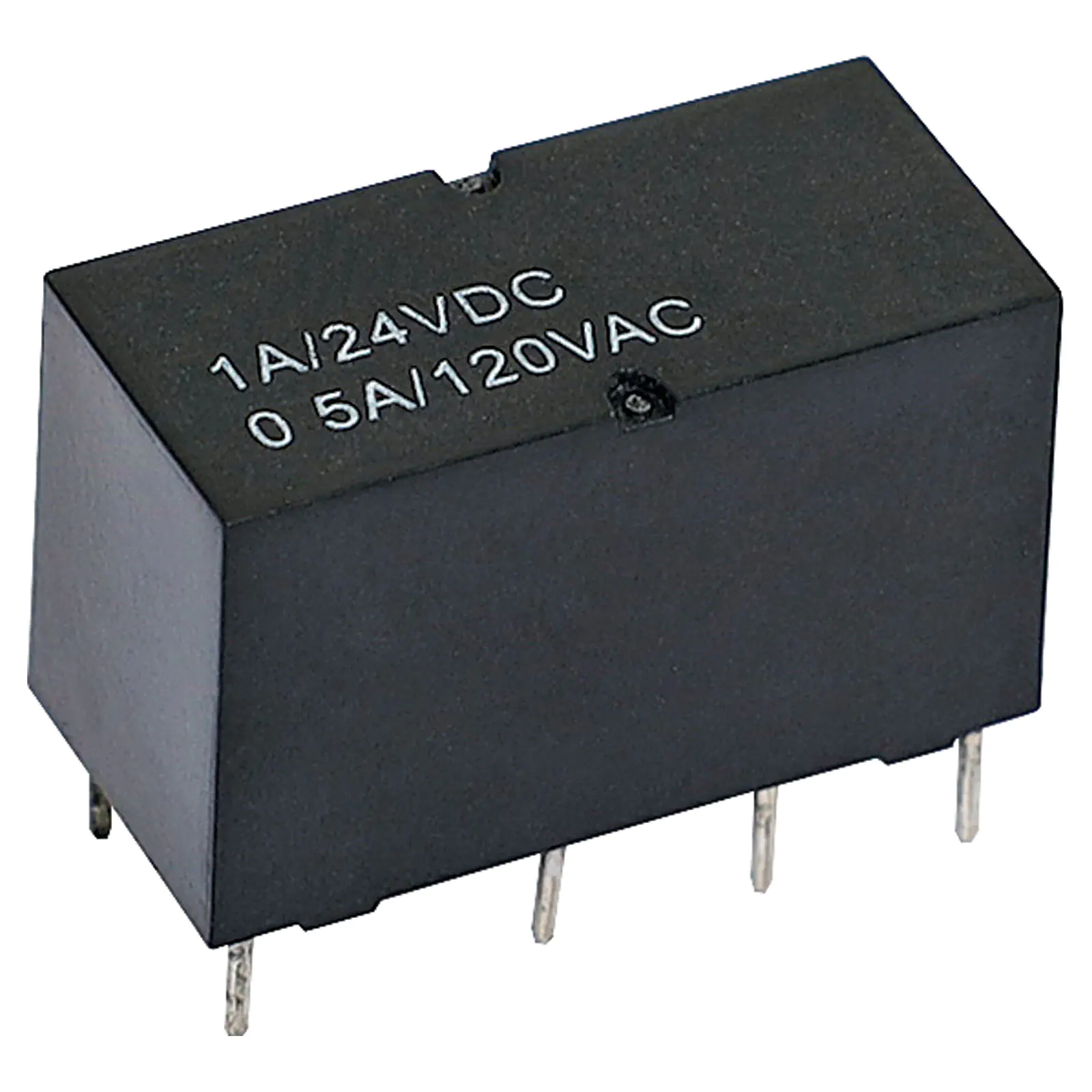

1A 5VDC DPDT PCB Mount Micro Relay

SKU: S4147
1A DPDT micro relay. PCB mount style. 5V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.73
40+ $4.27
i h

Overview

1A DPDT micro relay. PCB mount style. 5V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications:



Max Switching Voltage: 250V AC, 220V DC

Max switching Current: 0.5A AC, 1A DC

Max VA (Watts): 125VA (30W)

Contact Material: Silver Palladium

Coil Resistance: 167Ω

Max Coil Power: 200mw

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

1500V AC between open contacts

1500V AC between coil & contact

Electrical Life: 200,000 operations 1A 24V

Mechanical Life: 10 million operations

Dimensions: ≈ 10W x 20L x 15.5H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts DPDT
