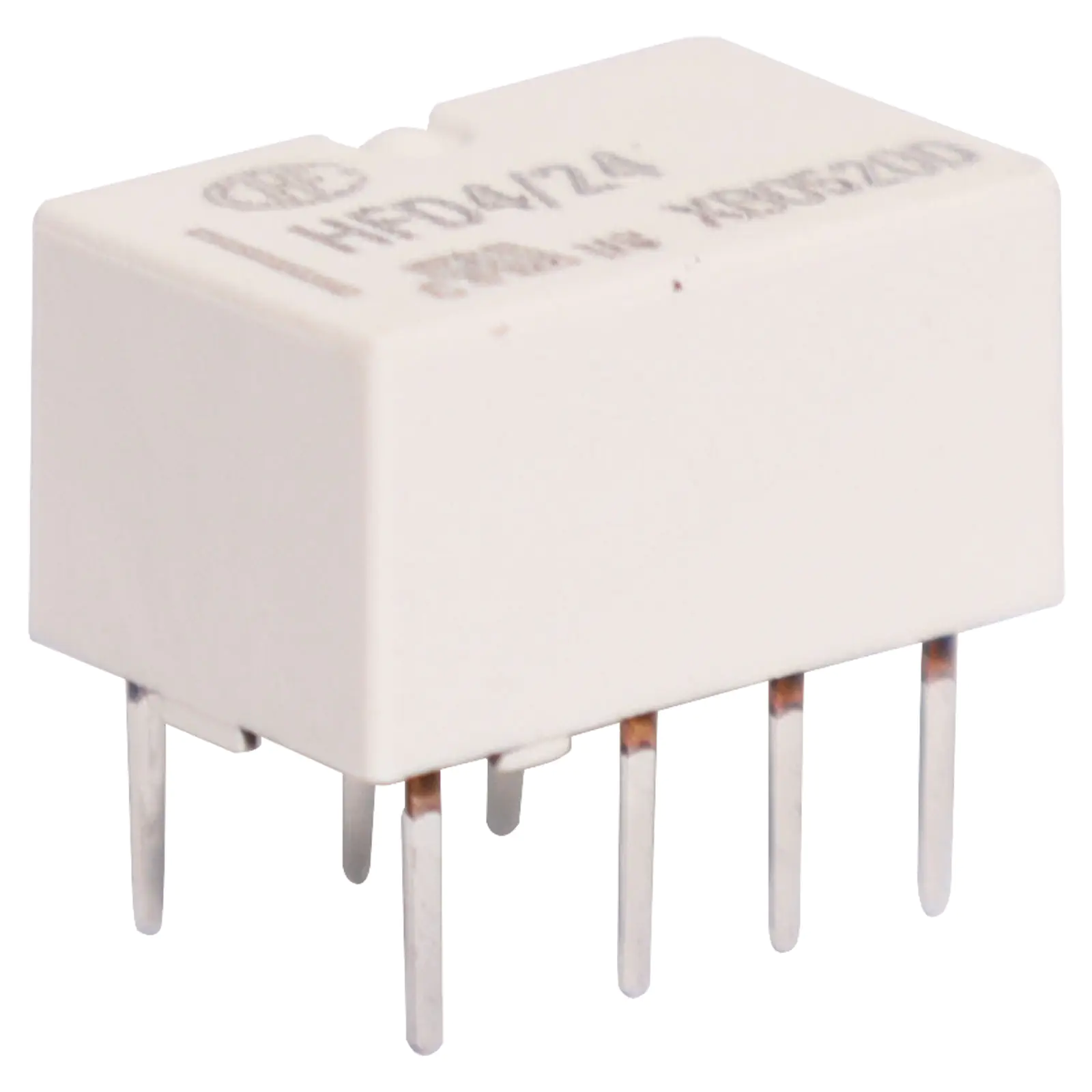

2A 24V DC Coil DPDT Sub Miniature Signal PCB Relay

SKU: S4158
Compact 2A DPDT signal relay. 24V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.
$5.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.91
10+ $5.32
40+ $4.73
i h

Overview

Compact 2A DPDT signal relay. 24V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.

Specifications:



Max AC switching rating: 2A @ 250V

Max DC switching rating: 2A @ 220V

Max switching power AC: 62.5VA

Max switching power DC: 60W

Contact material: Gold plated nickel

Coil resistance (5V): 2880Ω

Nominal coil power: 100mW

Insulation resistance: >1000MΩ @ 500V DC

Dielectric strength (for 1 min):

1000V AC between open contacts

1600V AC between coil & contact

Life: 100,000 electrical 1A 24V,  10 million mechanical

Dimensions: ≈10W x 6.5L x 5.4H mm

Sealed construction (immersion cleanable)

Details

Products specifications

Warranty 12 Months
Switches
Contacts DPDT
