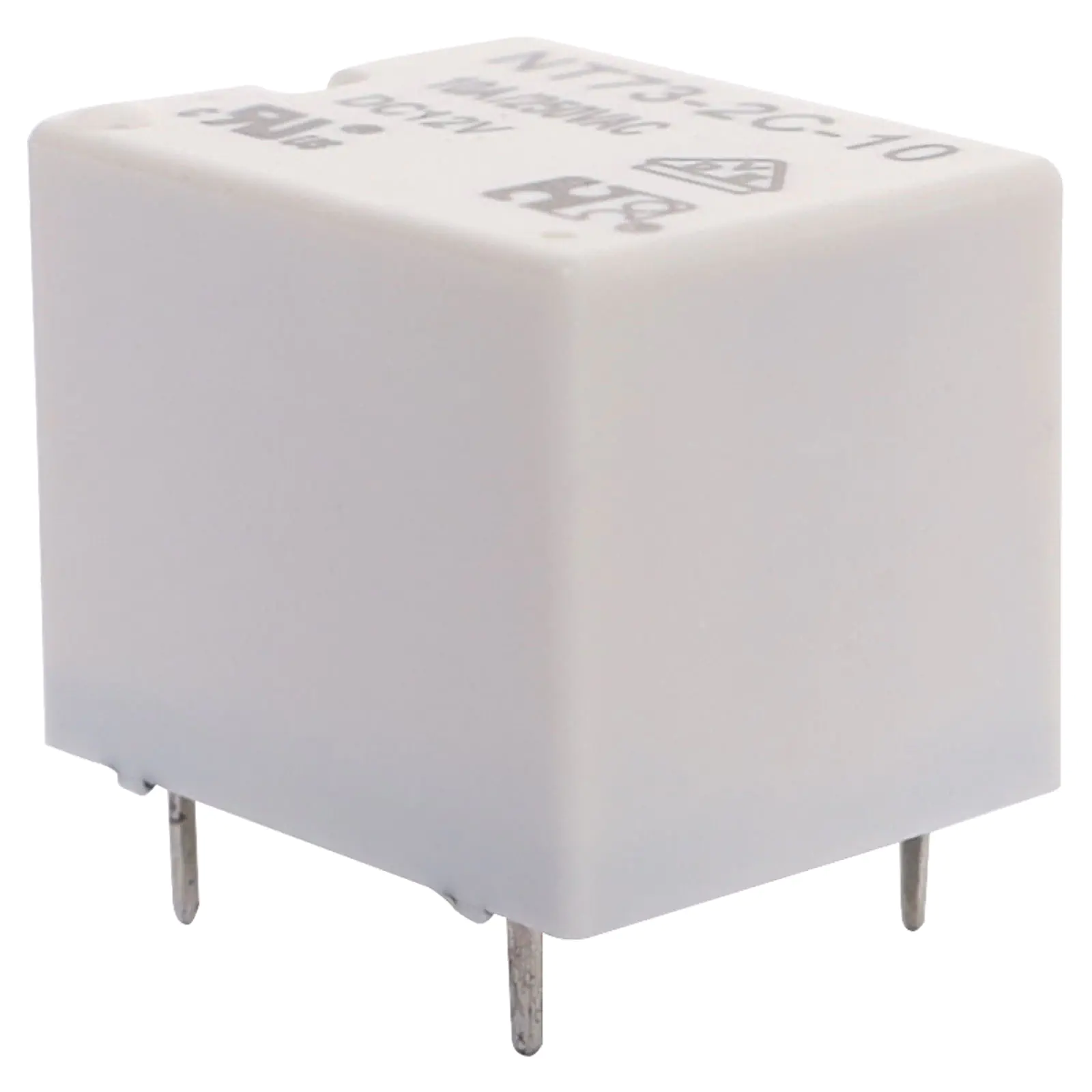

10A 12VDC SPDT PCB Mount Relay

SKU: S4160C
10A heavy duty relay. Non-sealed type, suitable for flow soldering
$3.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.18
10+ $2.86
40+ $2.55
i h

Overview

10A heavy duty relay. Non-sealed type, suitable for flow soldering



Specifications:



Max switching voltage ac: 380V

Max switching voltage dc: 110V

Max switching current ac: 10A

Max switching current dc: 10A

Max switching power ac: 2500VA

Max switching power dc: 420W

Contact material: Silver alloy

Coil resistance (12V): 400Ω

Max coil power: 360mW

Insulation resistance: >250MΩ @ 500V dc

Dielectric strength (for 1 min):

750V ac between open contacts

1500V ac between coil & contact

Electrical life: 100,000 operations

Mechanical life: 10 million operations

Dimensions: ≈19.5W x 15.6L x 15.3H mm



Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Data Sheet
PDF
