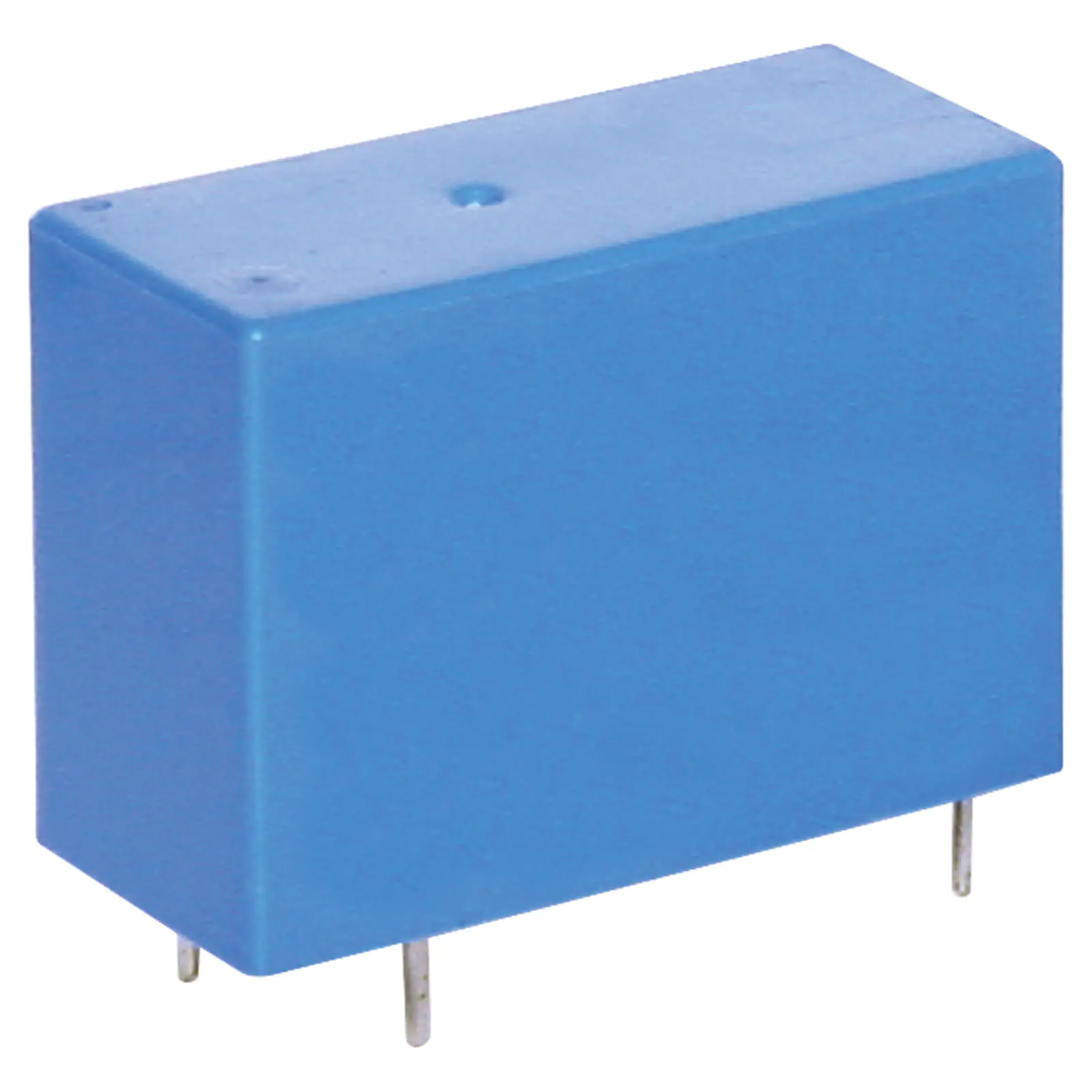

10A 24VDC SPDT PCB Mount Relay

SKU: S4175A
Non-sealed type, suitable for flow soldering
$5.91

All Prices Shown are (ex GST)

Bulk Pricing
ea $5.91
10+ $5.32
40+ $4.73
i h

Overview

Non-sealed type, suitable for flow soldering



Specifications:



Max switching voltage: 240V AC, 110V DC

Max switching current: 10A

Max VA (Watts): 1200VA (300W)

Contact material: Silver Cadmium Oxide

Coil resistance: 820Ω

Max coil power: 720mw

Insulation resistance: >100MΩ @ 500V DC

Dielectric strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical life: 100,000 operations

Mechanical life: 10 million operations

Dimensions: 29.1W x 13L x 20.6H mm



Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
