5A 12VDC DPDT PCB Mount Relay

SKU: S4190D

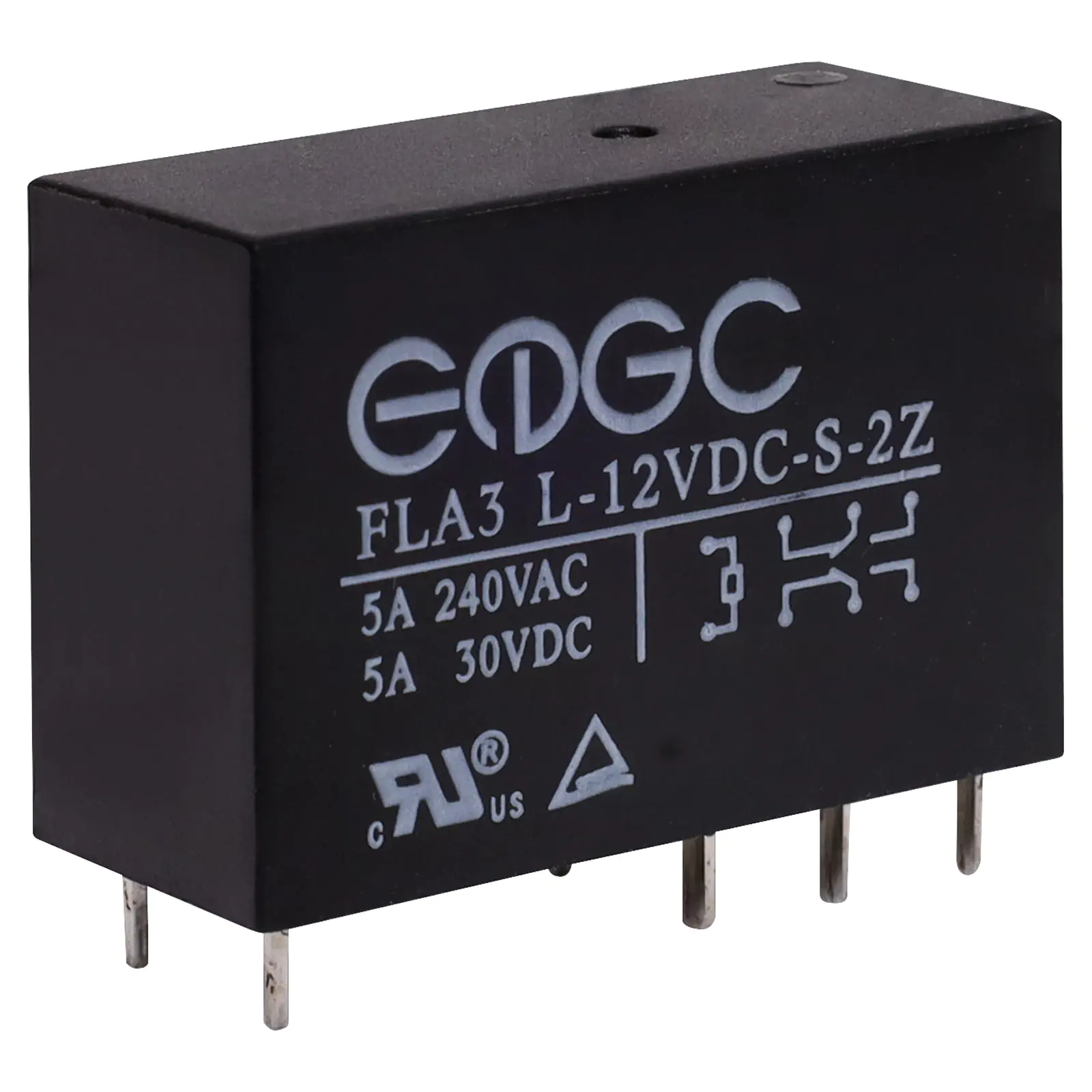

5A DPDT relay. PCB mount style. 12V DC coil. Non-sealed type, suitable for flow soldering.
$7.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.86
10+ $7.05
40+ $6.27
i h

Overview

5A DPDT relay. PCB mount style. 12V DC coil. Non-sealed type, suitable for flow soldering.
Note: This relay is marked with UL approved 5A 240VAC ratings, however max switching current specification is 8A 250VAC/30VDC

Specifications:



Max Switching Voltage AC: 250V

Max Switching Voltage DC: 30V

Max Switching Current AC: 8A

Max Switching Current DC: 8A

Max Switching Power AC: 1250VA

Max Switching Power DC: 150W

Contact Material: Silver alloy

Coil Resistance: 270Ω

Max Coil Power: 540mW

Insulation Resistance: >100MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 10 million operations

Dimensions: 29W x 12.7L x 20H mm
