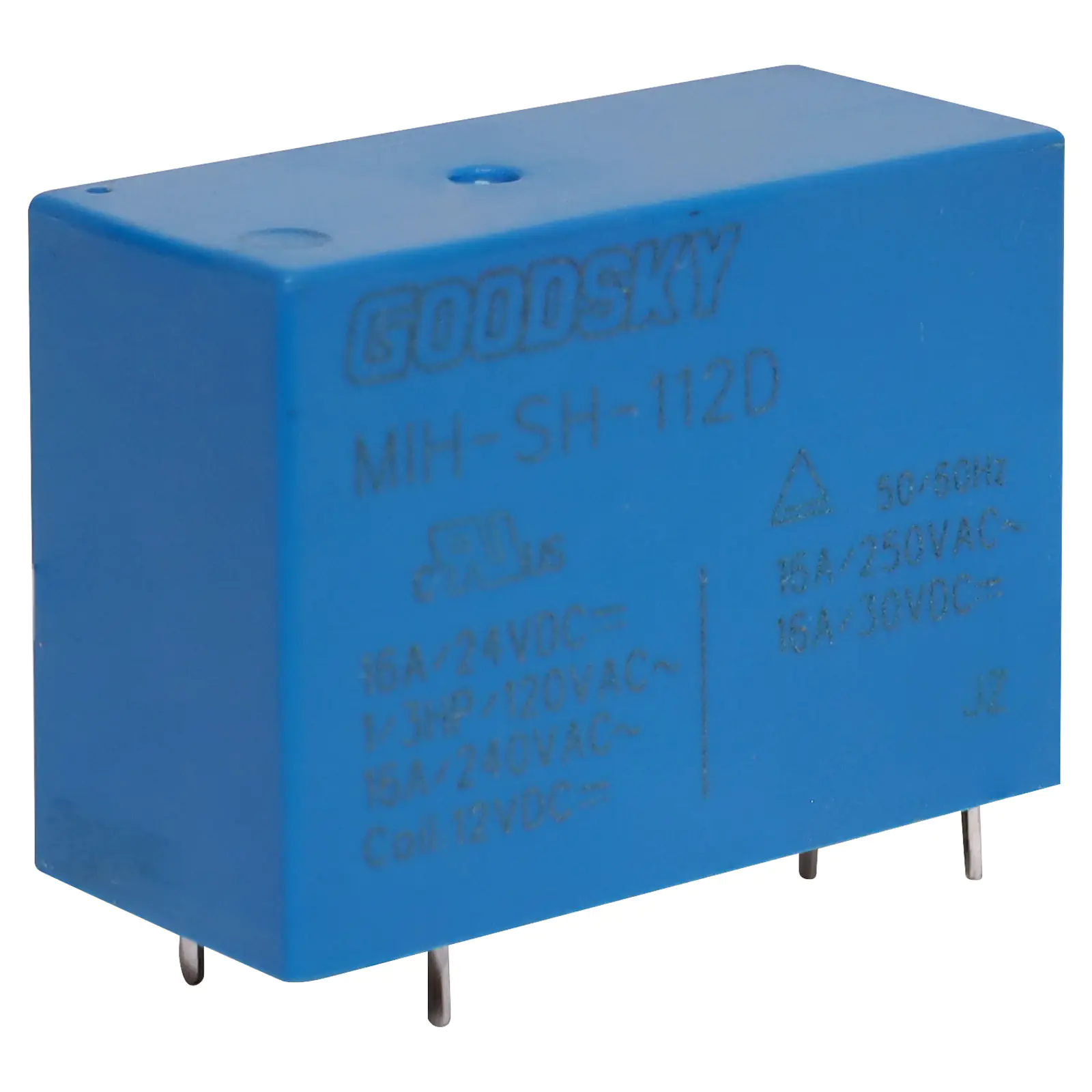

16A 12VDC SPDT PCB Mount Relay

SKU: S4197
16A SPDT relay. PCB mount style. 12V DC coil.
$6.32

All Prices Shown are (ex GST)

Bulk Pricing
ea $6.32
10+ $5.91
40+ $5.23
i h

Overview

16A SPDT relay. PCB mount style. 12V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications:



Max Switching Voltage: 250V AC, 110V DC

Max Switching Current: 16A

Max VA (Watts): 1800VA (450W)

Contact Material: Silver Selenium Dioxide

Coil Resistance: 200Ω

Max Coil Power: 720mw

Insulation Resistance: >100MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 10 million operations

Dimensions: 13W x 29L x 21H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
