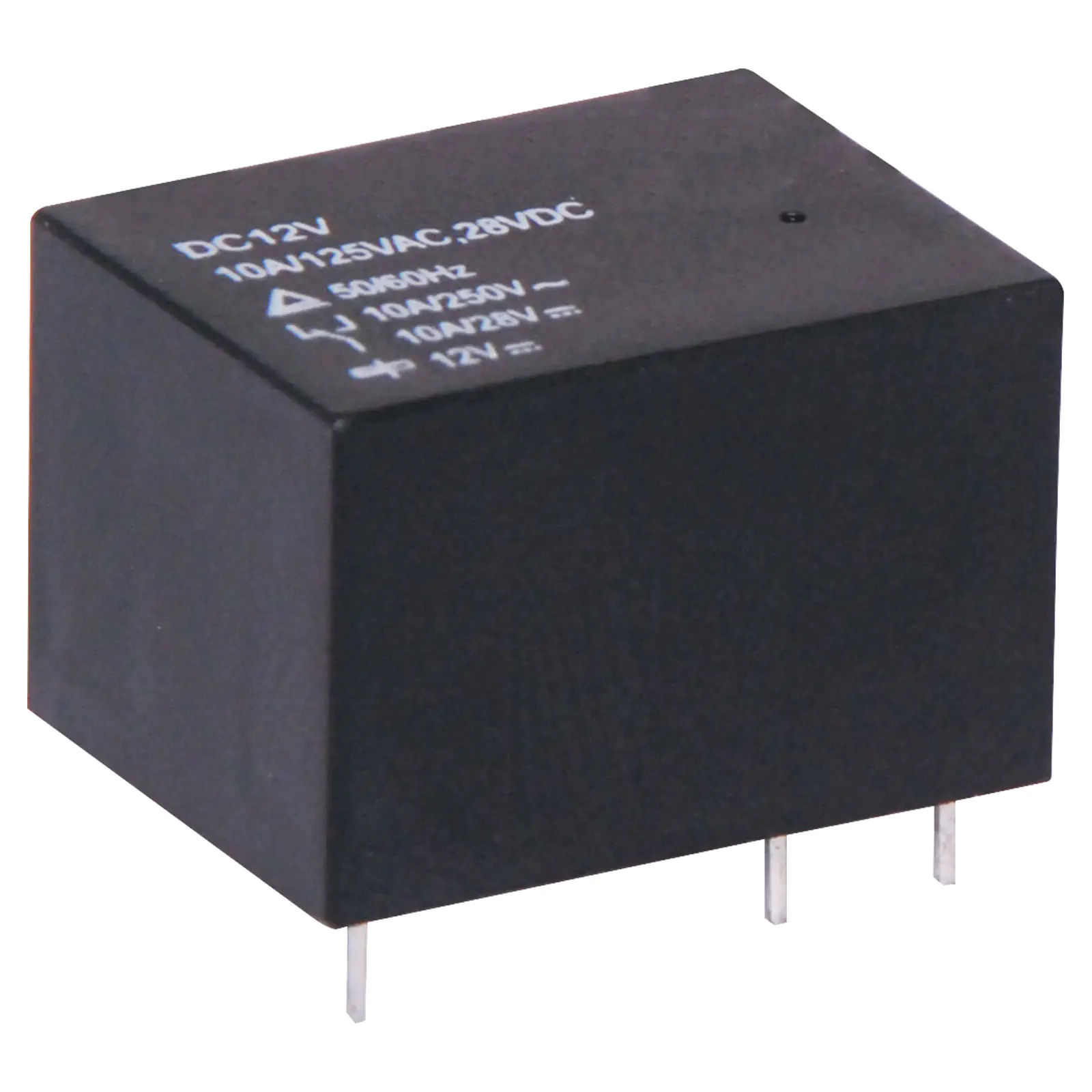

10A 12VDC SPDT PCB Mount Relay

SKU: S4202B
10A SPDT relay. PCB mount style. 12V DC coil.
$4.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.64
10+ $4.18
40+ $3.64
i h

Overview

10A SPDT relay. PCB mount style. 12V DC coil. Non-sealed type, suitable for flow soldering.

Specifications:



Max Switching Voltage: 380V AC, 110V DC

Max Switching Current: 10A

Max VA (Watts): 2400VA (336W)

Contact Material: Silver Nickel

Coil Resistance: 400Ω

Max Coil Power: 360mw

Insulation Resistance: >500MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

2500V AC between coil & contact

Electrical Life: 100,000 operations 5A 24V

Mechanical Life: 10 million operations

Dimensions: 22W x 17L x 15H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
