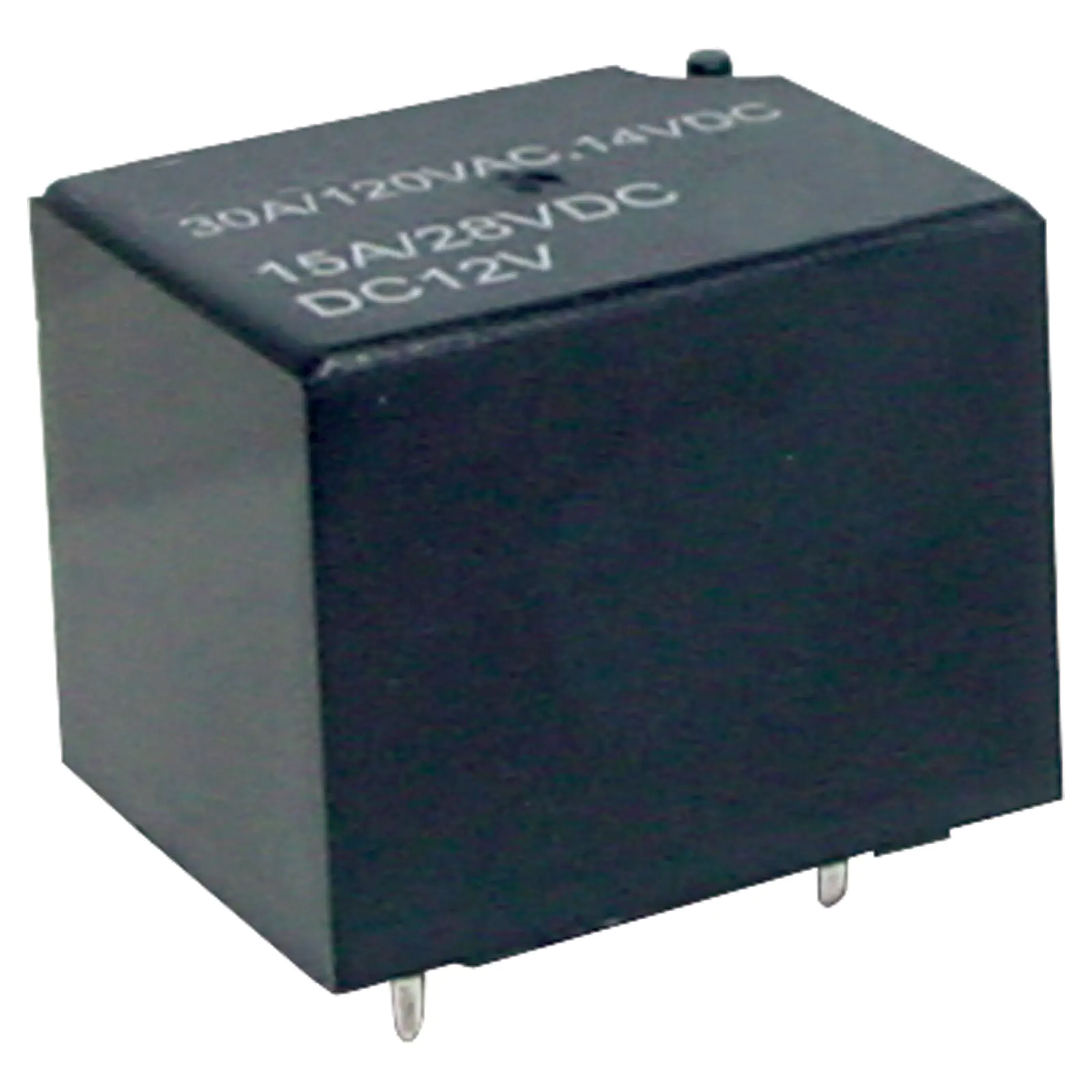

30A 12VDC SPDT PCB Mount Relay

SKU: S4206A
Max voltage:380V AC, 75V DC Max current:30A Max VA (Watts):2400VA (360W) Contact material:Silver Nickel Coil resistance (12V):90 Ohm Max coil power:1.6W Insulation resistance:>100M Ohm @ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 5000V AC between coil & contact Electrical life:100,000 operations Mechanical li
$5.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.45
10+ $4.91
40+ $4.32
i h

Overview

Specifications:



Max switching voltage: 380V AC, 75V DC

Max switching current: 30A

Max VA (Watts): 2400VA (360W)

Contact material: Silver Nickel

Coil resistance (12V): 90Ω

Max coil power: 1.6W

Insulation resistance: >100MΩ @ 500V DC

Dielectric strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical life: 100,000 operations

Mechanical life: 10 million operations

Dimensions: ≈ 25W x 20L x 20H mm

Fully sealed construction (immersion cleanable).

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
