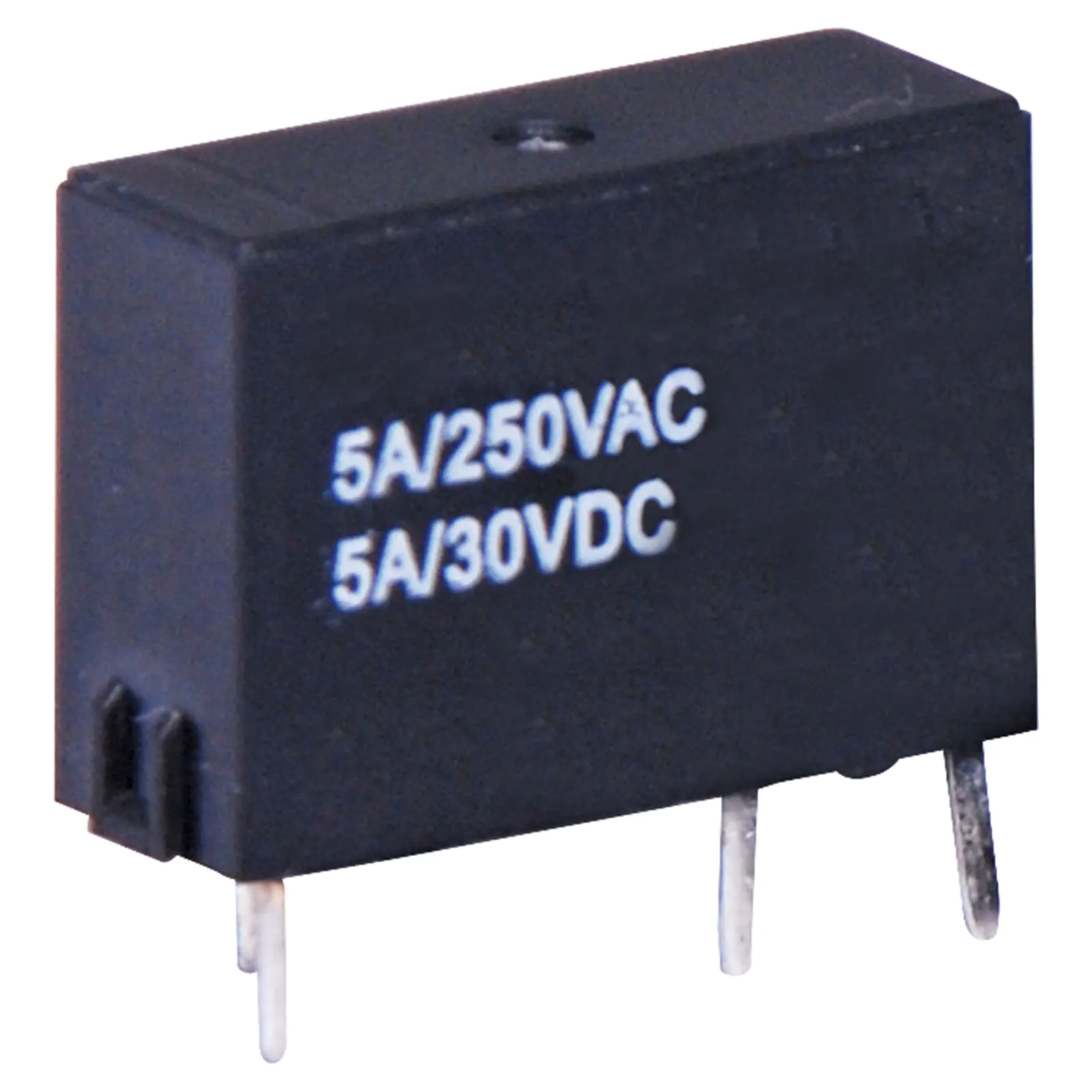

5A 5VDC SPST PCB Mount Mini Relay

SKU: S4230
5A SPST mini relay. PCB mount style. 5V DC coil.
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
10+ $6.82
40+ $6.23
i h

Overview

5A SPST mini relay. PCB mount style. 5V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.


Specifications:



Max Switching Voltage AC: 250V

Max Switching Voltage DC: 30V

Max Switching Current AC: 5A

Max Switching Current DC: 5A

Max Switching Power AC: 1250VA

Max Switching Power DC: 150W

Contact Material: Silver alloy

Coil Resistance (5V): 125Ω

Max Coil Power: 200mW

Insulation Resistance: >1000MΩ @ 500V dc

Dielectric Strength (for 1 min):

750V ac between open contacts

3000V ac between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 10 million operations

Dimensions: ≈ 6.5W x 17.5L x 12.5H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
