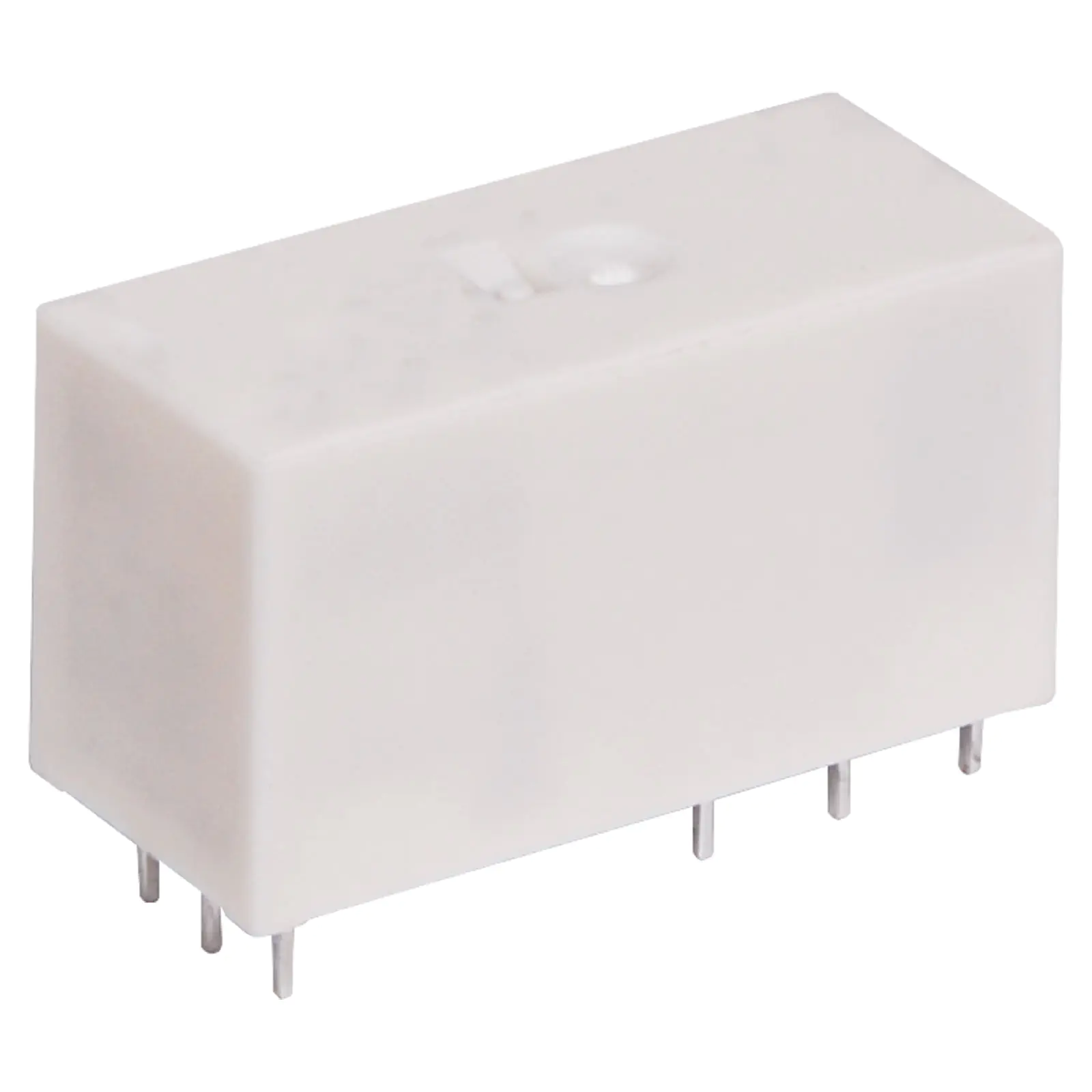

16A 12VDC SPDT PCB Mount Latching Relay

SKU: S4240
Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.
$10.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.45
10+ $9.41
40+ $8.45
i h

Overview

16A SPDT mini relay. PCB mount style. 12V DC coil. Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.

Specifications:



Max Switching Voltage AC: 440V

Max Switching Current AC (250V): 16A (2 coil 0.6W)

Max Switching Power AC: 4000VA

Contact Material: Silver alloy

Coil Resistance: 2 x 240Ω

Max Coil Power: 0.6W

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical Life: 50,000 operations

Mechanical Life: 5 million operations

Dimensions: 12.7W x 29L x 15.7H mm (excluding terminals)

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
