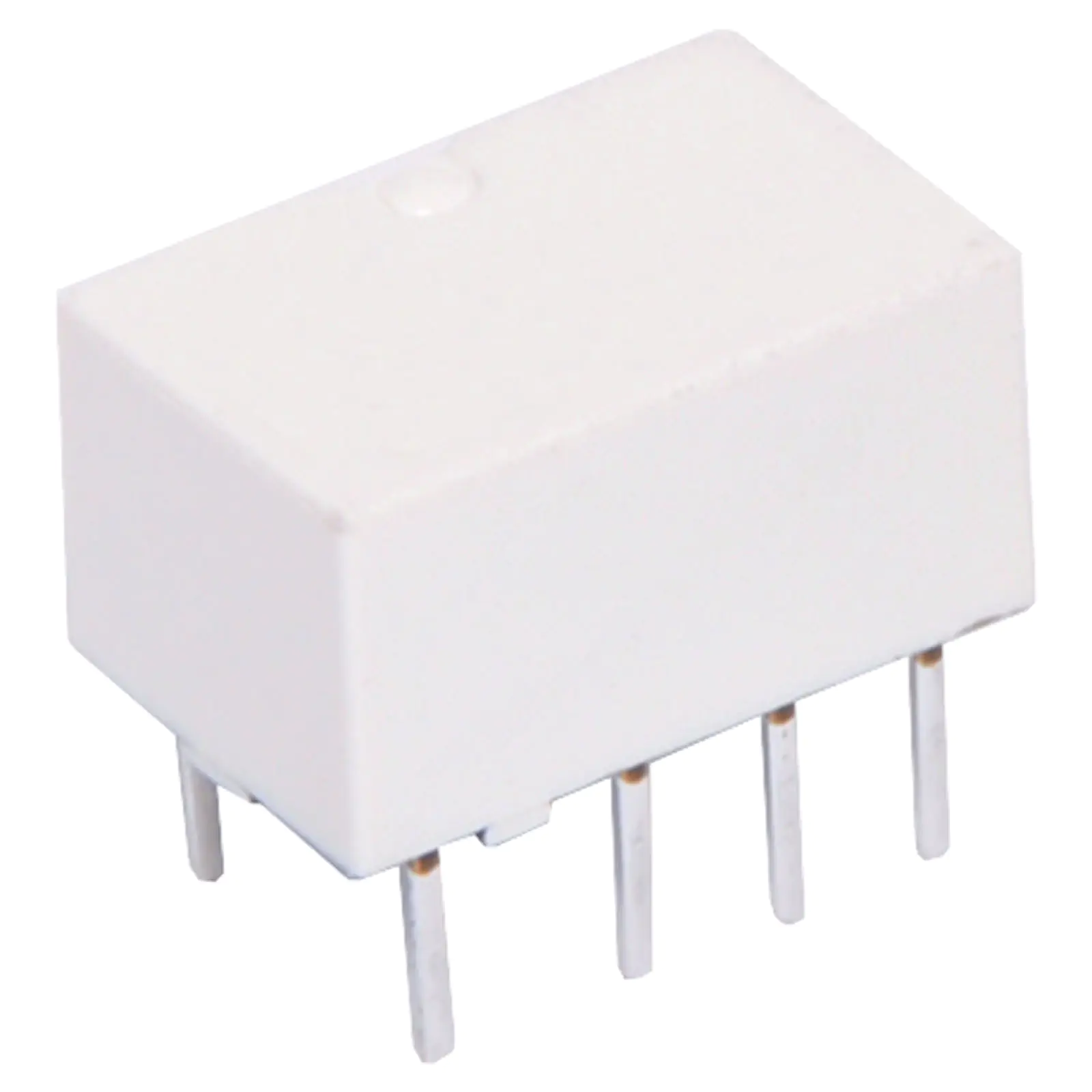

24V 2A DPDT Miniature PCB Signal Relay

SKU: S4245
A compact 2A DPDT mini signal relay. PCB mount style. 24V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.
$6.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.23
10+ $5.64
40+ $5.18
i h

Overview

A compact 2A DPDT mini signal relay. PCB mount style. 24V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications:



Max AC Rating: 0.5A @ 125V

Max DC Rating: 2A @ 30V

Max Switching Power AC: 62VA

Max Switching Power DC: 60W

Contact Material: Silver palladium + Gold plated

Coil Resistance (24V): 2880Ω

Max Coil Power: 200mW

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

1600V AC between coil & contact

Life: 100,000 electrical 0.5A 125V, 10 million mechanical

Dimensions: 10W x 6.5L x 5.4H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts DPDT
Type Telecom
