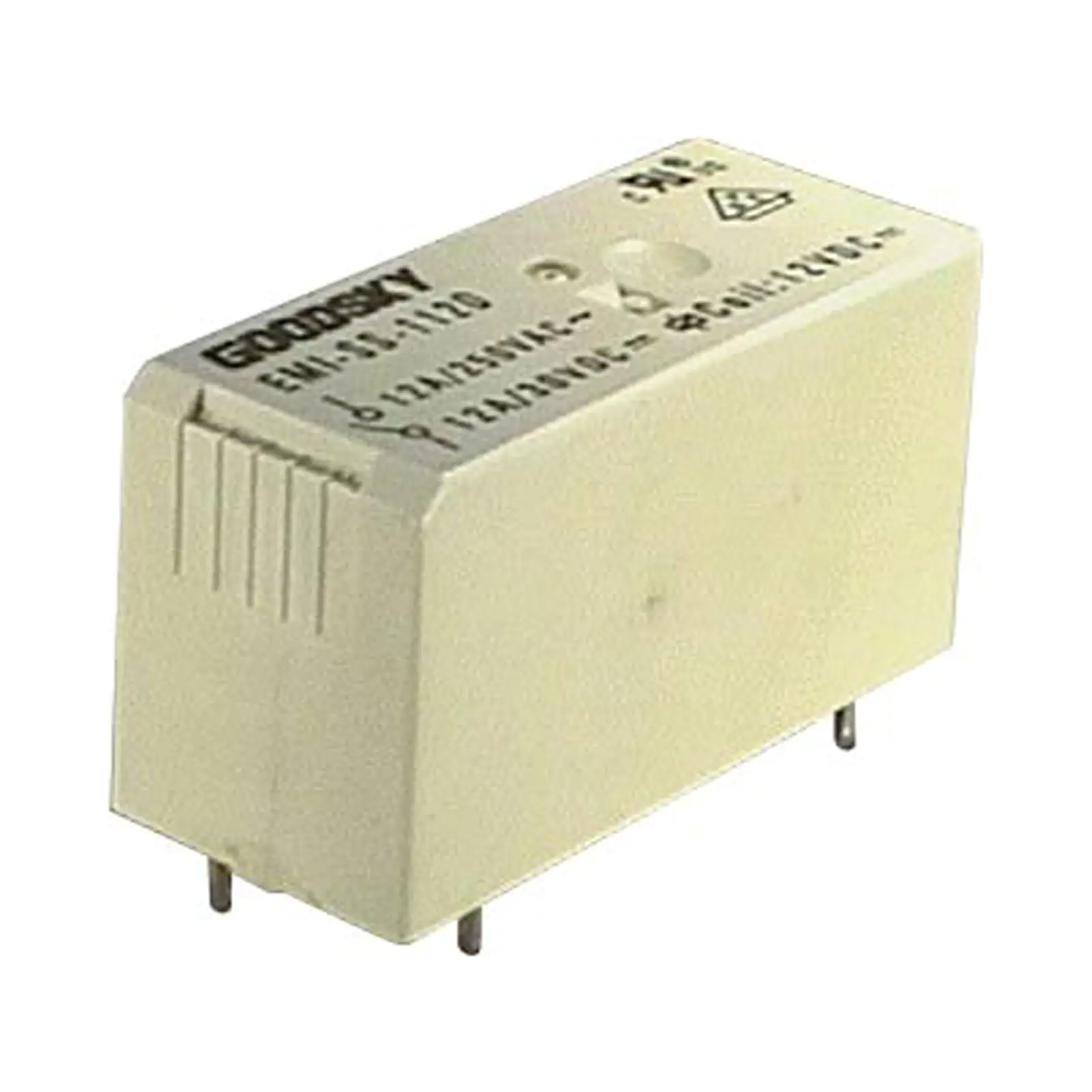

12A 12VDC SPDT PCB Mount Relay

SKU: S4260
Non-sealed type, suitable for flow soldering
$7.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.59
10+ $6.82
40+ $6.09
i h

Overview

Non-sealed type, suitable for flow soldering



Specifications:



Max switching voltage: 250V AC, 110V DC

Max switching current: 12A

Max VA (Watts): 3000VA (360W)

Contact material: Silver Alloy

Coil resistance: 360Ω

Max coil power: 400mw

Insulation resistance: >100MΩ@ 500V DC

Dielectric strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical life: 100,000 operations

Mechanical life: 10 million operations

Dimensions: ≈ 29W x 12.5L x 15.5H mm



Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
