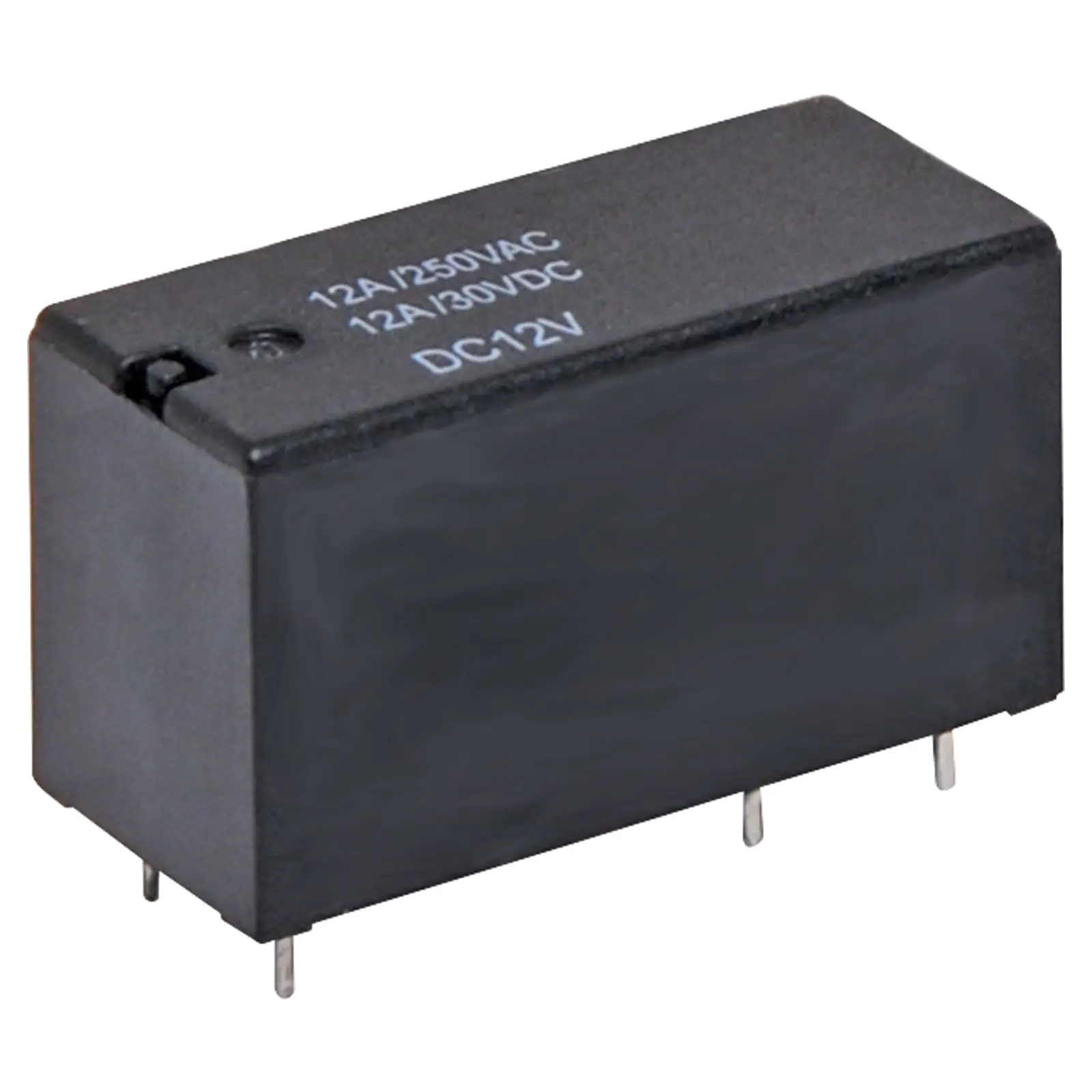

12A SPDT relay. PCB mount style. 12V DC coil. Non-sealed type, suitable for flow soldering. For plug in relay bases to suit, see S4182 and S4320.
Specifications:
Max Switching Voltage AC: 440V
Max Switching Voltage DC: 125V
Max Switching Current AC: 12A
Max Switching Current DC: 12A
Max Switching Power AC: 600VA
Max Switching Power DC: 480W
Contact Material: Silver alloy
Coil Resistance (12V): 351Ω
Max Coil Power: 400mW
Insulation Resistance: >1000MΩ @ 500V DC
Dielectric Strength (for 1 min):
1000V AC between open contacts
5000V AC between coil & contact
Electrical Life: 100,000 operations
Mechanical Life: 10 million operations
Dimensions: 29W x 12.7L x 15.7H mm
