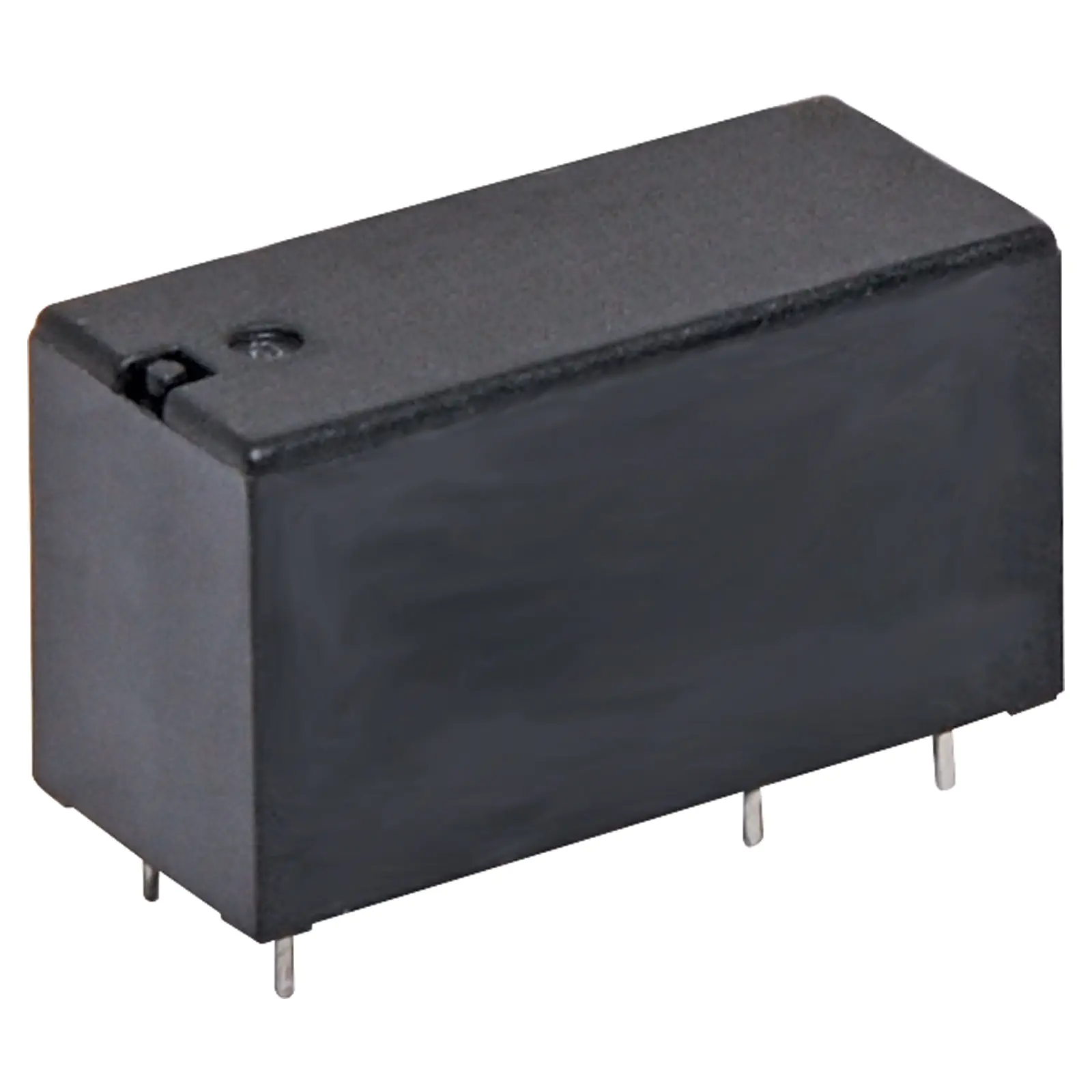

12A 24VDC SPDT PCB Mount Relay

SKU: S4262A
12A SPDT relay. PCB mount style. 24V DC coil. Non-sealed type, suitable for flow soldering.
$6.82

All Prices Shown are (ex GST)

Bulk Pricing
ea $6.82
10+ $6.14
40+ $5.45
i h

Overview

12A SPDT relay. PCB mount style. 24V DC coil. Non-sealed type, suitable for flow soldering. For plug in relay bases to suit, see S4182 and S4320.

Specifications:



Max Switching Voltage AC: 440V

Max Switching Voltage DC: 125V

Max Switching Current AC: 12A

Max Switching Current DC: 12A

Max Switching Power AC: 600VA

Max Switching Power DC: 480W

Contact Material: Silver alloy

Coil Resistance (12V): 1405Ω

Max Coil Power: 400mW

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

5000V AC between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 10 million operations

Dimensions: 29W x 12.7L x 15.7H mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
