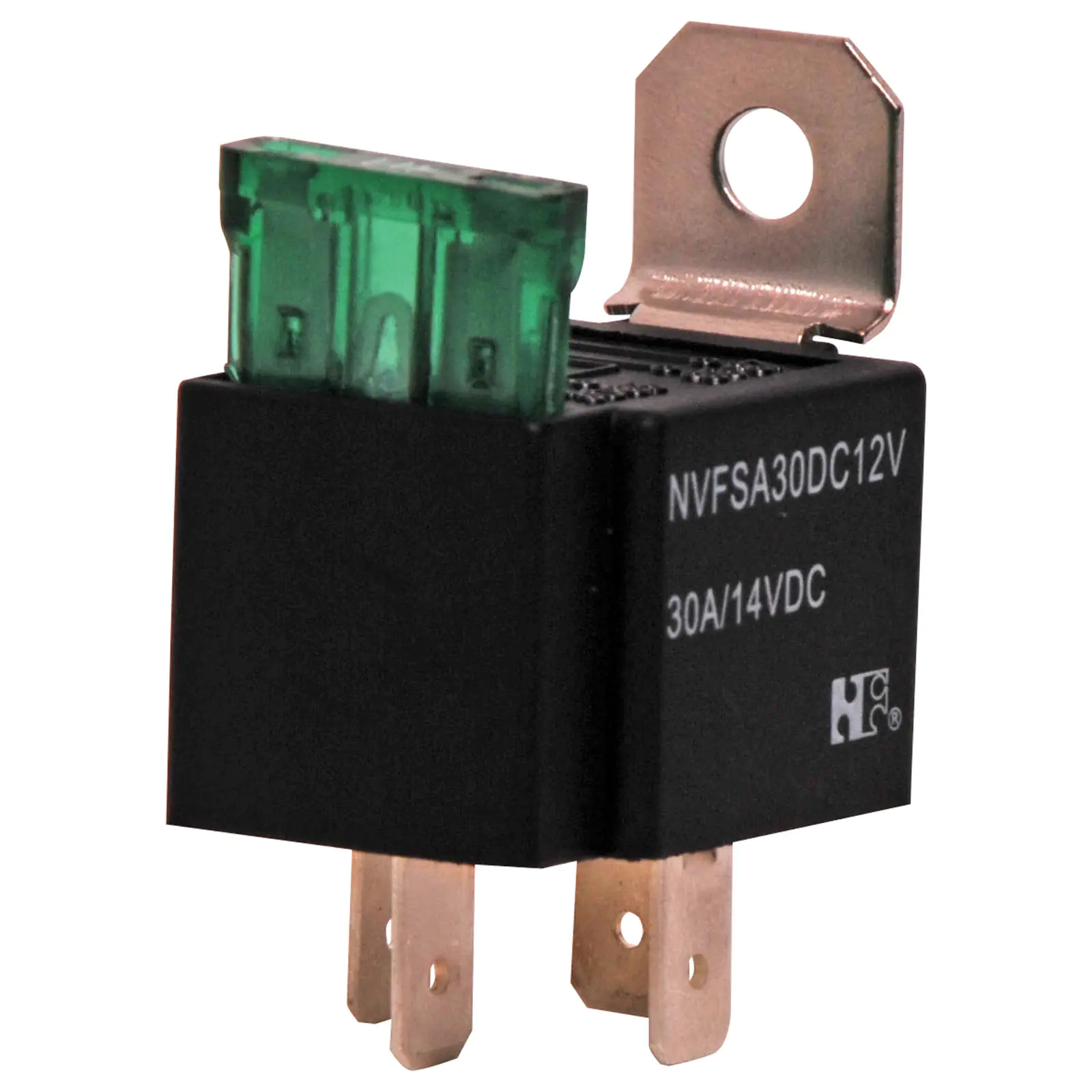

12VDC 30A SPST Fused Automotive Relay

SKU: S4330
Suitable for automotive applications such as alarms, lights, etc. Fitted with 30A blade fuse.
$10.45

All Prices Shown are (ex GST)

Bulk Pricing
ea $10.45
10+ $9.32
40+ $8.45
i h

Overview

30A SPST relay. 12V DC coil. Fitted with 30A blade fuse. Suitable for automotive applications such as alarms, lights, etc.

Note: Not suitable for AC use.



Specifications:



  • Max Switching Voltage DC: 75V
  • Max Switching Current DC: 30A
  • Max Switching Power DC: 420W
  • Contact Material: Silver tin dioxide
  • Coil Resistance: 80Ω
  • Max Coil Power: 1.8W
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 750V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 25.4W x 33.3L x 21.2H mm (excluding fuse and tab)

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
Type Automotive
