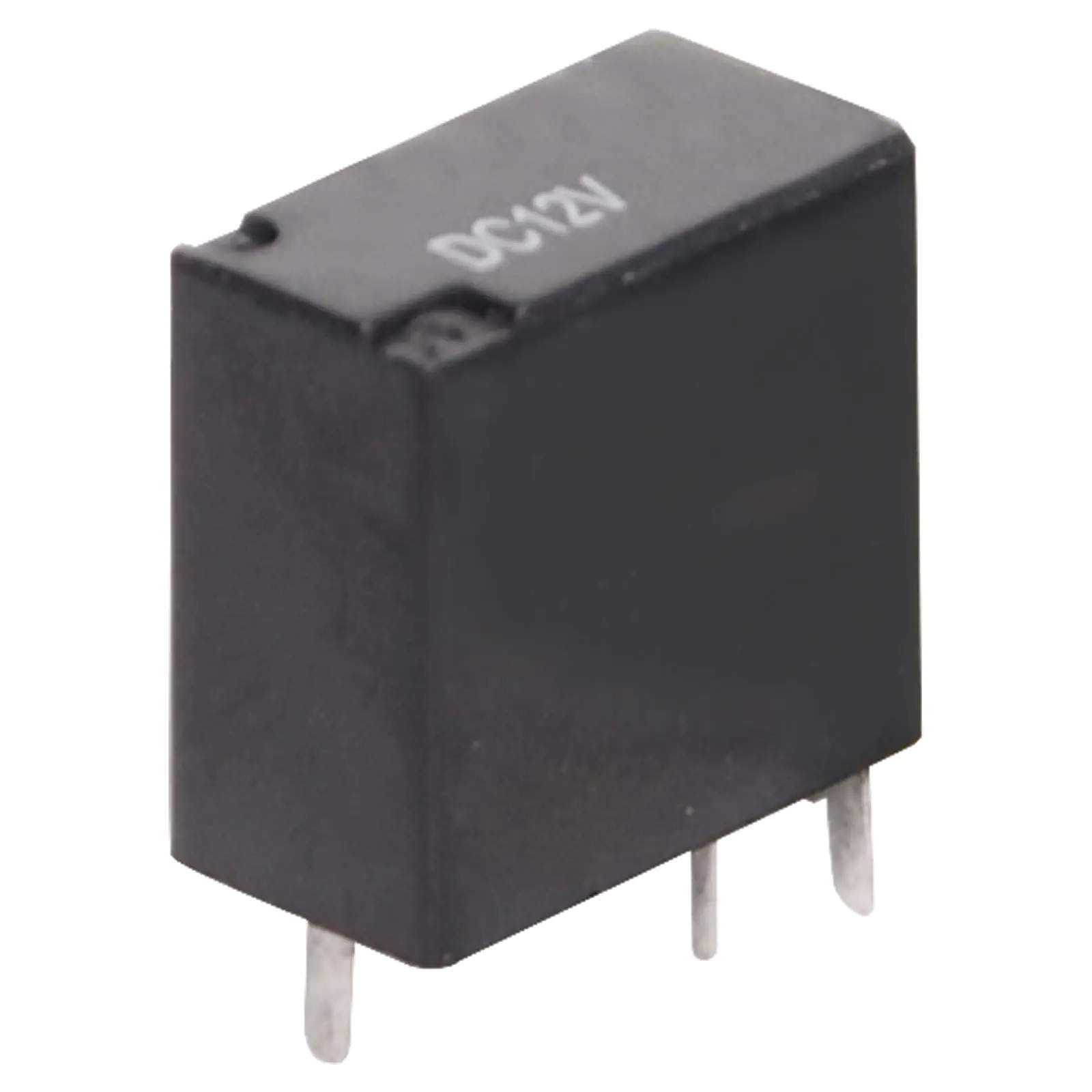

25A 12VDC SPDT Automotive Relay

SKU: S4333
A 25A SPDT relay. Automotive type. 12V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.
$3.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.41
10+ $3.09
40+ $2.73
i h

Overview

A 25A SPDT relay. Automotive type. 12V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications:



Max Switching Voltage AC: Not suitable

Max Switching Voltage DC: 16V

Max Switching Current AC: Not suitable

Max Switching Current DC: 30A

Max Switching Power AC: Not suitable

Max Switching Power DC: 480W

Max Continuous Current: 25A

Contact Material: Silver Tin Dioxide

Coil Resistance: 225Ω

Max Coil Power: 640mw

Insulation Resistance: >100MΩ @ 500V DC

Dielectric Strength (for 1 min):

500V AC between open contacts

1000V AC between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 10 million operations

Dimensions: 7.5W x 14.5L x 14H mm

Details

Products specifications

Warranty 12 Months
Switches
Type Automotive
Contacts SPDT

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Specification Sheet
PDF
