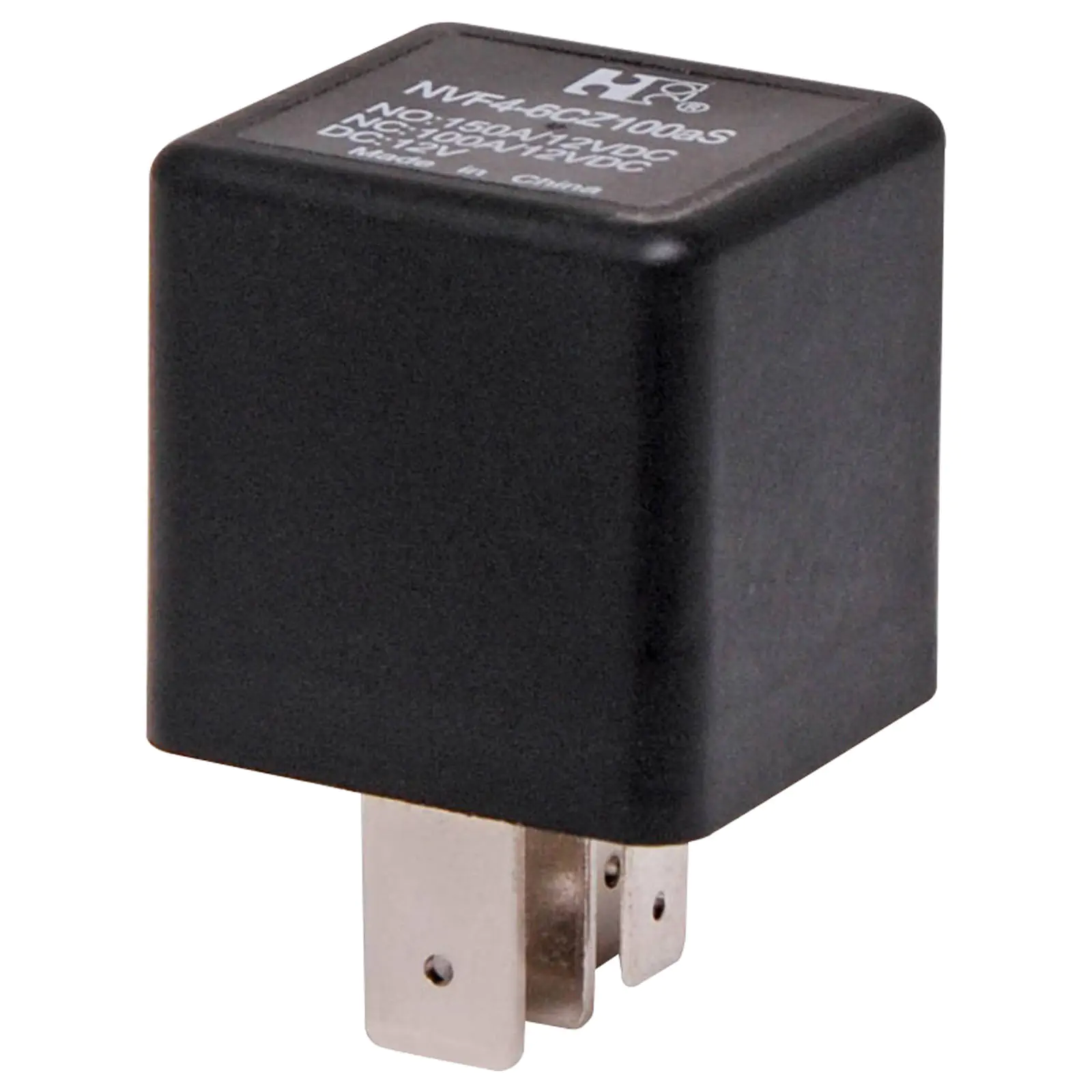

12VDC 150A SPDT Automotive Relay

SKU: S4347
Suitable for high current DC automotive applications.
$17.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $17.95
10+ $16.32
40+ $14.77
i h

Overview

A 150A SPDT relay. Automotive type. 12V DC coil.
Suitable for automotive applications such as alarms, driving lights, horns, fog lights etc.

Note: Not suitable for ac use.



Specifications:



Max Switching Voltage DC: 75V

Max Switching Current DC: 150A

Max Switching Power DC: 1800W

Contact Material: Silver tin dioxide

Coil Resistance (12V): 50Ω

Max Coil Power: 2.9W

Insulation Resistance: >100MΩ @ 500V dc

Dielectric Strength (for 1 min):

750V ac between open contacts

1000V ac between coil & contact

Electrical Life: 100,000 operations

Mechanical Life: 10 million operations

Dimensions: ≈ 33W x 35L x 33H mm

Coils: 6.3mm spade terminals

Armature: 9.5mm spade terminals

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPDT
Type Automotive
