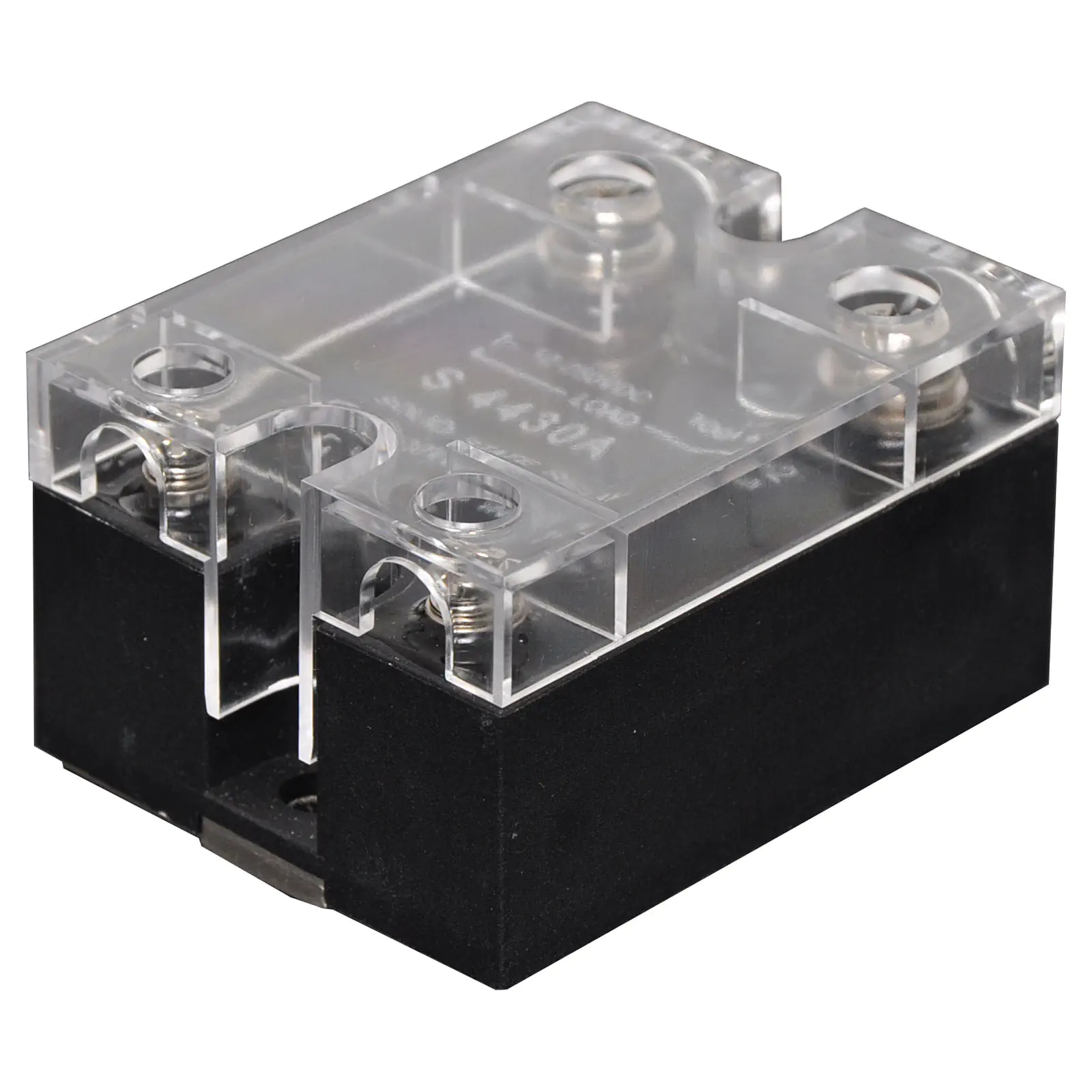

DC 100A SPST Solid State Relay

SKU: S4430A
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off. Switches DC only. 5-30V DC coil.
$62.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $62.68
10+ $56.59
25+ $50.23
i h

Overview

100A SPST relay. Solid state type. Switches DC only. 5-30V DC coil. No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off.



Specifications:

Control Voltage: 5-30V DC

Control Current: 4-25mA

Reverse Voltage: 30V DC

Closing Voltage: 1.5V DC

Opening Voltage: 3V DC

Load Voltage: 12-250V DC

Maximum Load Current: 10A-120A

Minimum Load Current: 0.08A

Breakover Voltage: ≤2V DC

Output Leakage Current: ≤1mA

Withstand Voltage: >2500V AC

Insulation Resistance: >100MΩ

Switching Time: <5mS

Load Current Safety Factor: 40-50% resistive, 20-30% inductive

Details

Products specifications

Warranty 12 Months
Switches
Type Solid State
Contacts SPST
