24V 5 Way DPDT Relay Board

SKU: S4445

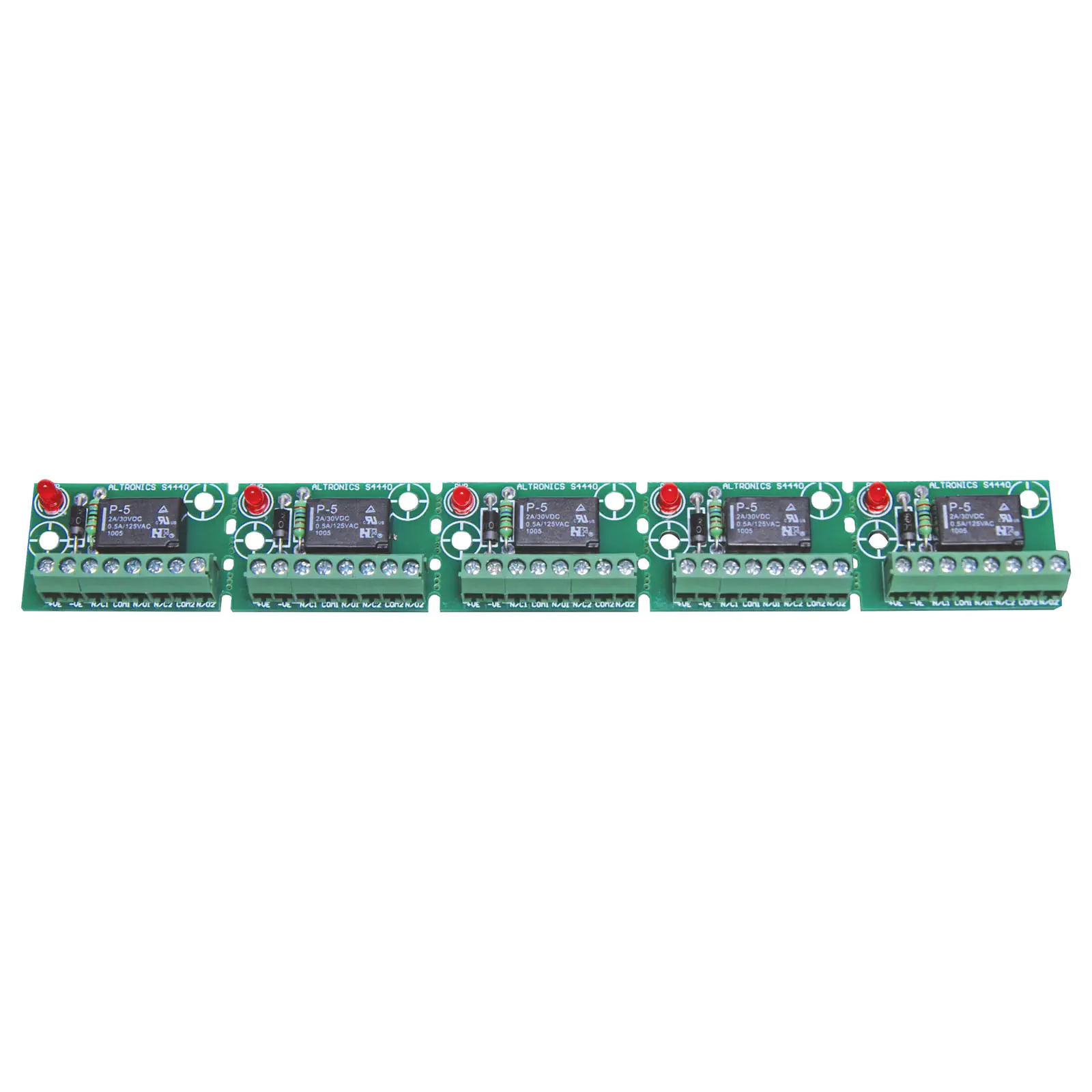

The S 4445 is a handy 5 way "snap off" strip board fitted with 5x 24V (S4138) relays. Two sets of changeover contacts are provided. An on board LED illuminates when the relay is activated. For 5V operation use S 4441 board. For 12V operation use
$57.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $57.50
4+ $53.86
10+ $50.23
i h

Overview

The S4445 is a handy 5 way "snap off" strip board fitted with 5x 24V relays. Two sets of changeover contacts are provided.
An on board LED illuminates when the relay is activated. Size: 32.5W x 22.5Dmm. 3.2mm hole size.

For 5V operation use S4441 board.
For 12V operation use S4443 board.

Note: For information and specs on the relay see S4132B.



Specifications:



Max Switching Voltage: 250V AC, 220V DC

Max Switching Current: 0.5A AC, 1A DC, 0.5A AC

Max VA (Watts): 62VA (30W)

Contact Material: Silver Palladium

Coil Resistance: 2880Ω

Max Coil Power: 200mw

Insulation Resistance: >1000MΩ @ 500V DC

Dielectric Strength (for 1 min):

1000V AC between open contacts

1000V AC between coil & contact

Electrical Life: 200,000 operations 1A 24V

Mechanical Life: 10 million operations

Dimensions: 14W x 9L x 5H mm



Features:

  • LED indicator
