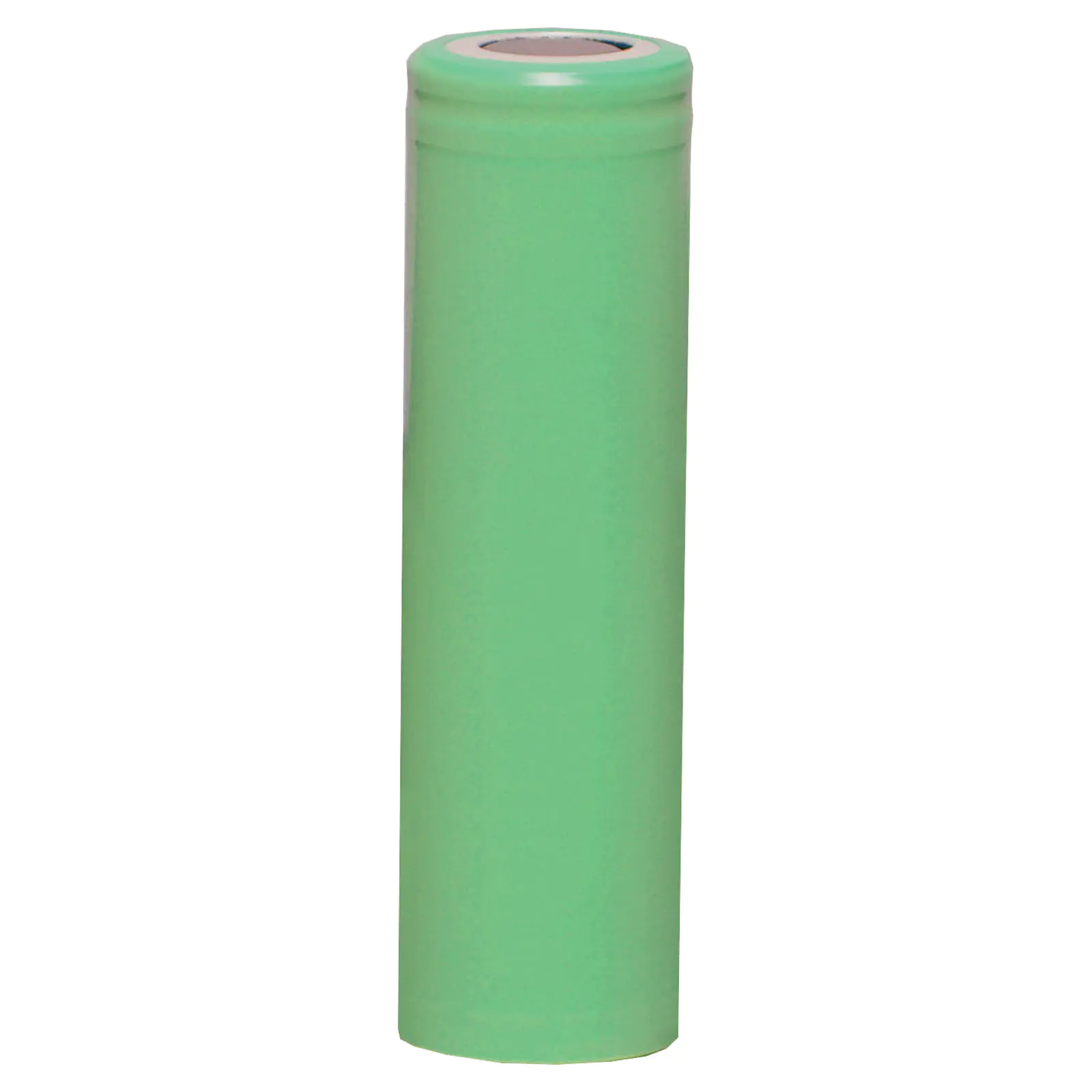

These high performance 18650 lithium ion 3.7V batteries offer high performance and long life from a compact package. They are 18.6mm in diameter and 65mm long.

18650 2600mAh Li-Ion Rechargeable Battery

Name: 18650 2600mAh Li-Ion Rechargeable Battery
SKU: S4736A
Price: 16.32 AUD
Availability: InStock

by: NEXCell

SKU: S4736A

These high performance 18650 lithium ion 3.7V batteries offer high performance and long life from a compact package. They are 18.6mm in diameter and 65mm long.

$16.32

All Prices Shown are (ex GST)

Bulk Pricing

ea	$16.32
4+	$14.68
10+	$13.05

i h

Overview
Details
Warranty
Downloads

Overview

These high performance 18650 lithium ion 3.7V batteries offer high performance and long life from a compact package. They are 18.6mm in diameter and 65mm long. Lithium-ion rechargeables offer excellent properties for use in consumer devices, including excellent energy density and low maintenance. Lithium-ion do not suffer from memory effect and possess no regular cycling that batteries often require to extend their service life.

Note: These are an unprotected cell and should only be used in situations where a charging circuit is controlling the discharge and recharge of the cell. Incorrect usage of lithium cells can cause fire and advice should be sought before utilising them in any circuit for your project.

Common applications for 18650 cells include:

Laptop computers

LED flash lights

Electric vehicles

Power tools

Converting AA or AAA powered products over to higher performance (providing voltage matches).

Specifications:

Nominal Capacity: 2600mAh (0.2C, 2.75V discharge)

Minimum Capacity: 2550mAh(0.2C, 2.75V discharge)

Charging Voltage: 4.2 ±0.05 V

Nominal Voltage: 3.7V

Charging Method: CC-CV (constant voltage with limited current)

Charging Current: Standard charge: 1300mA, Rapid charge : 2600mA

Charging Time: Standard charge : 3hours, Rapid charge : 2.5hours

Max. Charge Current: 2600mA (ambient temperature 25°C)

Max. Discharge Current: 5200mA (ambient temperature 25°C)

Discharge Cut-off Voltage: 2.75V

Cell Weight: 47.0g max

Cell Dimension: Height: 65.00mm max, Diameter: 18.40mm max,

Operating Temperature: Charge: 0 to 45°C, Discharge: -20 to 60°C

Storage Temperature 1 year: -20~25°C, 3 months: -20~45°C, 1 month: -20~60°C

Details

Products specifications

Warranty	12 Months
Power
Type	Lithium Batteries
Size	18650 Size

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Specification Sheet

PDF
