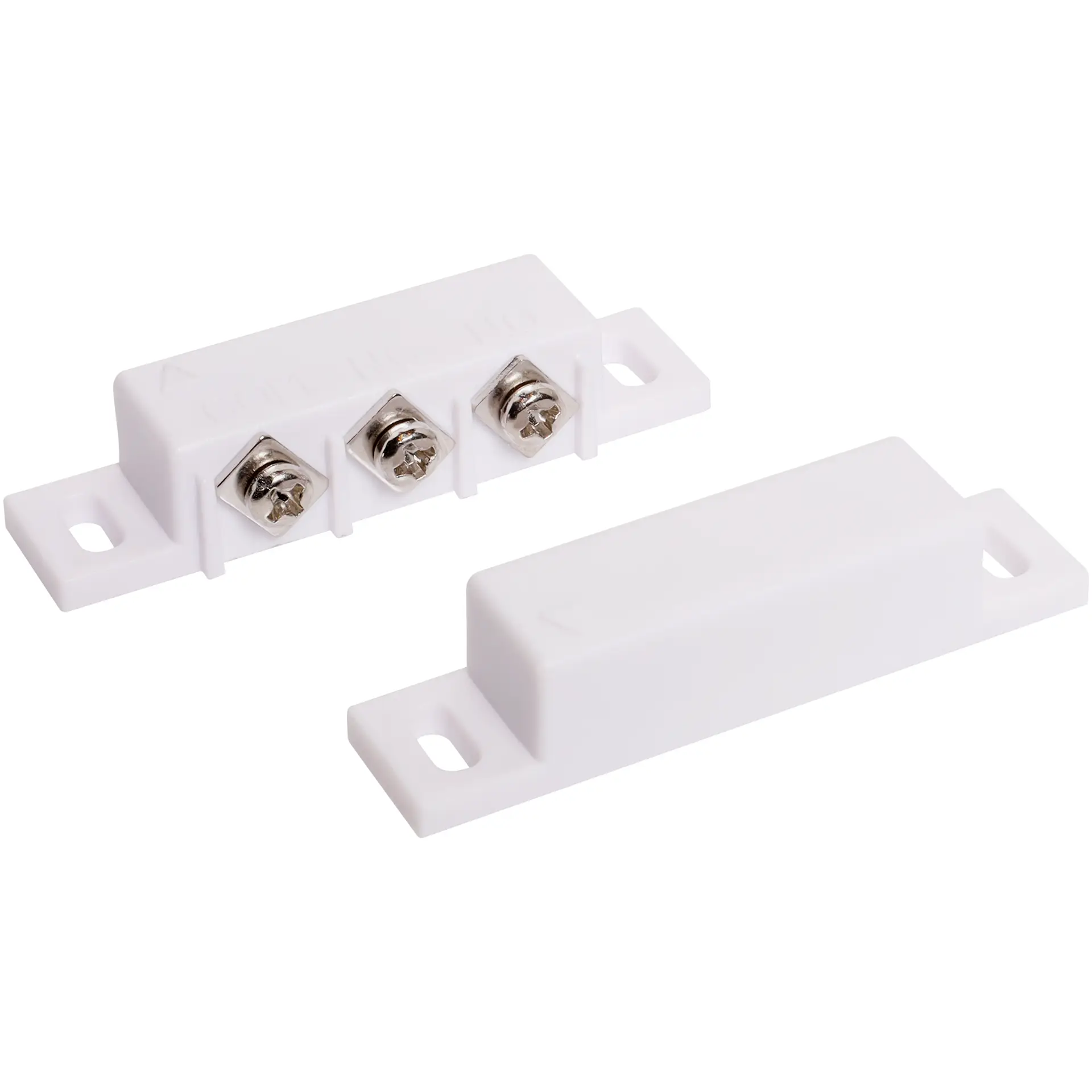

SPDT Surface Mount Magnetic Reed Switch

SKU: S5153A
Surface mount with terminals. SPDT for N.O. and N.C. applications. Includes matching magnet. Approx. 55 x 12 x 11mm size
$7.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.73
4+ $6.82
10+ $6.32
i h

Overview

A small magnetic reed switch designed for surface mounting. Fitted with screw terminals. SPDT for N.O. and N.C. applications. Includes matching magnet. Approx. 55 x 12 x 11mm size.



Specifications:



Dimensions: 55 x 12 x 11mm

Material: ABS

Colour: White

Sensing Gap: 15-25mm

Output: COM (NO & NC)

Current/Voltage/Power: 0.2A/30V/3W

Installation: Screw mount

Connection: Terminals block wiring



Parameters:

Contact from: Form C

Voltage (V-max): 30V

Current (V-max): 0.2A

Rating (V-max): 3A

Contact Resistance (max): 100mΩ

Operate time (max): 0.5ms

Operating Frequency (max): 400Hz

Pull in Value: 08-35 AT

Contact capacitance (max): 0.5pF
