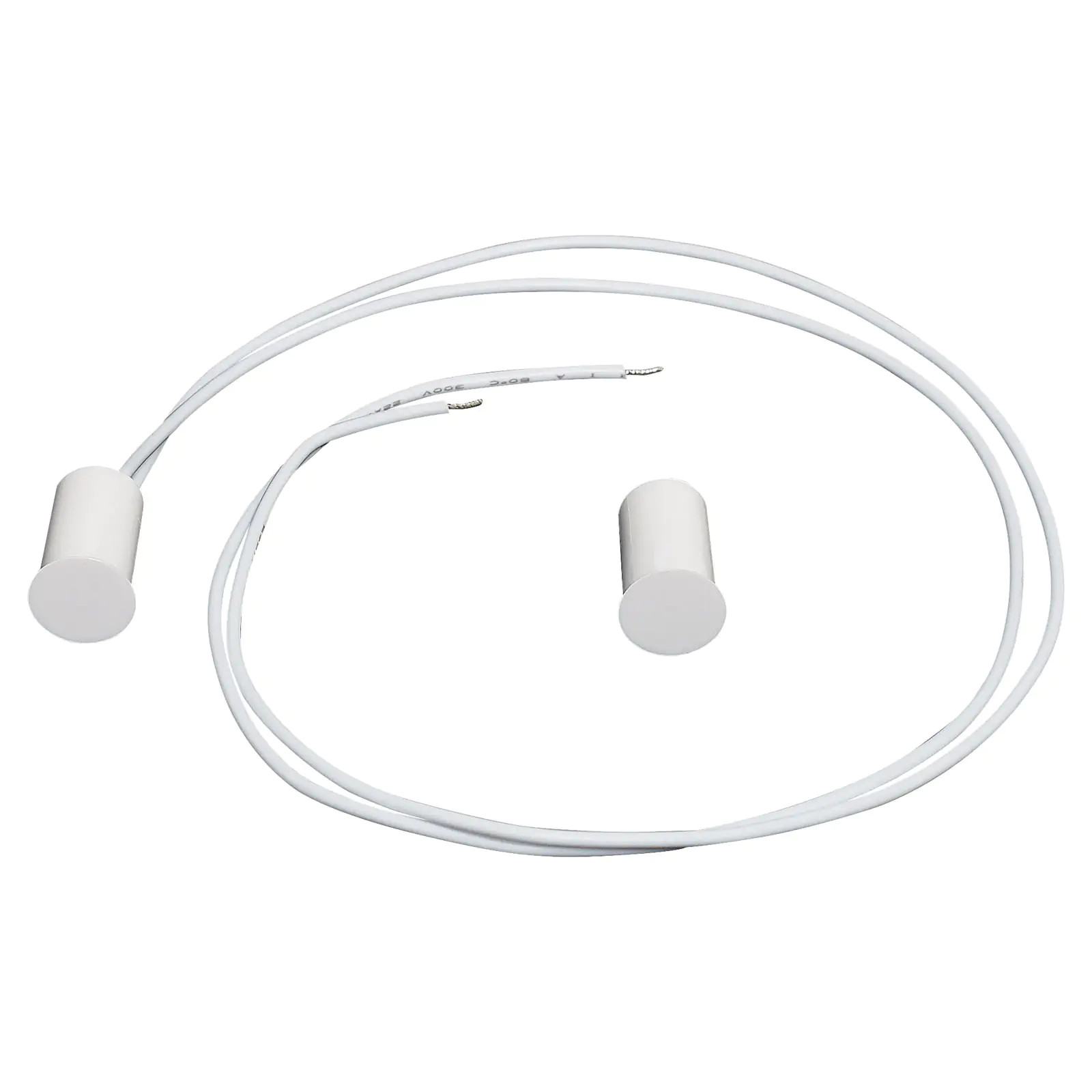

Wood Door Flush Mount Magnetic Reed Switch

SKU: S5154C
Ideal for wooden door frames. Includes matching magnet. Press fit design. 9.5mm mounting hole 12mm working distance normally closed (when next to magnet)
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
4+ $4.73
10+ $3.95
i h

Overview

A concealed magnetic reed switch designed for use with wooden door frames in security applications. Includes matching magnet. Press fit design. 9.5mm mounting hole. 12mm working distance. Normally closed (when next to magnet).





Specifications:



Approved:CCC / CE / FCC / RoHS

Contact type:NC——Switch ON when magnet nearly

Operating gap:=15mm (Undisturbed test)

Max. switching voltage:100V DC/AC

Max. switching current:0.5A

operating load:10W

Working temperature:-20~80℃

Working life:>100000 times

Connection type:350mm 1007/22# AWG

Material:ABS

Color:White / Brown

Packaging:20 sets/bag,1600 sets/ctn

G.W.:15KGS

Dimensions (mm):refer to diagram
