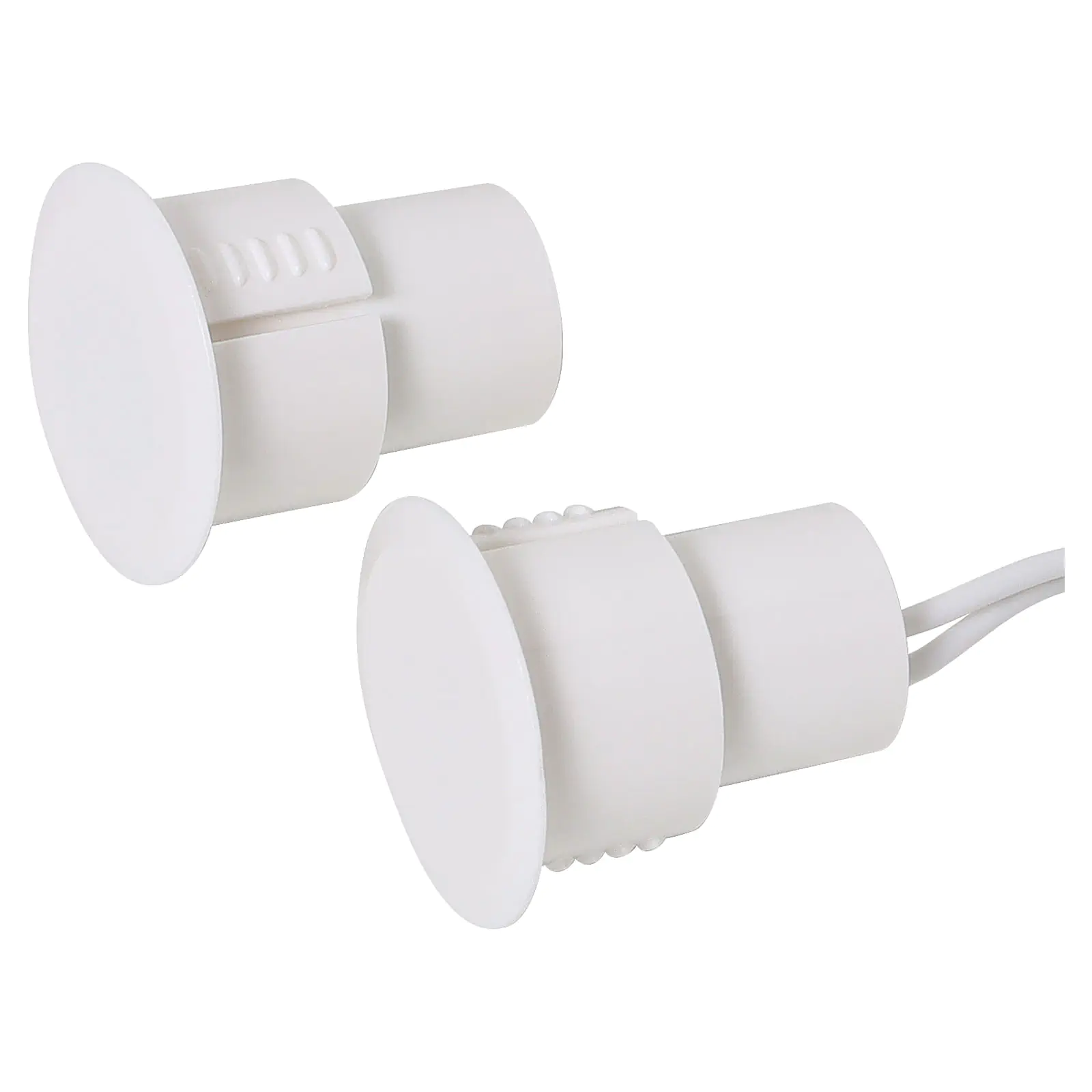

Flush Mount Magnetic Reed Switch Normally Closed

SKU: S5158C
A concealed magnetic reed switch designed for use with metal door frames.
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
4+ $7.59
10+ $6.82
i h

Overview

A concealed magnetic reed switch designed for use with metal door frames. Magnetic contact is widely used for alarm systems to detect the state of the door. It consists of a reed switch and a magnet. With the door closed, the magnet engages with the reed switch, the circuit is closed (normally closed N/C). When the door opens, the magnet disengages the reed switch, the circuit then becomes open. The open circuit can then be used to trigger an alarm.



Specifications:

 Contact Type: NC - Switch ON when magnet near

Operating Gsp: =30mm

Max Switching Voltage: 100V DC/AC

Max Switching Current: 0.5A

Operating Load: 10W

Working Temperature: -20 ~ 80°C

Working Life: >100,000 times

Connection Type: 350mm 1007/22AWG

Material: ABS
