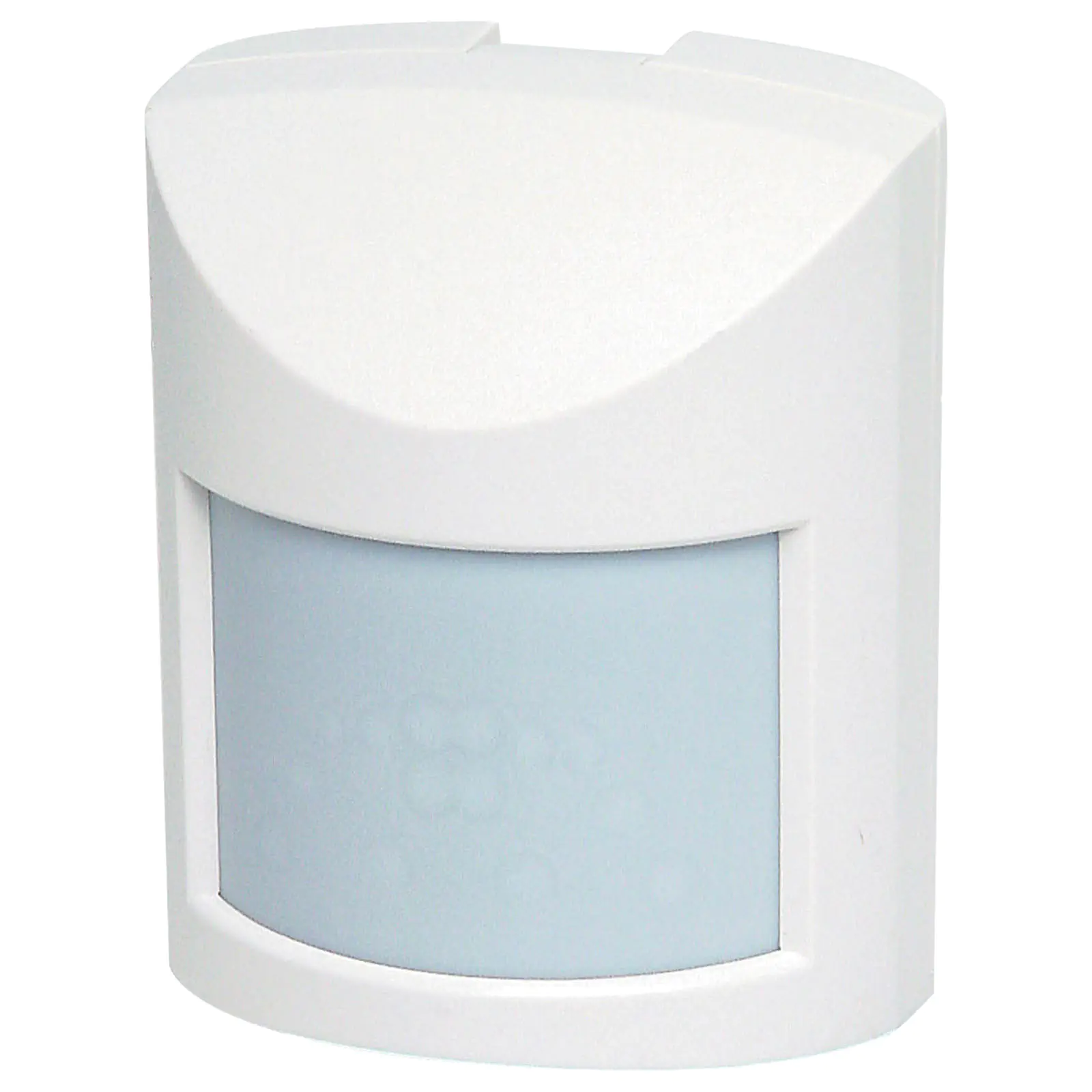

Quantum Quad Element Passive Infra Red (PIR) Detector

by: NESS
SKU: S5305A
A high quality Passive Infra Red (PIR) movement/motion sensor for security systems.
$45.00

All Prices Shown are (ex GST)

Bulk Pricing
ea $45.00
4+ $43.18
10+ $40.00
i h

Overview

Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustments providing the flexibility to use the Quantum-Q in most environments. Perfect for most domestic and commercial installations, Quantum-Q detector offers quality, performance and reliability at the right price.





Specifications:



Mounting Height: 1.1m min, 3.1m max, 2.1m~2.3m optimal

Coverage: Up to 15m x 15m @ 90°

Detection Zones: 20 quad element zones

Pulse Count: Selectable 1–2 or 3–4

Range: Selectable High/Low. 15m max./12m max

Sensor: Quad element pyroelectric

Alarm Indication: Red LED

Relay Output: Solid state relay, normally closed contacts, 100mA max.

Tamper Output: Normally closed switch

Warm Up Time/Alarm Time: 30 seconds / 5 seconds

Operating Voltage/Current: 9 ~ 15V DC / 7mA

Operating Temperature: 0º-50ºC

Dimensions: 85H x 66W x 45D mm

Details

Products specifications

Warranty 3 Years
