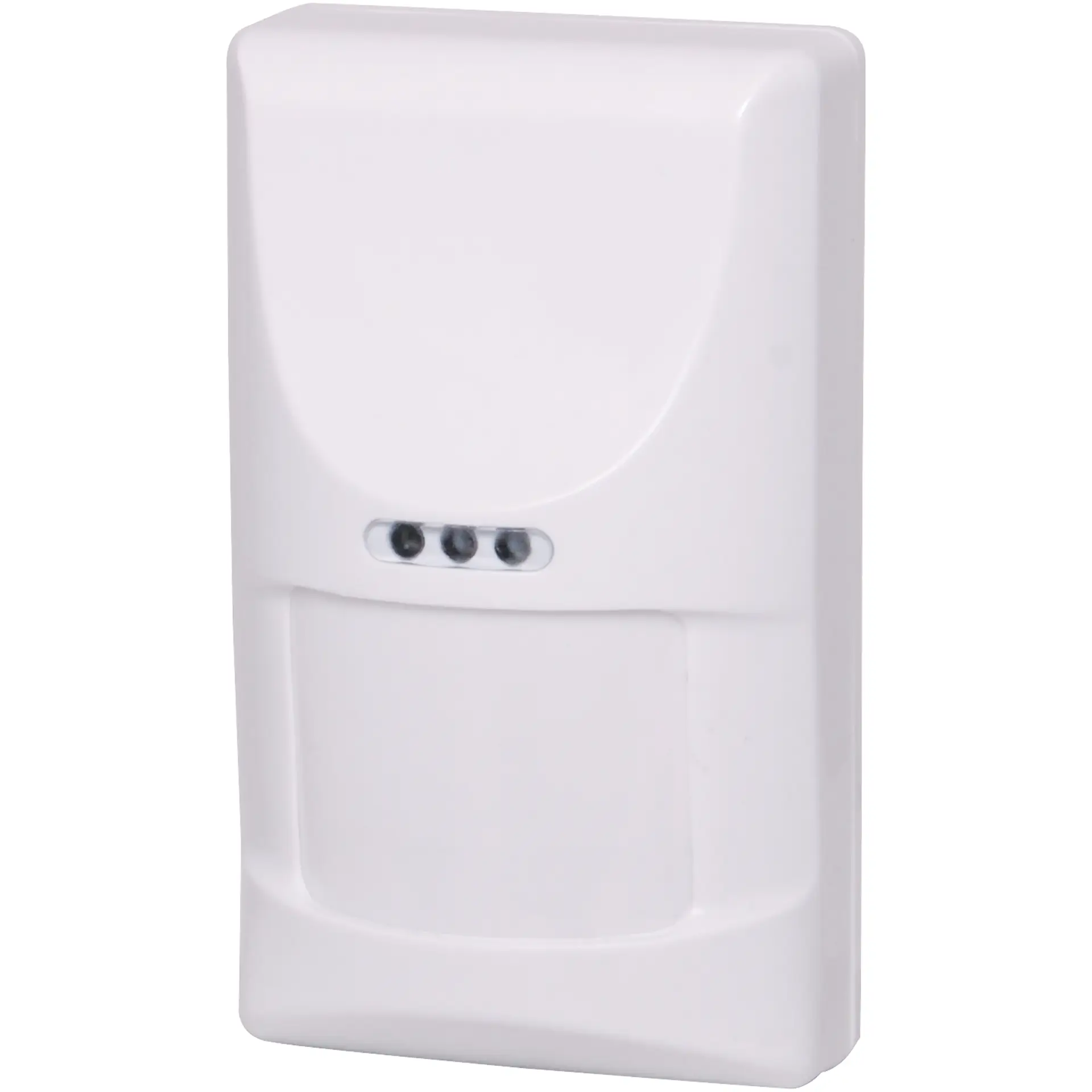

Economy PIR Detector Standard Lens

SKU: S5308
These compact, easy to install, passive infra red (PIR) movement detector sensors offer excellent movement detection for alarm systems at an affordable price. They feature NC or NO contact output, 2/3 selectable pulse count and 12m detection range. An internal tamper switch ensures units cannot be deactivated by intruders.
$26.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $26.14
6+ $23.59
12+ $20.86
i h

Overview

These compact, easy to install, passive infra red detectors offer excellent movement detection for alarm systems at an affordable price. They feature NC or NO contact output (30V DC @ 0.2A max), 2/3 selectable pulse count and 12m detection range. An internal tamper switch ensures units cannot be deactivated by intruders.







Specifications:



Infrared Sensor: Dual element

Power supply: 9-16V DC (12V DC Typical)

Detection range: 12 x 12 Meter 110

Current Drain: NC:5mA, NO 15mA@12V DC

Alarm Output: NC/NO 30V DC 200mA

Alarm Period: 1.5-2.5 sec

Pulse count: 2/3 Selectable

Tamper Switch: NC

Walk Test LED: Red LED, Can be disabled

RFI Immunity: Ave:20V/m (10-1.000MHz)

Detection Speed: 0.3-1.5m/sec

Mounting Height: 2.2-2.4 meter Suggested 2.3 meters

Humidity: 95% Rh

Temperature: -20°C to 60°

Dimensions: 109 x 65 x 4mm



Features:

  • Includes swivel wall bracket
  • Low standby current - only 5mA
  • NC/NO alarm contacts
  • 12x12m 110° detection range
  • 9-16V DC operation
  • 2/3 selectable pulse count
  • Walk test LED
  • Compact size, 109x65x46mm
