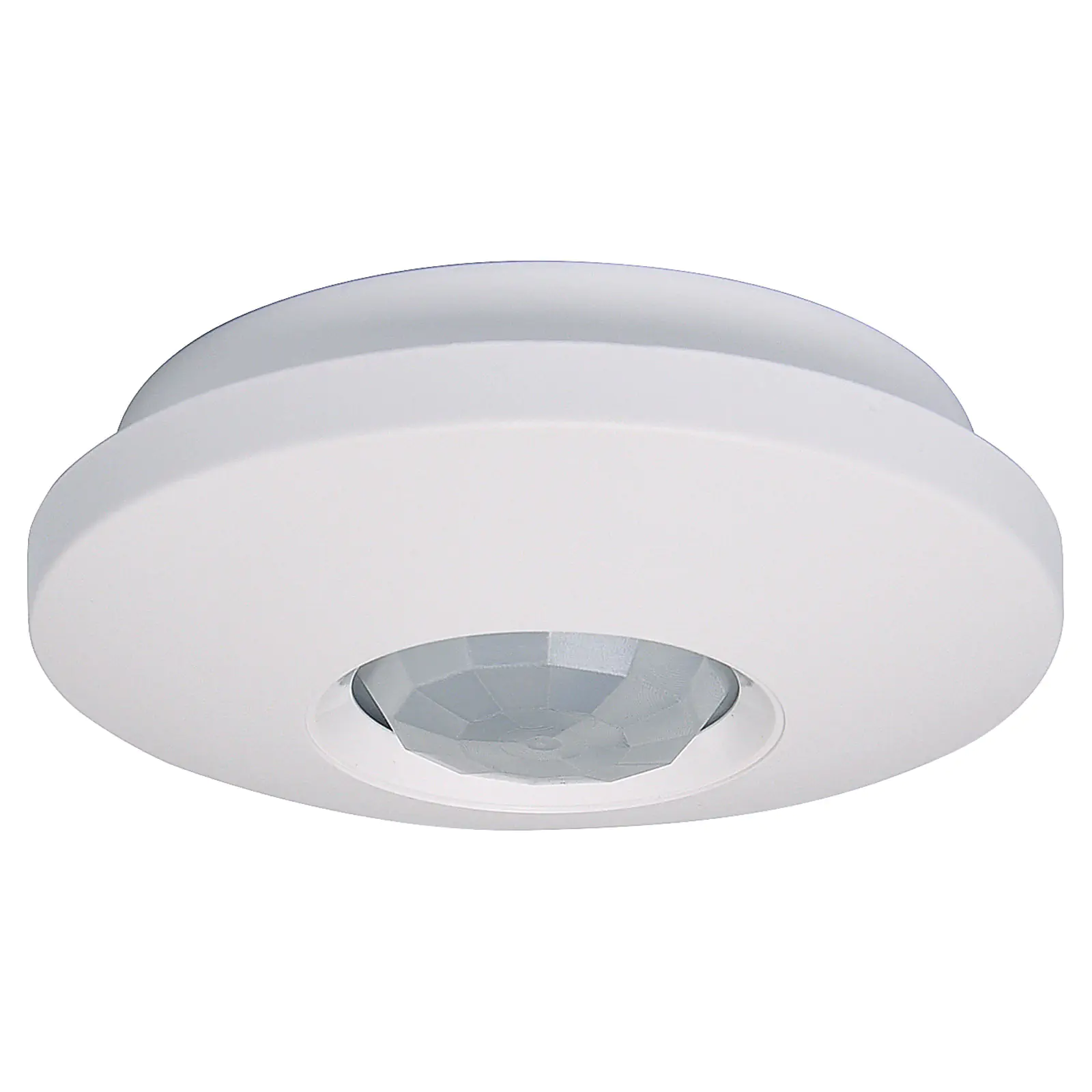

PIR 360&deg Quantum Detector

by: NESS
SKU: S5310
The PIR 360° Quantum Detector is a unique motion Passive Infra Red (PIR) detector sensor for complete and reliable 360° coverage. Designed for the latest generation of NESS control panels.
$62.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $62.73
4+ $59.09
i h

Overview

The PIR 360° Quantum Detector is a unique motion detector for complete and reliable 360° coverage designed for the latest generation of Ness control panels. Installed in rooms or in hallways, it provides 12 metre diameter coverage at floor level when installed on a standard 2.4 metre ceiling. It protects you by detecting intruders body temperature using infra-red technology. Its discrete in size and has been designed for a range of interiors. Has a detection range of 12m.





Specifications:



Mounting Height: 2.4 m for best coverage

Coverage: 12m x 12m pattern at floor level

PIR Sensor: Dual element pyroelectric

Range Select: Selectable High/Low

Pulse Count: Selectable 1–2 or 3–4.

Visual Display: Red Alarm LED

Operating Voltage: 9 - 15 VDC

Dimensions: 102D x 30H mm

Alarm Period: 5 seconds

Warm up period: 30 seconds

Current Draw: 15mA

Alarm Output: Normally closed relay, dry contacts. Max. 0.5A@24V

R.F.I. Immunity: > 15V/m @ 10-1000MHz

Tamper Output: Normally closed dry contacts



Features:

  • Detects motion
  • 360° coverage
  • Tamper Protection
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • Easy to install
  • 12m Detection Range
