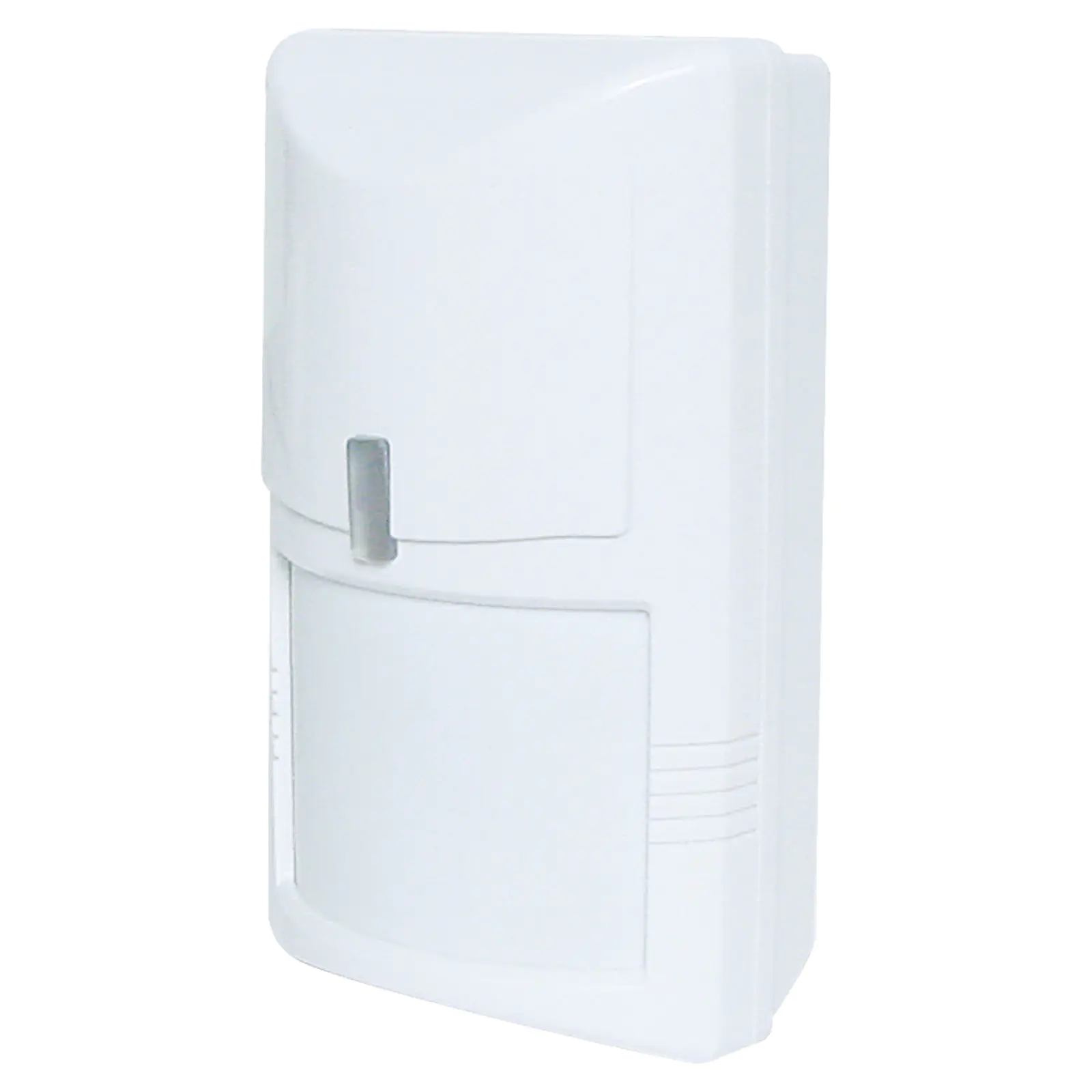

Passive Infra Red (PIR) Movement Detector

SKU: S5314A
Easy to install Passive Infra Red (PIR) movement sensor with dual look down detection. Features excellent temperature compensation and selectable pulse count. Its stylish countoured shape virtually disappears once installed into the corner of any room.
$45.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $45.41
4+ $40.86
10+ $36.32
i h

Overview

Easy to install PIR with dual look down detection. Features excellent temperature compensation and selectable pulse count. Its stylish contoured shape virtually disappears once installed into the corner of any room.

Vertical range is adjustable and a high quality noise reduction circuit ensures reliable detection. Superior RFI/EMI immunity.





Specifications:



Power Supply: 9-16V

Current Drain: NO 8mA @ 12V DC

Alarm Period: 1.5-2.5 sec

Alarm Output: NC/NO, 30VDC, 0.2A

Pulse4 Count: 2/3 selectable

RFI Immunity: 25V/m average

Tamper: NC, open trigger

Temperature Range: -20°C to 60°C

Dimensions: 100 x 60 x 42mm

Details

Products specifications

Warranty 5 Years

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
Accessories
Wall bracket to suit the S 5314A PIR detector
S5313A

Wall Bracket to Suit Passive Infra Red (PIR) Movement Detector

Wall bracket to suit the S 5314A PIR detector
$5.91
