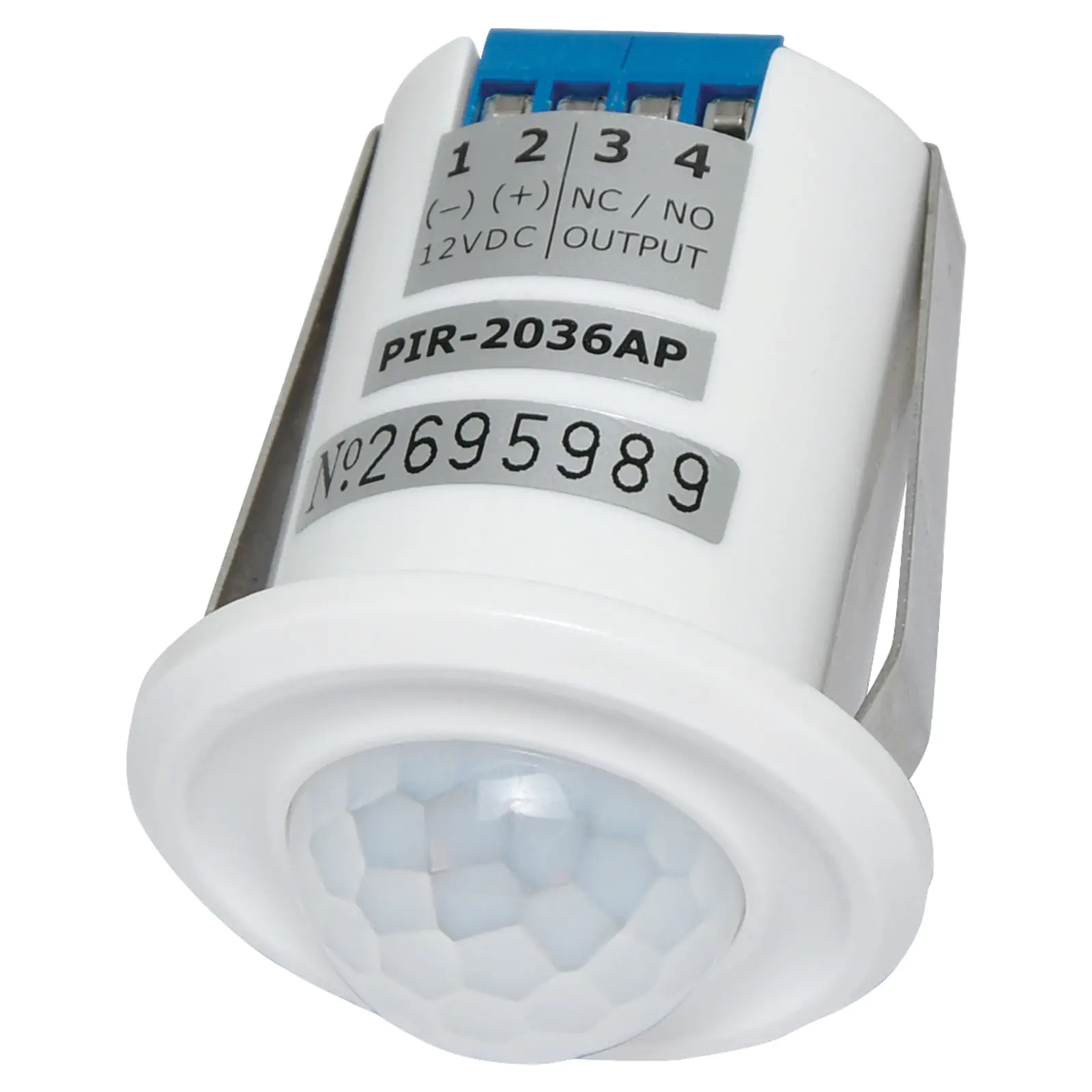

Passive Infra-Red (PIR) 360&deg In-Ceiling Detector

SKU: S5315
An ultra compact PIR motion detection unit suitable for installation directly into the ceiling. 120° beam provides 6-8 metres of conical detection coverage when mounted on the typical 2.4-3m ceiling. 12V DC input. Mounting hole size: 31mm. Dimensions: 40Ø x 52mm.
$59.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $59.09
4+ $53.18
6+ $47.27
i h

Overview

An ultra compact PIR motion detection unit suitable for installation directly into the ceiling. 120° beam provides 8 metres of conical detection coverage when mounted on the typical 2.4-3m ceiling. 12V DC input. Mounting hole size: 31mm. Dimensions: 40Ø x 52mm.





Specifications:



Operation Voltage: 12VDC Nominal, 8-16VDC

Current Consumption: 15mA Typical at 12VDC

Power-up Delay: 2 Minutes with LED Indication

Detection Range: 6/8M at 25°C

Alarm Output Time: 3 Seconds

Operation Temperature : -10°C C to 55°C

Relative Humidity: 95% Non-condensing

Weight: 30gm net



Features

  • High-Quality Low Noise Quad-Element Pyro-Sensor with 6-14µM Spectral
  • Alternate Polarity Single / Dual Pulse Counting Signal Processor
  • Security Control Logics Integrated in Proprietary MCU
  • On-Board DIP Switch for Feature Settings
  • Walk-Test LED Selectable for ON, OFF, or 30-Minute Auto OFF after Power-UP
  • On-Board Terminal Block for External Wiring Connections
  • (N.C.) / (N.O.) Alarm Output Dry Contact in Series with 10 Ohm Resistor
  • Flush-Mount on Ceiling without Screw

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
