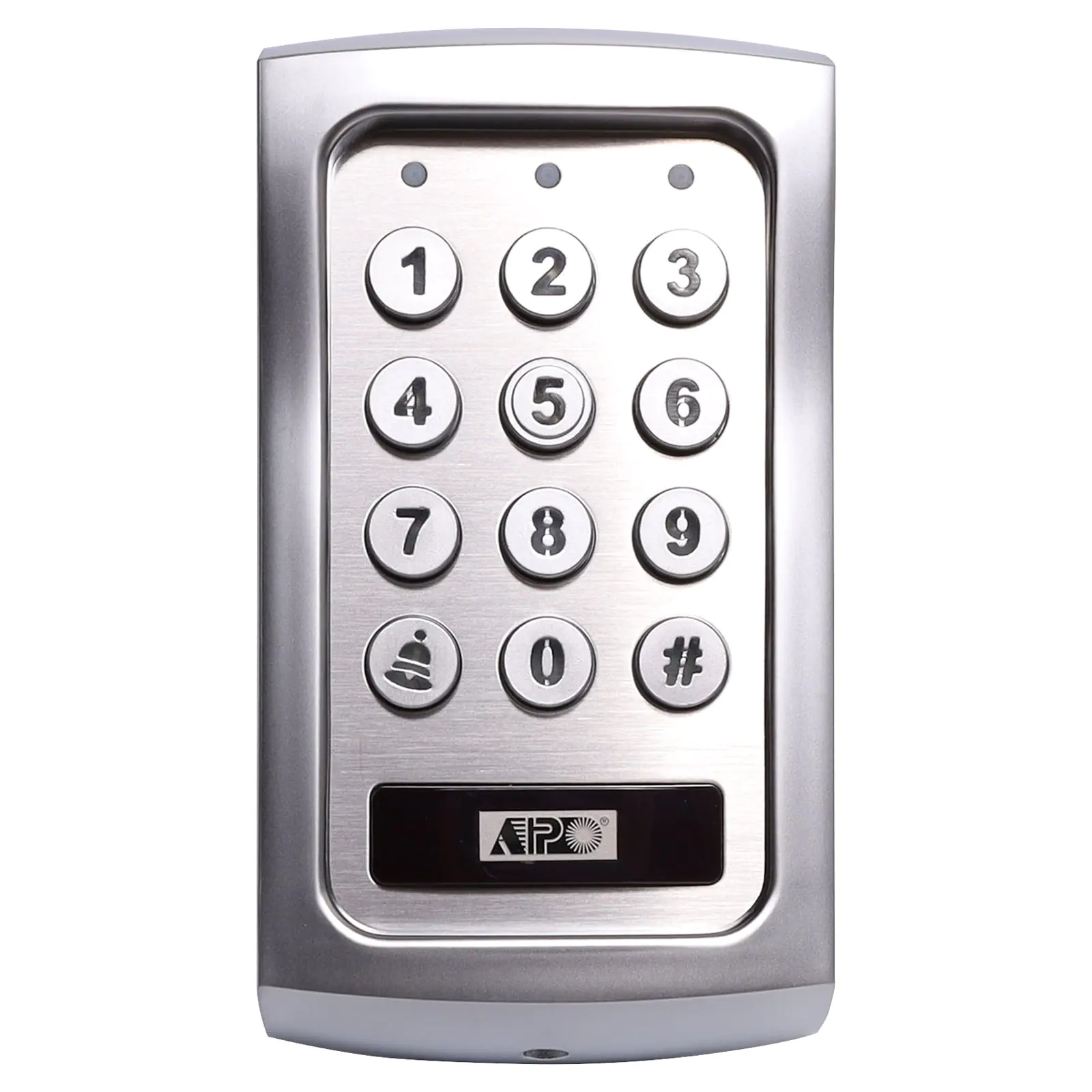

HID (RFID) Vandal Resistant Control Keypad with Card Reader

This weatherproof vandal resistant door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit. This unit also features a door bell ideal for guests and service members. There is two outputs for this unit. Output Relay 1: 2A Rating N.C & N.O. Contacts for Door Lock Actuation Control. Output Relay 2: Controlled by the “BELL” button on the keypad. It operates as long as the bell button is pressed. Use N.O. contact to trigger an optional door chime.

Package Contains:

1 x Keypad

2 x EM Cards

1 x Mounting Screw Pack

1 x Centre Pin Torx Screw Wrench

1 x User Manual

Specifications:

Operating Voltage: 12-24V DC, Auto Adjusting

Operating Current:

62mA (quiescent) to 130mA@12V DC

30mA (quiescent) to 61mA@24V DC

Storage and Operation Temperature: -20°C to + 70°C

Storage and Operation Humidity: 5-95% relative humidity non-condensing

Working Environment & Ingress Protection: all weather, IP 65

Number of Users: 1,000 (Codes and/or Cards) + 50 Duress Codes

Proximity Card: Standard EM Card or Keyfob, 125KHz, Manchester 64bit

Number of Visitor Codes: 50, programmable for one time or with time limit

Timings for Code Entry and Card Reading:

10 seconds waiting for next digit entry

30 seconds waiting for code entry after card reading

Timers: 1-99, 999 seconds (over 24 hours possible) Independent Programmable Timers for O/P 1&2

Egress Button: Programmable for Instant, Delay with Warning

Momentary or Holding contact for Exit Delay

Input Sensing Terminals: a) Door Position, b) Egress, c) O/P 1 inhibit

Output Control Terminals: Transistor Open Collector 24V DC/100mA sink max for the following outputs a) Duress, b) Alarm Output, c) Inter-lock

Output Contact Ratings:

Output Relay 1 - N.C. & N.O. dry contacts, 2A/24V DC Max

Output Relay 2 (Bell Only) - N.C. & N.O. dry contacts, 2A/24V DC Max

Tamper Switch - N.C. dry contact, 50mA/24V DC Max

Dimensions: 144 x 78 x 29/32mm

Weight: 380g net

Housing: Die-cast Zinc Alloy Protection Bracket

Faceplate Material: Stainless Steel

Features:

• Weather resistant design (IP65)
• Vandal resistant
• Compatible with 125KHz 64-bit EM cards & key fobs
• Built-in logics for stand alone, split-decoded and multi-station operations
• Controls “Going In” with user codes/cards
• “Going Out” with feature programmable egress button
• Door Bell for guests/service persons /tradesmen
• Stainless steel faceplate combines with die-casting metal back-lit key buttons
• Die-Cast Zinc Alloy Protection Bracket for Surface Mount
