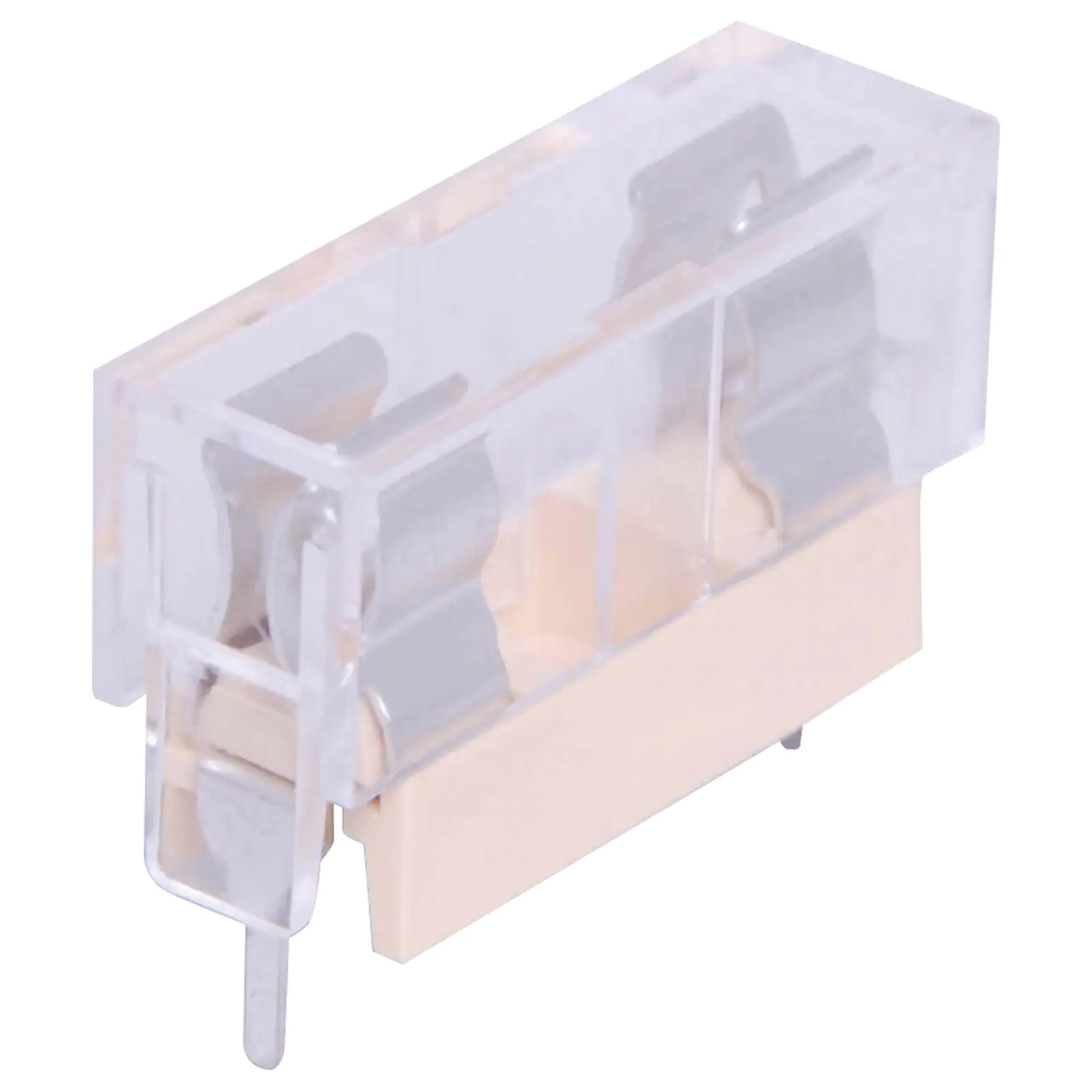

M205 6.3A PCB Mount Covered Fuse Holder

SKU: S5985
PCB mount with protective cover. 6.3 amps at 250V AC. 1.2mm PC pins at 23mm between centres
$1.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.18
10+ $1.09
25+ $1.00
i h

Overview

PCB mount with protective cover. 6.3 amps at 250V AC. 1.2mm Ø PC pins at 23mm between centres







Specifications:



Insertion & Extraction Force: 1Kg.Min.

Dielectric Strength For 60 Sec: AC2000V Min.

Suitable Rated Current: 6.3A @ 250V

Insulation Resistance At 500VDC: 100MΩ Min

Temperature Rise: 60°C Max.

Voltage Drop: 15mV Max.



Features:

  • Use UL Approved Materials
  • Low Cost
  • Low Contact Resistance
  • Flame Retardant

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
