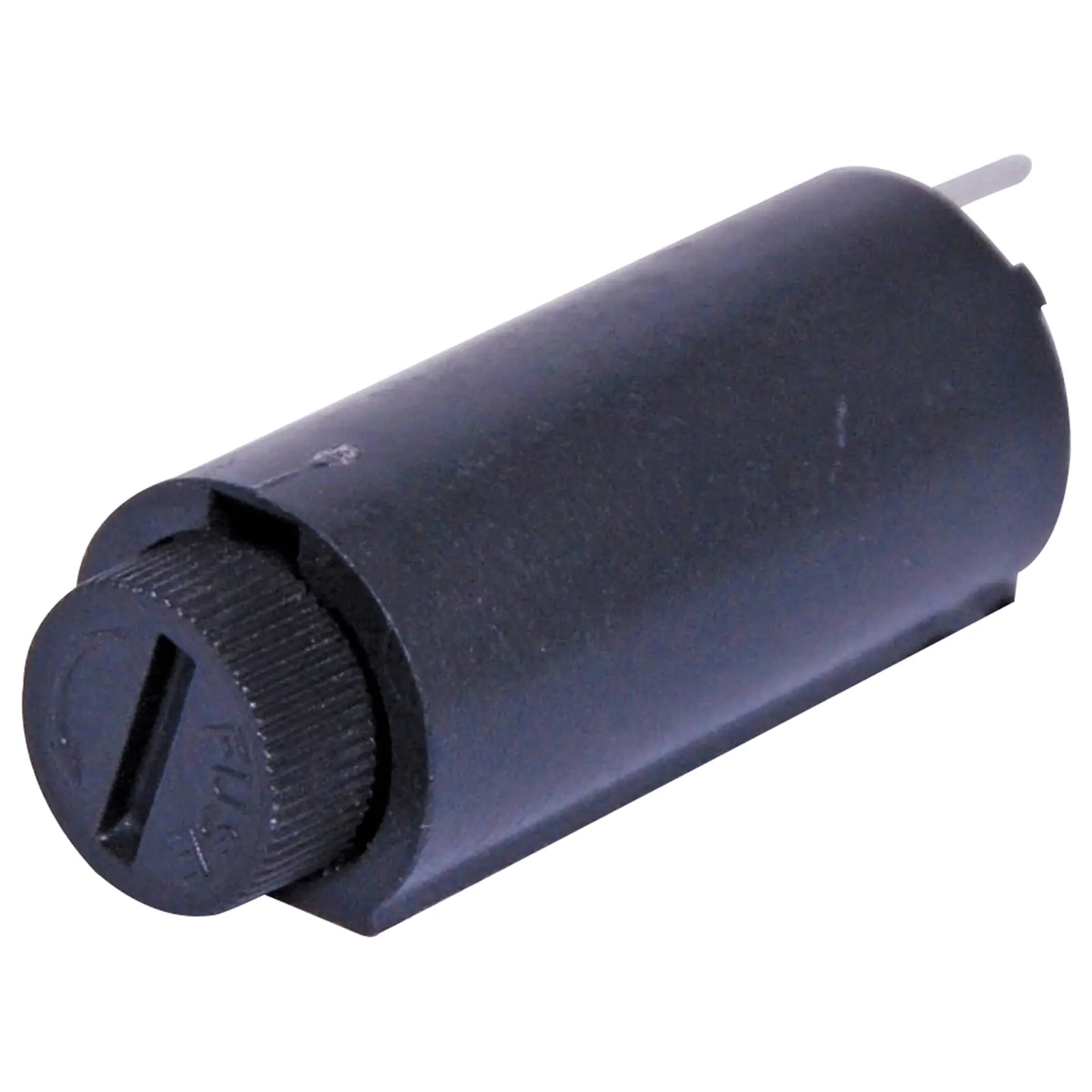

M205 10A Vertical PCB Mount Fuse Holder

SKU: S5986
PCB mount with screw cover. 10 Amps at 250V AC. 1.3mm PC pins at 10mm between centres.
$3.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.36
10+ $2.73
25+ $2.41
i h

Overview

PCB mount with bayonet cover.





Specifications:



Rated Current: 10A 250V.

Insulation Resistance：100MOhm Min (at 500V DC)

Contact Resistance: 5mOhm (at 1A DC)

Dielectric Strength for 60 Seconds: AC 1000V Min

Insulating Body: Flame retarding UL 94 V0 thermoplastic material

Storage conditions: The recommended storage temperature 25℃(+5℃, -10℃), relative humidity 40%RH(+20%RH,

-20%RH)



Details

Products specifications

Warranty 12 Months
